C# XOR(开发者用法)

在 C# 中处理 PDF 时,安全性和数据操作是重要的考量。 一种用于轻量级加密和数据转换的有效技术是按位异或运算。 该技术广泛用于逻辑操作、数据混淆和水印。

IronPDF 是一个用于处理 PDF 的强大 C# 库,允许开发人员将按位逻辑运算符集成到 PDF 工作流程中。 通过利用逻辑异或运算符,我们可以对 PDF 中的文本、图像和元数据进行转换。

In this guide, we will explore how XOR works, how it interacts with bool operands, and how to apply it in PDF processing with IronPDF.

理解 C# 中的 XOR

什么是 XOR?

XOR(也叫做逻辑异或运算符)在代码中由 ^ 符号表示,是一种进行按位异或运算的二元运算。 它与逻辑或运算符有何不同? 虽然这两个运算符名称相似,但在 XOR 的运算符名称中使用“异或”一词将它们区分开来。 逻辑或运算符更像是一个包含运算,相当于一个与/或运算符,当两个操作数中的一个或两个为真时返回真。

而 XOR 则不同。 这种按位运算符计算布尔值,并且只有在两个操作数中只有一个为真时才返回真。 如果两个选择的结果相同,则返回假。

为了更简化的概述,让我们看看一个展示 XOR 如何工作的真值表:

in1 in2 out
1 0 1
0 1 1
1 1 0
0 0 0

而 OR 像这样工作:

in1 in2 out
1 0 1
0 1 1
1 1 1
0 0 0

例如:

// Example demonstrating bitwise XOR operation
byte a = 0b10101010; // 170 in decimal
byte b = 0b11001100; // 204 in decimal
byte result = (byte)(a ^ b); // XOR operation
Console.WriteLine(Convert.ToString(result, 2)); // Output: 01100110
// Example demonstrating bitwise XOR operation
byte a = 0b10101010; // 170 in decimal
byte b = 0b11001100; // 204 in decimal
byte result = (byte)(a ^ b); // XOR operation
Console.WriteLine(Convert.ToString(result, 2)); // Output: 01100110
' Example demonstrating bitwise XOR operation
Dim a As Byte = &B10101010 ' 170 in decimal
Dim b As Byte = &B11001100 ' 204 in decimal
Dim result As Byte = CByte(a Xor b) ' XOR operation
Console.WriteLine(Convert.ToString(result, 2)) ' Output: 01100110
$vbLabelText   $csharpLabel

在布尔表达式中,XOR 可以应用于布尔操作数:

// Example demonstrating logical XOR operation with bools
bool a = true;
bool b = false;
bool result = a ^ b; // Logical XOR operator
Console.WriteLine(result); // Output: True
// Example demonstrating logical XOR operation with bools
bool a = true;
bool b = false;
bool result = a ^ b; // Logical XOR operator
Console.WriteLine(result); // Output: True
' Example demonstrating logical XOR operation with bools
Dim a As Boolean = True
Dim b As Boolean = False
Dim result As Boolean = a Xor b ' Logical XOR operator
Console.WriteLine(result) ' Output: True
$vbLabelText   $csharpLabel

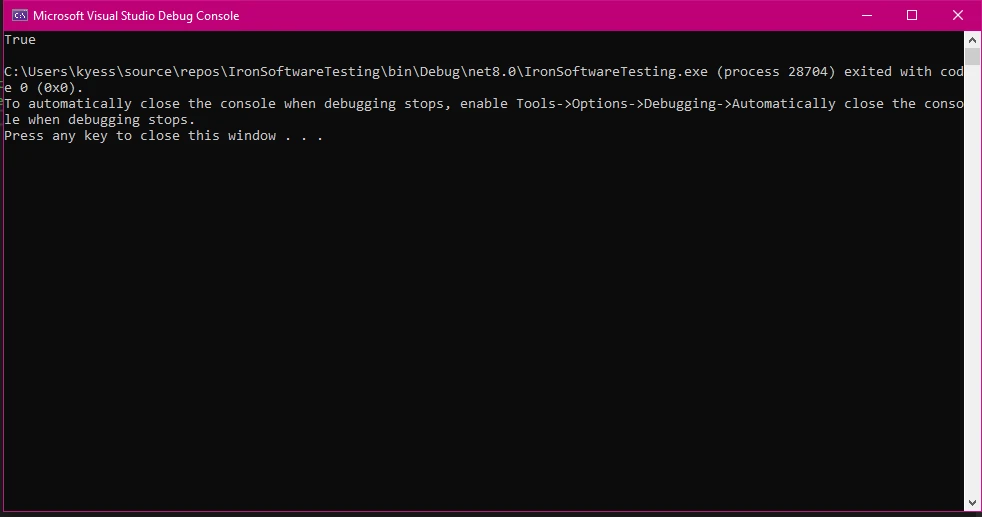

在这里,我们执行按位运算来比较两个操作数。 右操作数与左操作数不同,确保输出为真。 如果第二个操作数与第一个操作数相同,我们会看到假。

运算符优先级与 XOR

按位 XOR 运算比算术运算符的优先级低,但高于按位求补(~)和逻辑非(!)。

例如:

// Example demonstrating operator precedence
int x = 5 ^ 2 + 3;
Console.WriteLine(x); // Output: 0
// Example demonstrating operator precedence
int x = 5 ^ 2 + 3;
Console.WriteLine(x); // Output: 0
' Example demonstrating operator precedence
Dim x As Integer = 5 Xor 2 + 3
Console.WriteLine(x) ' Output: 0
$vbLabelText   $csharpLabel

C# 中的运算符优先级

  • +(加法)比 ^(按位 XOR)拥有更高的优先级。

  • 这意味着表达式按如下方式计算:

    int x = 5 ^ (2 + 3); // Equivalent to 5 ^ 5
    int x = 5 ^ (2 + 3); // Equivalent to 5 ^ 5
    Dim x As Integer = 5 Xor (2 + 3) ' Equivalent to 5 ^ 5
    $vbLabelText   $csharpLabel
    • 现在,计算按位 XOR
    5  = 00000101
    5  = 00000101
    -------------
    XOR = 00000000  (Decimal 0)
  • 最终结果: 0。

XOR 的 PDF 安全性和处理

在 PDF 中使用 XOR 进行基本加密

因为 XOR 可以用相同的操作编码和解码数据,它通常用于轻量级加密。 虽然与 AES 加密相比它并不是一个强有力的安全措施,但它提供了一种快速混淆 PDF 内容的方式。

XOR 用于图像可见性切换

XOR can be used to dynamically toggle the visibility of image-based stamps and watermarks. 例如,可以使用 XOR 对水印进行编码,仅在已知密钥应用时可见。 同样的方法也可以应用于基于文字的水印和印章。

XOR 在元数据混淆中

PDF 元数据通常包含敏感细节,如文档作者、创建日期和其他标识符。 XOR 可以应用于元数据字段,使其在未解码时不可读。

在 C# 中使用 IronPDF 实现 XOR

基于 XOR 的 PDF 文本处理

在将文本插入 PDF 之前应用 XOR 可以提供一种基本的混淆形式。 在以下示例中,我们仔细看看此过程中的代码。

示例:在 IronPDF 中使用 XOR 编码和解码文本

using IronPdf;
using System;
using System.Text;

class Program
{
    // Function to encrypt and decrypt text using XOR
    static string XorEncryptDecrypt(string text, char key)
    {
        StringBuilder output = new StringBuilder();
        foreach (char c in text)
        {
            output.Append((char)(c ^ key)); // XOR operation
        }
        return output.ToString();
    }

    static void Main()
    {
        var text = "Confidential Information";
        char key = 'X'; // Simple XOR key
        string encodedText = XorEncryptDecrypt(text, key); // Encrypt text
        var pdf = new PdfDocument(270, 270); // Create a new PDF document
        pdf.DrawText(encodedText, FontTypes.TimesNewRoman.Name, FontSize: 40,
            PageIndex: 0, X: 150, Y: 300, Color.Black, Rotation: 0); // Draw the text
        pdf.SaveAs("XorEncoded.pdf"); // Save the PDF
        Console.WriteLine("PDF with XOR-encoded text created.");
    }
}
using IronPdf;
using System;
using System.Text;

class Program
{
    // Function to encrypt and decrypt text using XOR
    static string XorEncryptDecrypt(string text, char key)
    {
        StringBuilder output = new StringBuilder();
        foreach (char c in text)
        {
            output.Append((char)(c ^ key)); // XOR operation
        }
        return output.ToString();
    }

    static void Main()
    {
        var text = "Confidential Information";
        char key = 'X'; // Simple XOR key
        string encodedText = XorEncryptDecrypt(text, key); // Encrypt text
        var pdf = new PdfDocument(270, 270); // Create a new PDF document
        pdf.DrawText(encodedText, FontTypes.TimesNewRoman.Name, FontSize: 40,
            PageIndex: 0, X: 150, Y: 300, Color.Black, Rotation: 0); // Draw the text
        pdf.SaveAs("XorEncoded.pdf"); // Save the PDF
        Console.WriteLine("PDF with XOR-encoded text created.");
    }
}
Imports IronPdf
Imports System
Imports System.Text

Friend Class Program
	' Function to encrypt and decrypt text using XOR
	Private Shared Function XorEncryptDecrypt(ByVal text As String, ByVal key As Char) As String
		Dim output As New StringBuilder()
		For Each c As Char In text
			output.Append(ChrW(AscW(c) Xor AscW(key))) ' XOR operation
		Next c
		Return output.ToString()
	End Function

	Shared Sub Main()
		Dim text = "Confidential Information"
		Dim key As Char = "X"c ' Simple XOR key
		Dim encodedText As String = XorEncryptDecrypt(text, key) ' Encrypt text
		Dim pdf = New PdfDocument(270, 270) ' Create a new PDF document
		pdf.DrawText(encodedText, FontTypes.TimesNewRoman.Name, FontSize:= 40, PageIndex:= 0, X:= 150, Y:= 300, Color.Black, Rotation:= 0) ' Draw the text
		pdf.SaveAs("XorEncoded.pdf") ' Save the PDF
		Console.WriteLine("PDF with XOR-encoded text created.")
	End Sub
End Class
$vbLabelText   $csharpLabel

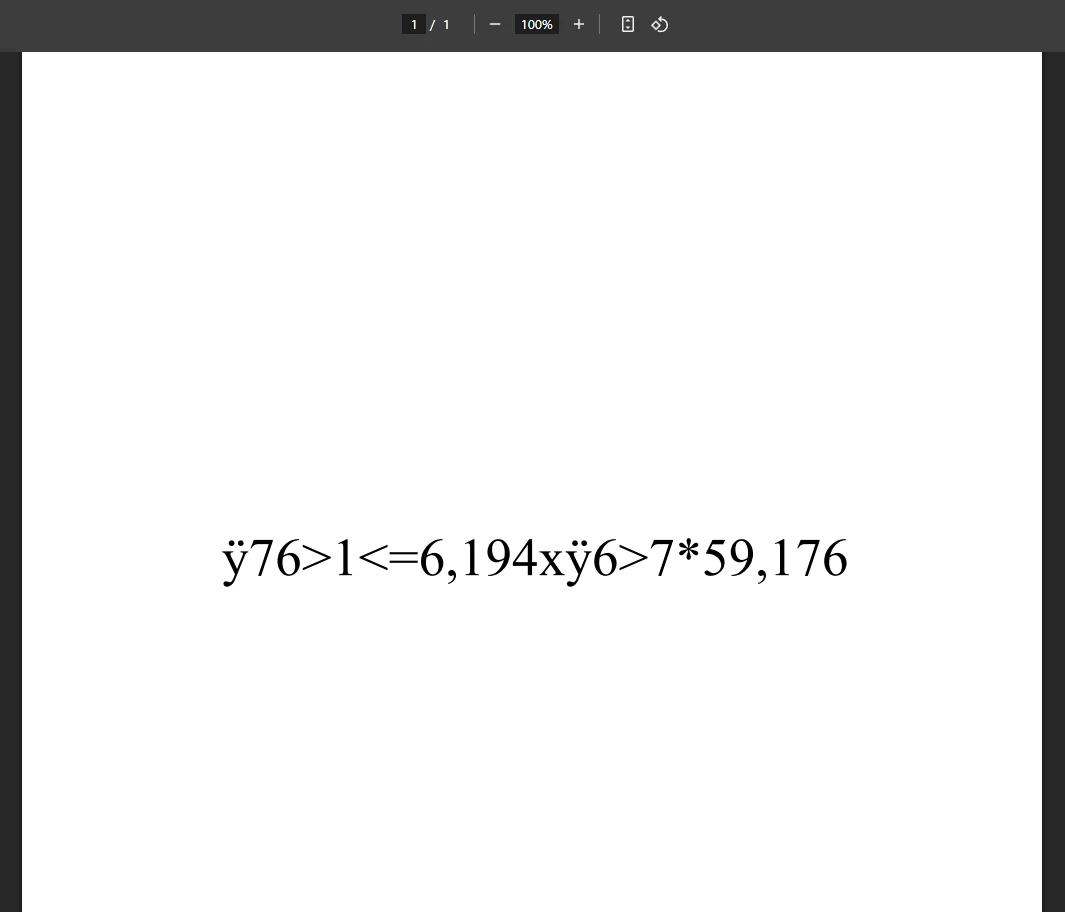

在这里,XOR 函数被用来混淆文本,在插入 PDF 之前。 同样的函数可以通过再次应用 XOR 和相同的密钥来解密它。

XOR 用于 PDF 图像操作

XOR 也可以应用于嵌入 PDF 之前的图像,改变其像素值,使它们仅在解码时可见。

示例:在插入 PDF 之前对图像像素应用 XOR

using IronPdf;
using IronPdf.Editing;
using System;
using System.Drawing;

class Program
{
    // Function to XOR image pixels
    static Bitmap XorImage(Bitmap image, byte key)
    {
        for (int y = 0; y < image.Height; y++)
        {
            for (int x = 0; x < image.Width; x++)
            {
                // Apply XOR operation to each color channel except alpha
                Color pixel = image.GetPixel(x, y);
                Color newPixel = Color.FromArgb(pixel.A, pixel.R ^ key, pixel.G ^ key, pixel.B ^ key);
                image.SetPixel(x, y, newPixel); // Set the new pixel value
            }
        }
        return image;
    }

    static void Main()
    {
        var pdf = new PdfDocument(270, 270);
        Bitmap image = new Bitmap("example_image.png");
        Bitmap encodedImage = XorImage(image, 0x55);
        encodedImage.Save("XorImage.png");
        ImageStamper imageStamp = new ImageStamper("XorImage.png")
        {
            VerticalAlignment = VerticalAlignment.Middle,
        };
        pdf.SaveAs("XorImagePDF.pdf");
        Console.WriteLine("PDF with XOR-modified image created.");
    }
}
using IronPdf;
using IronPdf.Editing;
using System;
using System.Drawing;

class Program
{
    // Function to XOR image pixels
    static Bitmap XorImage(Bitmap image, byte key)
    {
        for (int y = 0; y < image.Height; y++)
        {
            for (int x = 0; x < image.Width; x++)
            {
                // Apply XOR operation to each color channel except alpha
                Color pixel = image.GetPixel(x, y);
                Color newPixel = Color.FromArgb(pixel.A, pixel.R ^ key, pixel.G ^ key, pixel.B ^ key);
                image.SetPixel(x, y, newPixel); // Set the new pixel value
            }
        }
        return image;
    }

    static void Main()
    {
        var pdf = new PdfDocument(270, 270);
        Bitmap image = new Bitmap("example_image.png");
        Bitmap encodedImage = XorImage(image, 0x55);
        encodedImage.Save("XorImage.png");
        ImageStamper imageStamp = new ImageStamper("XorImage.png")
        {
            VerticalAlignment = VerticalAlignment.Middle,
        };
        pdf.SaveAs("XorImagePDF.pdf");
        Console.WriteLine("PDF with XOR-modified image created.");
    }
}
Imports IronPdf
Imports IronPdf.Editing
Imports System
Imports System.Drawing

Friend Class Program
	' Function to XOR image pixels
	Private Shared Function XorImage(ByVal image As Bitmap, ByVal key As Byte) As Bitmap
		For y As Integer = 0 To image.Height - 1
			For x As Integer = 0 To image.Width - 1
				' Apply XOR operation to each color channel except alpha
				Dim pixel As Color = image.GetPixel(x, y)
				Dim newPixel As Color = Color.FromArgb(pixel.A, pixel.R Xor key, pixel.G Xor key, pixel.B Xor key)
				image.SetPixel(x, y, newPixel) ' Set the new pixel value
			Next x
		Next y
		Return image
	End Function

	Shared Sub Main()
		Dim pdf = New PdfDocument(270, 270)
		Dim image As New Bitmap("example_image.png")
		Dim encodedImage As Bitmap = XorImage(image, &H55)
		encodedImage.Save("XorImage.png")
		Dim imageStamp As New ImageStamper("XorImage.png") With {.VerticalAlignment = VerticalAlignment.Middle}
		pdf.SaveAs("XorImagePDF.pdf")
		Console.WriteLine("PDF with XOR-modified image created.")
	End Sub
End Class
$vbLabelText   $csharpLabel

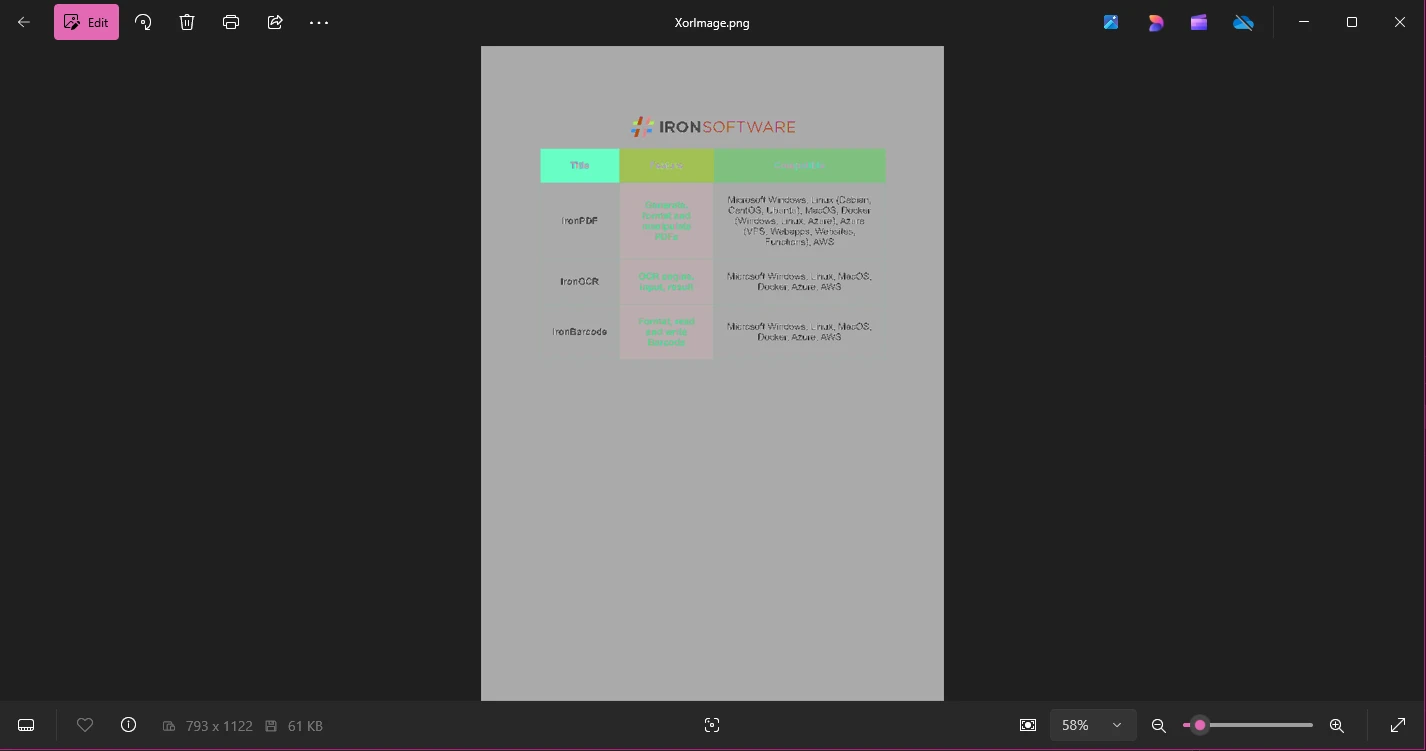

此方法使用 XOR 修改像素颜色,确保图像除非使用正确的密钥解码,否则显示为混乱。

XOR 用于 PDF 元数据处理

PDF 元数据通常包含可能需要混淆的重要信息。 XOR 可以应用于元数据字段,使其在没有解密密钥的情况下不可读。

示例:PDF 元数据字段的 XOR 加密

using IronPdf;
using System;
using System.Text;

class Program
{
    // Function to encrypt and decrypt metadata using XOR
    static string XorEncryptDecrypt(string input, char key)
    {
        StringBuilder output = new StringBuilder();
        foreach (char c in input)
        {
            output.Append((char)(c ^ key)); // XOR operation
        }
        return output.ToString();
    }

    static void Main()
    {
        var pdf = new PdfDocument(270, 270);
        // Apply XOR to obfuscate metadata
        pdf.MetaData.Author = XorEncryptDecrypt("John Doe", 'K');
        pdf.MetaData.Title = XorEncryptDecrypt("Confidential Report", 'K');
        pdf.SaveAs("XorMetadata.pdf");
        Console.WriteLine("PDF with XOR-encoded metadata created.");
    }
}
using IronPdf;
using System;
using System.Text;

class Program
{
    // Function to encrypt and decrypt metadata using XOR
    static string XorEncryptDecrypt(string input, char key)
    {
        StringBuilder output = new StringBuilder();
        foreach (char c in input)
        {
            output.Append((char)(c ^ key)); // XOR operation
        }
        return output.ToString();
    }

    static void Main()
    {
        var pdf = new PdfDocument(270, 270);
        // Apply XOR to obfuscate metadata
        pdf.MetaData.Author = XorEncryptDecrypt("John Doe", 'K');
        pdf.MetaData.Title = XorEncryptDecrypt("Confidential Report", 'K');
        pdf.SaveAs("XorMetadata.pdf");
        Console.WriteLine("PDF with XOR-encoded metadata created.");
    }
}
Imports IronPdf
Imports System
Imports System.Text

Friend Class Program
	' Function to encrypt and decrypt metadata using XOR
	Private Shared Function XorEncryptDecrypt(ByVal input As String, ByVal key As Char) As String
		Dim output As New StringBuilder()
		For Each c As Char In input
			output.Append(ChrW(AscW(c) Xor AscW(key))) ' XOR operation
		Next c
		Return output.ToString()
	End Function

	Shared Sub Main()
		Dim pdf = New PdfDocument(270, 270)
		' Apply XOR to obfuscate metadata
		pdf.MetaData.Author = XorEncryptDecrypt("John Doe", "K"c)
		pdf.MetaData.Title = XorEncryptDecrypt("Confidential Report", "K"c)
		pdf.SaveAs("XorMetadata.pdf")
		Console.WriteLine("PDF with XOR-encoded metadata created.")
	End Sub
End Class
$vbLabelText   $csharpLabel

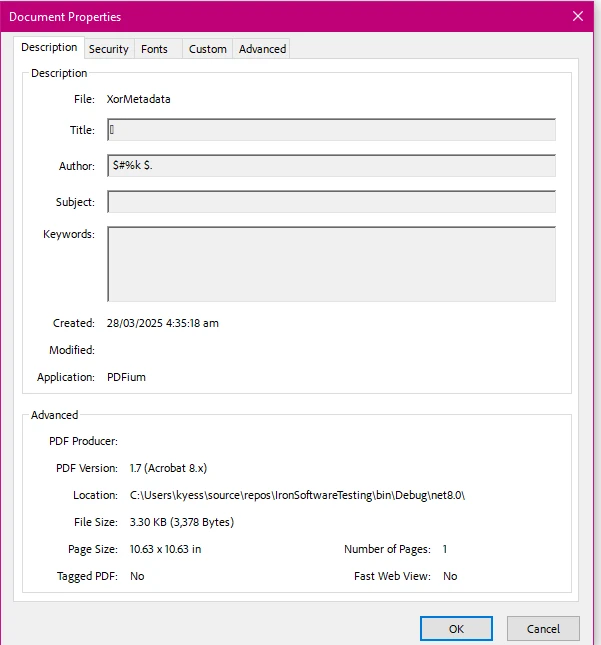

在此,元数据字段被 XOR 加密,防止轻易访问敏感信息。

最佳实践和限制

何时在 PDF 处理中使用 XOR

  • 文本、图像和元数据的轻量级混淆
  • 简单的水印技术
  • 在不需要高安全性的情况下进行基本加密

安全性考虑与替代方案

  • XOR 不是一种强加密方法,不应用于保护高度敏感的信息。
  • 对于更强的安全性,请考虑 AES 加密或 PDF 密码保护功能。

大型 PDF 的性能考虑

  • 对大 PDF 文件,尤其是图像,进行 XOR 运算可能会影响性能。
  • 考虑优化通过将 XOR 应用于选择性元素而不是整个 PDF。

结论

XOR 是一种简单而有效的技术,用于 PDF 中的按位逻辑操作、水印和元数据处理。 通过对文本、图像和元数据应用 XOR 转换,开发人员可以创建可逆混淆的 PDF。 但是,对于更高的安全需求,应使用更强的加密方法。

通过理解 C# 中的按位逻辑运算符、运算符优先级和布尔表达式的工作原理,开发人员可以在各种实际应用中有效利用 IronPDF 中的 XOR。 还没有 IronPDF 吗? Tryoutthe free trial to see how IronPDF can take your PDF projects to the next level today!

常见问题解答

如何在 C# 中使用 XOR 对 PDF 数据进行混淆?

XOR 可以通过改变 PDF 中的文本、图像和元数据来实现数据混淆。使用 IronPDF,开发人员可以在 C# 中集成 XOR 操作,使这些元素在没有正确解密密钥的情况下无法阅读,实现轻量级加密。

使用 XOR 进行 PDF 图像操作的好处是什么?

XOR 通过修改像素值实现 PDF 图像的动态可见性控制。通过 IronPDF,您可以对图像应用 XOR 创建可逆的混乱效果,并且可以使用相同的 XOR 操作和密钥进行还原。

在 PDF 处理中可以将 XOR 与其他加密方法结合使用吗?

是的,XOR 可以与 AES 等更强的加密方法结合使用,以增强 PDF 处理的安全性。IronPDF 启用 XOR 用于基本混淆,同时为敏感数据补充更强的加密。

XOR 操作如何影响大型 PDF 文件的性能?

将 XOR 应用于大型 PDF 文件可能会影响性能,尤其是在操作图像时。使用 IronPDF,建议选择性地应用 XOR,以避免显著的性能下降。

XOR 是加密 PDF 元数据的安全方法吗?

XOR 为 PDF 元数据提供基本的混淆,使其在没有解密密钥的情况下不可读。然而,它对于有决心的攻击并不安全,应该对敏感数据补充更强的加密方法。

如果 XOR 操作在 C# 中未按预期工作,常见的故障排除步骤是什么?

确保使用正确的 XOR 密钥进行编码和解码操作。验证 IronPDF 是否已正确集成到您的 C# 应用中,并检查代码中涉及 XOR 操作的语法错误。

XOR 与 C# 中的逻辑 OR 有何不同?

XOR 操作仅在完全一个操作数为真时返回真,而逻辑 OR 操作则在至少一个操作数为真时返回真。XOR 是排他的,意味着两个操作数不能同时为真。

XOR 可以用于 PDF 的水印吗?

是的,可以通过改变图像像素值或文本来创建可见的水印效果。使用 IronPDF,在 C# 中可以应用这些更改,并且可以通过正确的 XOR 密钥进行还原。

Curtis Chau
技术作家

Curtis Chau 拥有卡尔顿大学的计算机科学学士学位,专注于前端开发,精通 Node.js、TypeScript、JavaScript 和 React。他热衷于打造直观且美观的用户界面,喜欢使用现代框架并创建结构良好、视觉吸引力强的手册。

除了开发之外,Curtis 对物联网 (IoT) 有浓厚的兴趣,探索将硬件和软件集成的新方法。在空闲时间,他喜欢玩游戏和构建 Discord 机器人,将他对技术的热爱与创造力相结合。
