C# XOR(开发者用法)
在 C# 中处理 PDF 时,安全性和数据操作是重要的考量。 一种用于轻量级加密和数据转换的有效技术是按位异或运算。 该技术广泛用于逻辑操作、数据混淆和水印。
IronPDF 是一个用于处理 PDF 的强大 C# 库,允许开发人员将按位逻辑运算符集成到 PDF 工作流程中。 通过利用逻辑异或运算符,我们可以对 PDF 中的文本、图像和元数据进行转换。
在本指南中,我们将探讨 XOR 的工作原理,它如何与布尔操作数交互,以及如何在使用 IronPDF 的 PDF 处理中应用它。
理解 C# 中的 XOR
什么是 XOR?
XOR(又称逻辑异或运算符)在代码中用 ^ 符号表示,是一种按位异或运算的二进制运算。 它与逻辑或运算符有何不同? 虽然这两个运算符名称相似,但在 XOR 的运算符名称中使用"异或"一词将它们区分开来。 逻辑或运算符更像是一个包含运算,相当于一个与/或运算符,当两个操作数中的一个或两个为真时返回真。
而 XOR 则不同。 这种按位运算符计算布尔值,并且只有在两个操作数中只有一个为真时才返回真。 如果两个选择的结果相同,则返回假。
为了更简化的概述,让我们看看一个展示 XOR 如何工作的真值表:
| in1 | in2 | out |
|---|---|---|
| 1 | 0 | 1 |
| 0 | 1 | 1 |
| 1 | 1 | 0 |
| 0 | 0 | 0 |
而 OR 像这样工作:
| in1 | in2 | out |
|---|---|---|
| 1 | 0 | 1 |
| 0 | 1 | 1 |
| 1 | 1 | 1 |
| 0 | 0 | 0 |
例如:
// Example demonstrating bitwise XOR operation
byte a = 0b10101010; // 170 in decimal
byte b = 0b11001100; // 204 in decimal
byte result = (byte)(a ^ b); // XOR operation
Console.WriteLine(Convert.ToString(result, 2)); // Output: 01100110
// Example demonstrating bitwise XOR operation
byte a = 0b10101010; // 170 in decimal
byte b = 0b11001100; // 204 in decimal
byte result = (byte)(a ^ b); // XOR operation
Console.WriteLine(Convert.ToString(result, 2)); // Output: 01100110
' Example demonstrating bitwise XOR operation
Dim a As Byte = &B10101010 ' 170 in decimal
Dim b As Byte = &B11001100 ' 204 in decimal
Dim result As Byte = CByte(a Xor b) ' XOR operation
Console.WriteLine(Convert.ToString(result, 2)) ' Output: 01100110
在布尔表达式中,XOR 可以应用于布尔操作数:
// Example demonstrating logical XOR operation with bools
bool a = true;
bool b = false;
bool result = a ^ b; // Logical XOR operator
Console.WriteLine(result); // Output: True
// Example demonstrating logical XOR operation with bools
bool a = true;
bool b = false;
bool result = a ^ b; // Logical XOR operator
Console.WriteLine(result); // Output: True
' Example demonstrating logical XOR operation with bools
Dim a As Boolean = True
Dim b As Boolean = False
Dim result As Boolean = a Xor b ' Logical XOR operator
Console.WriteLine(result) ' Output: True

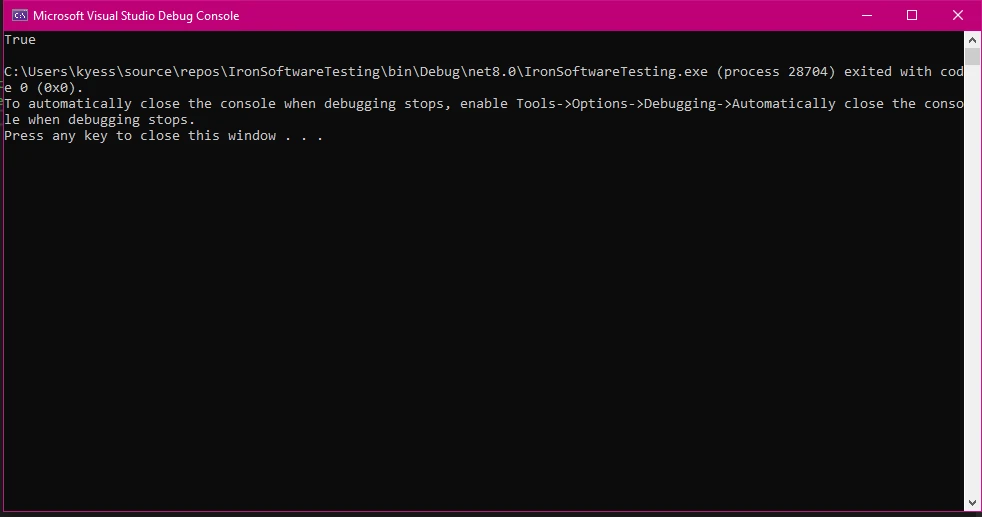

在这里,我们执行按位运算来比较两个操作数。 右操作数与左操作数不同,确保输出为真。 如果第二个操作数与第一个操作数相同,我们会看到假。
运算符优先级与 XOR
按位 XOR 运算比算术运算符的优先级低,但高于按位求补(~)和逻辑非(!)。
例如:
// Example demonstrating operator precedence
int x = 5 ^ 2 + 3;
Console.WriteLine(x); // Output: 0
// Example demonstrating operator precedence
int x = 5 ^ 2 + 3;
Console.WriteLine(x); // Output: 0
' Example demonstrating operator precedence
Dim x As Integer = 5 Xor 2 + 3
Console.WriteLine(x) ' Output: 0
C# 中的运算符优先级
-
+(加法)比 ^(按位 XOR)拥有更高的优先级。
-
这意味着表达式按如下方式计算:
int x = 5 ^ (2 + 3); // Equivalent to 5 ^ 5int x = 5 ^ (2 + 3); // Equivalent to 5 ^ 5Dim x As Integer = 5 Xor (2 + 3) ' Equivalent to 5 ^ 5$vbLabelText $csharpLabel现在,计算按位异或:
5 = 00000101 5 = 00000101 ------------- XOR = 00000000 (Decimal 0) - 最终结果: 0。
XOR 的 PDF 安全性和处理
在 PDF 中使用 XOR 进行基本加密
因为 XOR 可以用相同的操作编码和解码数据,它通常用于轻量级加密。 虽然与 AES 加密相比它并不是一个强有力的安全措施,但它提供了一种快速混淆 PDF 内容的方式。
XOR 用于图像可见性切换
XOR 可以用于动态切换基于图像的印章和水印的可见性。 例如,可以使用 XOR 对水印进行编码,仅在已知密钥应用时可见。 同样的方法也可以应用于基于文字的水印和印章。
XOR 在元数据混淆中
PDF 元数据通常包含敏感细节,如文档作者、创建日期和其他标识符。 XOR 可以应用于元数据字段,使其在未解码时不可读。
在 C# 中结合 IronPDF 实现 XOR
基于 XOR 的 PDF 文本处理
在将文本插入 PDF 之前应用 XOR 可以提供一种基本的混淆形式。 在以下示例中,我们仔细看看此过程中的代码。
示例:在 IronPDF 中使用 XOR 编码和解码文本
using IronPdf;
using System;
using System.Text;
class Program
{
// Function to encrypt and decrypt text using XOR
static string XorEncryptDecrypt(string text, char key)
{
StringBuilder output = new StringBuilder();
foreach (char c in text)
{
output.Append((char)(c ^ key)); // XOR operation
}
return output.ToString();
}
static void Main()
{
var text = "Confidential Information";
char key = 'X'; // Simple XOR key
string encodedText = XorEncryptDecrypt(text, key); // Encrypt text
var pdf = new PdfDocument(270, 270); // Create a new PDF document
pdf.DrawText(encodedText, FontTypes.TimesNewRoman.Name, FontSize: 40,
PageIndex: 0, X: 150, Y: 300, Color.Black, Rotation: 0); // Draw the text
pdf.SaveAs("XorEncoded.pdf"); // Save the PDF
Console.WriteLine("PDF with XOR-encoded text created.");
}
}
using IronPdf;
using System;
using System.Text;
class Program
{
// Function to encrypt and decrypt text using XOR
static string XorEncryptDecrypt(string text, char key)
{
StringBuilder output = new StringBuilder();
foreach (char c in text)
{
output.Append((char)(c ^ key)); // XOR operation
}
return output.ToString();
}
static void Main()
{
var text = "Confidential Information";
char key = 'X'; // Simple XOR key
string encodedText = XorEncryptDecrypt(text, key); // Encrypt text
var pdf = new PdfDocument(270, 270); // Create a new PDF document
pdf.DrawText(encodedText, FontTypes.TimesNewRoman.Name, FontSize: 40,
PageIndex: 0, X: 150, Y: 300, Color.Black, Rotation: 0); // Draw the text
pdf.SaveAs("XorEncoded.pdf"); // Save the PDF
Console.WriteLine("PDF with XOR-encoded text created.");
}
}
Imports IronPdf
Imports System
Imports System.Text
Friend Class Program
' Function to encrypt and decrypt text using XOR
Private Shared Function XorEncryptDecrypt(ByVal text As String, ByVal key As Char) As String
Dim output As New StringBuilder()
For Each c As Char In text
output.Append(ChrW(AscW(c) Xor AscW(key))) ' XOR operation
Next c
Return output.ToString()
End Function
Shared Sub Main()
Dim text = "Confidential Information"
Dim key As Char = "X"c ' Simple XOR key
Dim encodedText As String = XorEncryptDecrypt(text, key) ' Encrypt text
Dim pdf = New PdfDocument(270, 270) ' Create a new PDF document
pdf.DrawText(encodedText, FontTypes.TimesNewRoman.Name, FontSize:= 40, PageIndex:= 0, X:= 150, Y:= 300, Color.Black, Rotation:= 0) ' Draw the text
pdf.SaveAs("XorEncoded.pdf") ' Save the PDF
Console.WriteLine("PDF with XOR-encoded text created.")
End Sub
End Class

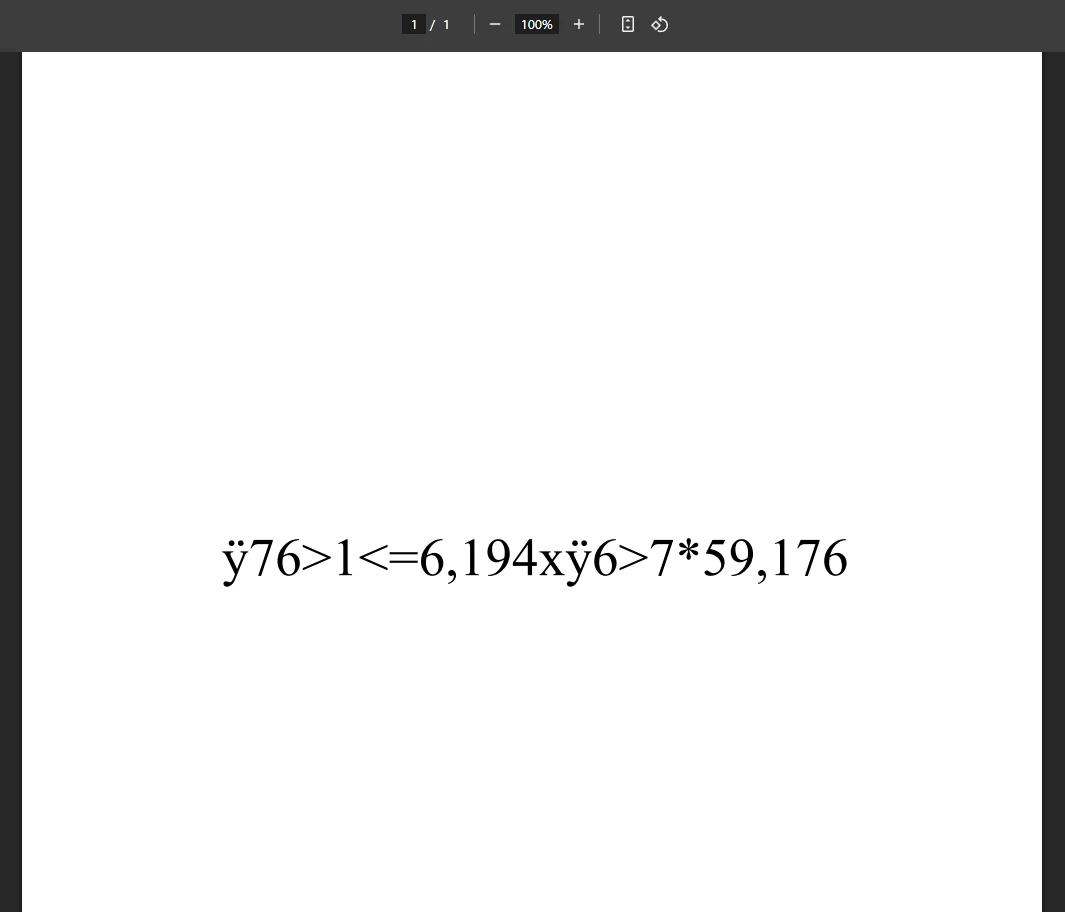

在这里,XOR 函数被用来混淆文本,在插入 PDF 之前。 同样的函数可以通过再次应用 XOR 和相同的密钥来解密它。
XOR 用于 PDF 图像操作
XOR 也可以应用于嵌入 PDF 之前的图像,改变其像素值,使它们仅在解码时可见。
示例:在插入 PDF 之前对图像像素应用 XOR
using IronPdf;
using IronPdf.Editing;
using System;
using System.Drawing;
class Program
{
// Function to XOR image pixels
static Bitmap XorImage(Bitmap image, byte key)
{
for (int y = 0; y < image.Height; y++)
{
for (int x = 0; x < image.Width; x++)
{
// Apply XOR operation to each color channel except alpha
Color pixel = image.GetPixel(x, y);
Color newPixel = Color.FromArgb(pixel.A, pixel.R ^ key, pixel.G ^ key, pixel.B ^ key);
image.SetPixel(x, y, newPixel); // Set the new pixel value
}
}
return image;
}
static void Main()
{
var pdf = new PdfDocument(270, 270);
Bitmap image = new Bitmap("example_image.png");
Bitmap encodedImage = XorImage(image, 0x55);
encodedImage.Save("XorImage.png");
ImageStamper imageStamp = new ImageStamper("XorImage.png")
{
VerticalAlignment = VerticalAlignment.Middle,
};
pdf.SaveAs("XorImagePDF.pdf");
Console.WriteLine("PDF with XOR-modified image created.");
}
}
using IronPdf;
using IronPdf.Editing;
using System;
using System.Drawing;
class Program
{
// Function to XOR image pixels
static Bitmap XorImage(Bitmap image, byte key)
{
for (int y = 0; y < image.Height; y++)
{
for (int x = 0; x < image.Width; x++)
{
// Apply XOR operation to each color channel except alpha
Color pixel = image.GetPixel(x, y);
Color newPixel = Color.FromArgb(pixel.A, pixel.R ^ key, pixel.G ^ key, pixel.B ^ key);
image.SetPixel(x, y, newPixel); // Set the new pixel value
}
}
return image;
}
static void Main()
{
var pdf = new PdfDocument(270, 270);
Bitmap image = new Bitmap("example_image.png");
Bitmap encodedImage = XorImage(image, 0x55);
encodedImage.Save("XorImage.png");
ImageStamper imageStamp = new ImageStamper("XorImage.png")
{
VerticalAlignment = VerticalAlignment.Middle,
};
pdf.SaveAs("XorImagePDF.pdf");
Console.WriteLine("PDF with XOR-modified image created.");
}
}
Imports IronPdf
Imports IronPdf.Editing
Imports System
Imports System.Drawing
Friend Class Program
' Function to XOR image pixels
Private Shared Function XorImage(ByVal image As Bitmap, ByVal key As Byte) As Bitmap
For y As Integer = 0 To image.Height - 1
For x As Integer = 0 To image.Width - 1
' Apply XOR operation to each color channel except alpha
Dim pixel As Color = image.GetPixel(x, y)
Dim newPixel As Color = Color.FromArgb(pixel.A, pixel.R Xor key, pixel.G Xor key, pixel.B Xor key)
image.SetPixel(x, y, newPixel) ' Set the new pixel value
Next x
Next y
Return image
End Function
Shared Sub Main()
Dim pdf = New PdfDocument(270, 270)
Dim image As New Bitmap("example_image.png")
Dim encodedImage As Bitmap = XorImage(image, &H55)
encodedImage.Save("XorImage.png")
Dim imageStamp As New ImageStamper("XorImage.png") With {.VerticalAlignment = VerticalAlignment.Middle}
pdf.SaveAs("XorImagePDF.pdf")
Console.WriteLine("PDF with XOR-modified image created.")
End Sub
End Class

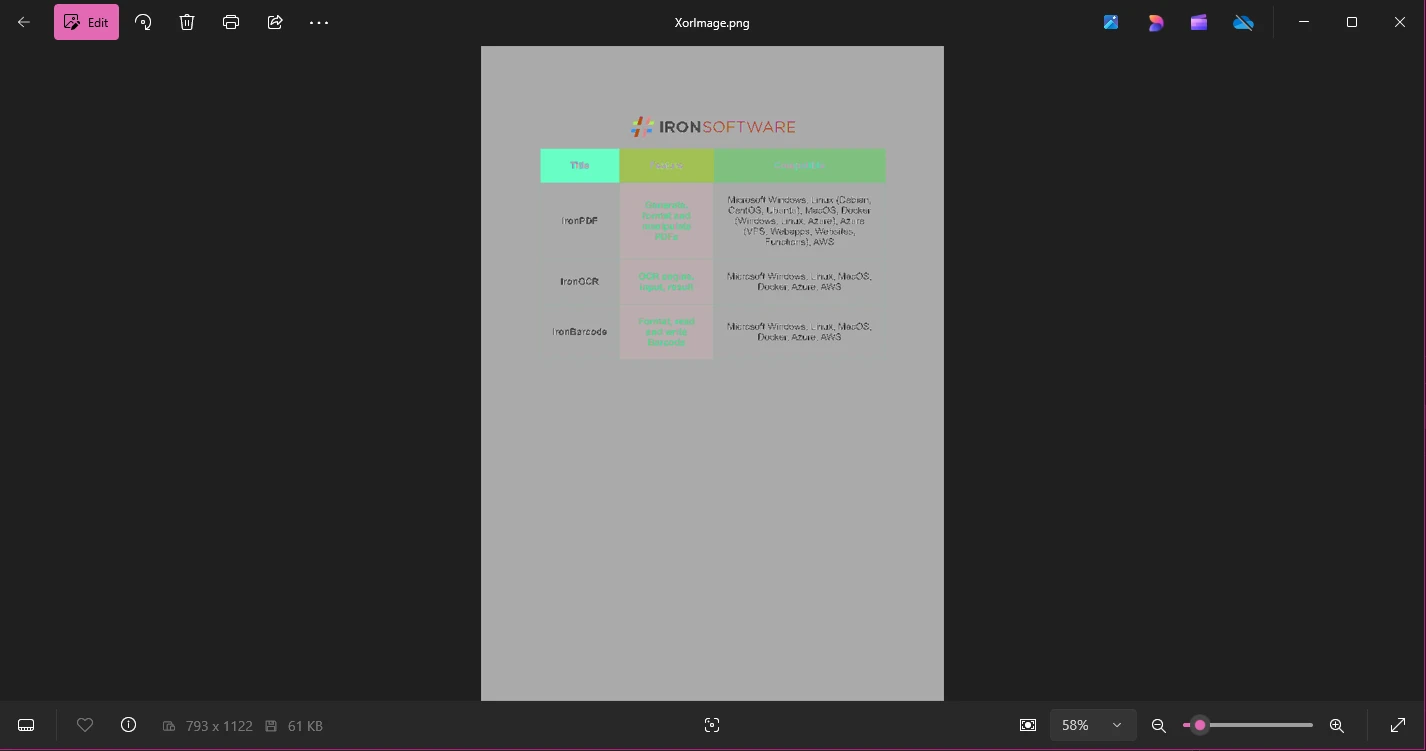

此方法使用 XOR 修改像素颜色,确保图像除非使用正确的密钥解码,否则显示为混乱。
XOR 用于 PDF 元数据处理
PDF 元数据通常包含可能需要混淆的重要信息。 XOR 可以应用于元数据字段,使其在没有解密密钥的情况下不可读。
示例:PDF 元数据字段的 XOR 加密
using IronPdf;
using System;
using System.Text;
class Program
{
// Function to encrypt and decrypt metadata using XOR
static string XorEncryptDecrypt(string input, char key)
{
StringBuilder output = new StringBuilder();
foreach (char c in input)
{
output.Append((char)(c ^ key)); // XOR operation
}
return output.ToString();
}
static void Main()
{
var pdf = new PdfDocument(270, 270);
// Apply XOR to obfuscate metadata
pdf.MetaData.Author = XorEncryptDecrypt("John Doe", 'K');
pdf.MetaData.Title = XorEncryptDecrypt("Confidential Report", 'K');
pdf.SaveAs("XorMetadata.pdf");
Console.WriteLine("PDF with XOR-encoded metadata created.");
}
}
using IronPdf;
using System;
using System.Text;
class Program
{
// Function to encrypt and decrypt metadata using XOR
static string XorEncryptDecrypt(string input, char key)
{
StringBuilder output = new StringBuilder();
foreach (char c in input)
{
output.Append((char)(c ^ key)); // XOR operation
}
return output.ToString();
}
static void Main()
{
var pdf = new PdfDocument(270, 270);
// Apply XOR to obfuscate metadata
pdf.MetaData.Author = XorEncryptDecrypt("John Doe", 'K');
pdf.MetaData.Title = XorEncryptDecrypt("Confidential Report", 'K');
pdf.SaveAs("XorMetadata.pdf");
Console.WriteLine("PDF with XOR-encoded metadata created.");
}
}
Imports IronPdf
Imports System
Imports System.Text
Friend Class Program
' Function to encrypt and decrypt metadata using XOR
Private Shared Function XorEncryptDecrypt(ByVal input As String, ByVal key As Char) As String
Dim output As New StringBuilder()
For Each c As Char In input
output.Append(ChrW(AscW(c) Xor AscW(key))) ' XOR operation
Next c
Return output.ToString()
End Function
Shared Sub Main()
Dim pdf = New PdfDocument(270, 270)
' Apply XOR to obfuscate metadata
pdf.MetaData.Author = XorEncryptDecrypt("John Doe", "K"c)
pdf.MetaData.Title = XorEncryptDecrypt("Confidential Report", "K"c)
pdf.SaveAs("XorMetadata.pdf")
Console.WriteLine("PDF with XOR-encoded metadata created.")
End Sub
End Class

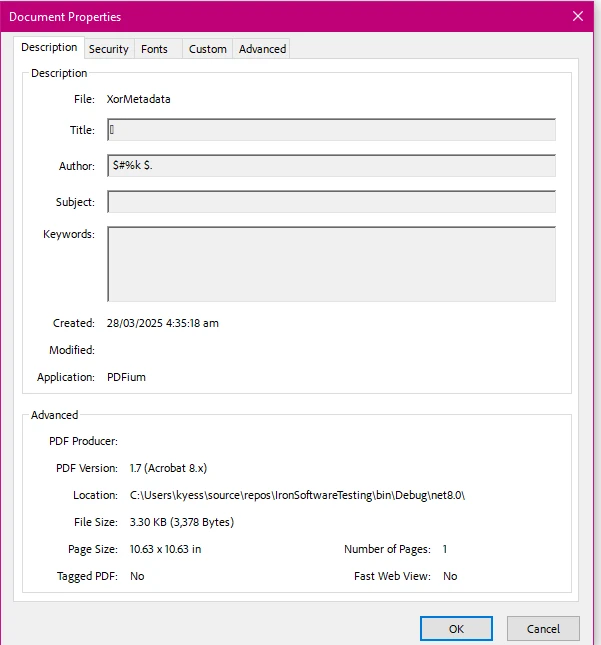

在此,元数据字段被 XOR 加密,防止轻易访问敏感信息。
最佳实践和限制
何时在 PDF 处理中使用 XOR
- 文本、图像和元数据的轻量级混淆
- 简单的水印技术
- 在不需要高安全性的情况下进行基本加密
安全性考虑与替代方案
- XOR 不是一种强加密方法,不应用于保护高度敏感的信息。
- 对于更强的安全性,请考虑 AES 加密或 PDF 密码保护功能。
大型 PDF 的性能考虑
- 对大 PDF 文件,尤其是图像,进行 XOR 运算可能会影响性能。
- 考虑优化通过将 XOR 应用于选择性元素而不是整个 PDF。
结论
XOR 是一种简单而有效的技术,用于 PDF 中的按位逻辑操作、水印和元数据处理。 通过对文本、图像和元数据应用 XOR 转换,开发人员可以创建可逆混淆的 PDF。 但是,对于更高的安全需求,应使用更强的加密方法。
通过理解 C# 中的按位逻辑运算符、运算符优先级和布尔表达式的工作原理,开发人员可以在各种实际应用中有效利用 IronPDF 中的 XOR。 还没有 IronPDF 吗? 试用 免费试用版,看看 IronPDF 如何将您的 PDF 项目提升到新的水平!
常见问题解答
如何在 C# 中使用 XOR 对 PDF 数据进行混淆?
XOR 可以通过改变 PDF 中的文本、图像和元数据来实现数据混淆。使用 IronPDF,开发人员可以在 C# 中集成 XOR 操作,使这些元素在没有正确解密密钥的情况下无法阅读,实现轻量级加密。
使用 XOR 进行 PDF 图像操作的好处是什么?
XOR 通过修改像素值实现 PDF 图像的动态可见性控制。通过 IronPDF,您可以对图像应用 XOR 创建可逆的混乱效果,并且可以使用相同的 XOR 操作和密钥进行还原。
在 PDF 处理中可以将 XOR 与其他加密方法结合使用吗?
是的,XOR 可以与 AES 等更强的加密方法结合使用,以增强 PDF 处理的安全性。IronPDF 启用 XOR 用于基本混淆,同时为敏感数据补充更强的加密。
XOR 操作如何影响大型 PDF 文件的性能?
将 XOR 应用于大型 PDF 文件可能会影响性能,尤其是在操作图像时。使用 IronPDF,建议选择性地应用 XOR,以避免显著的性能下降。
XOR 是加密 PDF 元数据的安全方法吗?
XOR 为 PDF 元数据提供基本的混淆,使其在没有解密密钥的情况下不可读。然而,它对于有决心的攻击并不安全,应该对敏感数据补充更强的加密方法。
如果 XOR 操作在 C# 中未按预期工作,常见的故障排除步骤是什么?
确保使用正确的 XOR 密钥进行编码和解码操作。验证 IronPDF 是否已正确集成到您的 C# 应用中,并检查代码中涉及 XOR 操作的语法错误。
XOR 与 C# 中的逻辑 OR 有何不同?
XOR 操作仅在完全一个操作数为真时返回真,而逻辑 OR 操作则在至少一个操作数为真时返回真。XOR 是排他的,意味着两个操作数不能同时为真。
XOR 可以用于 PDF 的水印吗?
是的,可以通过改变图像像素值或文本来创建可见的水印效果。使用 IronPDF,在 C# 中可以应用这些更改,并且可以通过正确的 XOR 密钥进行还原。
