C# Convert String to Bubble (How it Works for Developers)

Speech bubbles are a great way to highlight text, annotate documents, or create comic-style effects in PDFs. Whether you're adding comments to a report, generating instructional guides, or creating interactive documents, speech bubbles can enhance the readability and visual appeal of your PDFs.

In this article, we'll explore how to convert string variables into a speech bubble in C# using IronPDF. IronPDF is a powerful .NET library that enables easy conversion of HTML and CSS into PDFs, making it ideal for rendering styled speech bubbles dynamically from any given C# string. Let’s dive in!

IronPDF: A Powerful .NET PDF Library

C# Convert String to Bubble (How it Works for Developers): Figure 1

So why IronPDF? IronPDF is a powerful C# library designed to make working with PDF files programmatically a breeze. With it, you can easily generate PDF documents from HTML, images, DOCX files, and more. Or, perhaps you are looking for a tool that can handle PDF security efficiently and effectively or for editing existing PDF documents. Whatever the task, IronPDF has you covered, serving as an all-encompassing library that has a solution to just about any PDF-related task without the need for third-party libraries.

Setting Up the Project

Installing IronPDF

To begin, install IronPDF via NuGet. Open the Package Manager Console in Visual Studio and run:

Install-Package IronPdf

Alternatively, you can install it via the NuGet Package Manager in Visual Studio by searching for IronPDF, and then clicking "Install".

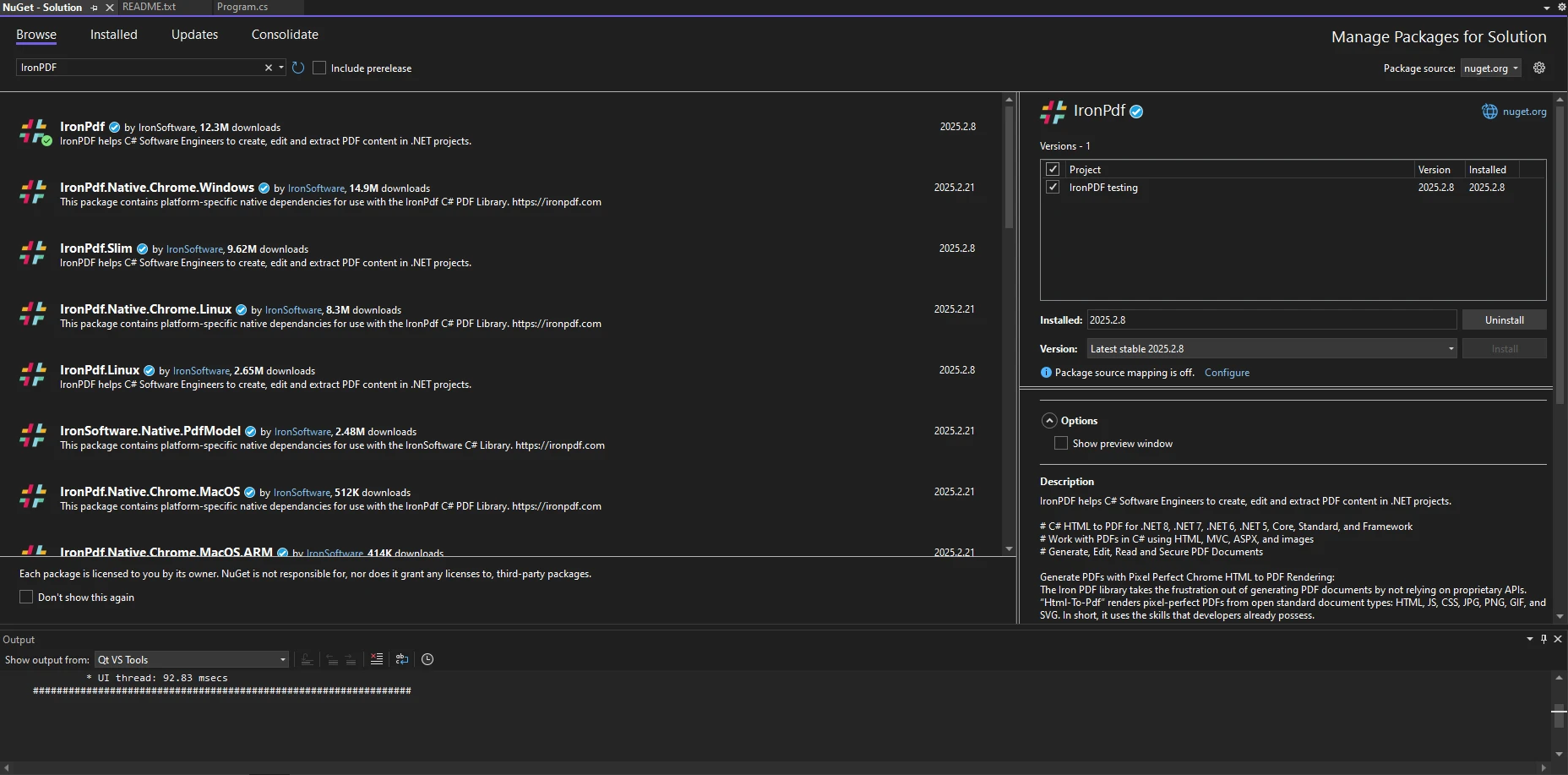

C# Convert String to Bubble (How it Works for Developers): Figure 2

Once installed, ensure you have the following namespace included in your C# file:

using IronPdf;
using IronPdf;
Imports IronPdf
$vbLabelText   $csharpLabel

Understanding Speech Bubbles in PDFs

Speech bubbles are typically created using HTML and CSS. They consist of a text container with rounded edges and a small tail pointing towards the speaker. Using IronPDF, we can generate these speech bubbles as HTML elements and render them inside a PDF.

Working with Data Types for Speech Bubbles

Parsing String Values into Numeric Types

Sometimes, we may need to convert user input into a double value for setting dimensions of the speech bubble dynamically. We can use the parse method to achieve this:

string widthInput = "150.5";
double bubbleWidth = double.Parse(widthInput);
string widthInput = "150.5";
double bubbleWidth = double.Parse(widthInput);
Dim widthInput As String = "150.5"
Dim bubbleWidth As Double = Double.Parse(widthInput)
$vbLabelText   $csharpLabel

This allows dynamic resizing of the bubble based on user input.

Using Boolean Values for Display Options

A boolean value can be used to toggle whether a speech bubble should be visible:

bool showBubble = true;
if (showBubble)
{
    Console.WriteLine("Speech bubble is visible");
}
bool showBubble = true;
if (showBubble)
{
    Console.WriteLine("Speech bubble is visible");
}
Dim showBubble As Boolean = True
If showBubble Then
	Console.WriteLine("Speech bubble is visible")
End If
$vbLabelText   $csharpLabel

Convert Strings to Speech Bubbles with IronPDF

Creating an HTML Template for the Bubble

Since IronPDF supports HTML-to-PDF conversion, we can create a simple speech bubble using HTML and CSS. To convert string variables into PDF documents, you need to make sure you first create a new ChromePdfRenderer instance.

using IronPdf;

class Program
{
    static void Main()
    {
        // Create a new PDF renderer instance
        ChromePdfRenderer renderer = new ChromePdfRenderer();

        // HTML and CSS content for the speech bubble
        string htmlContent =
            "<div class='bubble'>Hello, this is a speech bubble!</div>" +
            "<style>" +
            ".bubble { display: inline-block; background: #f0f0f0; border-radius: 10px; padding: 10px 15px; position: relative; font-family: Arial, sans-serif; }" +
            ".bubble::after { content: ''; position: absolute; bottom: -10px; left: 20px; border-width: 10px; border-style: solid; border-color: #f0f0f0 transparent transparent transparent; }" +
            "</style>";

        // Render the HTML to a PDF
        PdfDocument pdf = renderer.RenderHtmlAsPdf(htmlContent);

        // Save the PDF file
        pdf.SaveAs("speechBubble.pdf");
    }
}
using IronPdf;

class Program
{
    static void Main()
    {
        // Create a new PDF renderer instance
        ChromePdfRenderer renderer = new ChromePdfRenderer();

        // HTML and CSS content for the speech bubble
        string htmlContent =
            "<div class='bubble'>Hello, this is a speech bubble!</div>" +
            "<style>" +
            ".bubble { display: inline-block; background: #f0f0f0; border-radius: 10px; padding: 10px 15px; position: relative; font-family: Arial, sans-serif; }" +
            ".bubble::after { content: ''; position: absolute; bottom: -10px; left: 20px; border-width: 10px; border-style: solid; border-color: #f0f0f0 transparent transparent transparent; }" +
            "</style>";

        // Render the HTML to a PDF
        PdfDocument pdf = renderer.RenderHtmlAsPdf(htmlContent);

        // Save the PDF file
        pdf.SaveAs("speechBubble.pdf");
    }
}
Imports IronPdf

Friend Class Program
	Shared Sub Main()
		' Create a new PDF renderer instance
		Dim renderer As New ChromePdfRenderer()

		' HTML and CSS content for the speech bubble
		Dim htmlContent As String = "<div class='bubble'>Hello, this is a speech bubble!</div>" & "<style>" & ".bubble { display: inline-block; background: #f0f0f0; border-radius: 10px; padding: 10px 15px; position: relative; font-family: Arial, sans-serif; }" & ".bubble::after { content: ''; position: absolute; bottom: -10px; left: 20px; border-width: 10px; border-style: solid; border-color: #f0f0f0 transparent transparent transparent; }" & "</style>"

		' Render the HTML to a PDF
		Dim pdf As PdfDocument = renderer.RenderHtmlAsPdf(htmlContent)

		' Save the PDF file
		pdf.SaveAs("speechBubble.pdf")
	End Sub
End Class
$vbLabelText   $csharpLabel

PDF Output

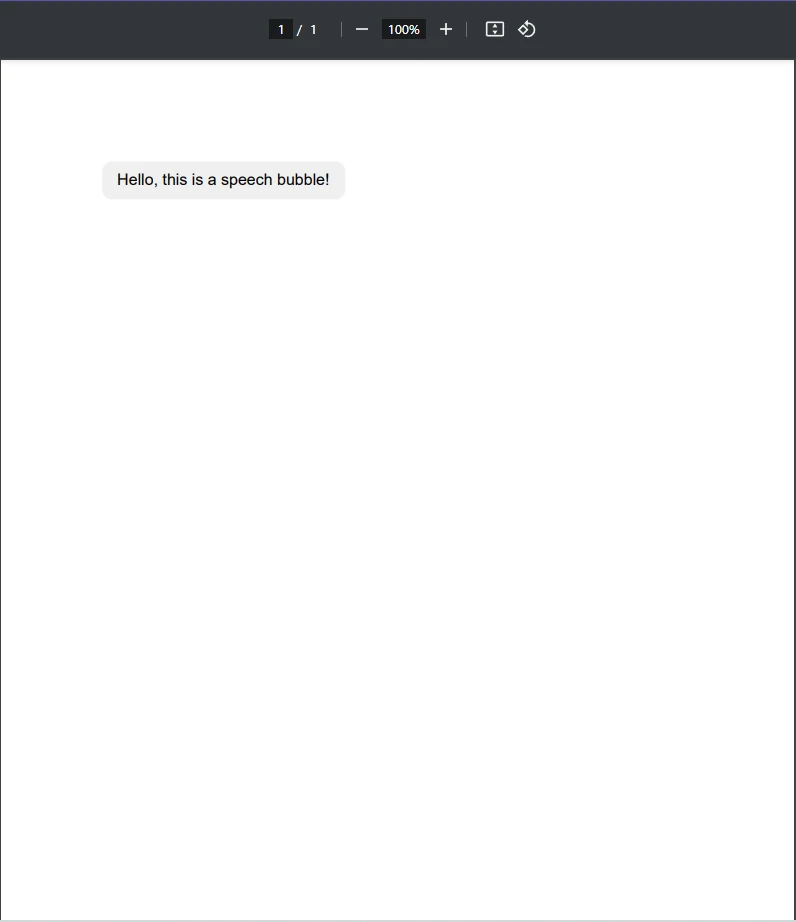

C# Convert String to Bubble (How it Works for Developers): Figure 3 - PDF Output of C# String to Speech Bubble

As you can see, we have created a string variable that contains the HTML and CSS content that will be used to render a speech bubble in our PDF document. Then, using the RenderHtmlAsPdf method from the ChromePdfRenderer class, we render this string into a PDF document, before saving it.

By following these steps, you will have generated a new PDF document containing the text "Hello, this is a speech bubble!", and have mastered the basics of generating PDFs from a simple string.

Customizing the Speech Bubble

What if you wanted to do something more than simply adding a basic speech bubble to your PDF? Let's take a look at how you can customize a speech bubble using CSS. You can modify the color, size, and position of the bubble by tweaking the CSS. Here’s an example where we change the background color and text size:

.bubble {
  background: #ffcc00;
  color: #333;
  font-size: 16px;
}

If you need dynamic text, you can replace the static text with a C# variable, the final code looking something like this:

using IronPdf;

class Program
{
    static void Main()
    {
        // Create a new PDF renderer instance
        ChromePdfRenderer renderer = new ChromePdfRenderer();

        // User input for the dynamic speech bubble content
        string userInput = "This is a custom speech bubble!";

        // HTML and CSS content for the speech bubble with dynamic text
        string dynamicHtml =
            $"<div class='bubble'>{userInput}</div>" +
            "<style>" +
            ".bubble {background: #ffcc00; color: #333; font-size: 16px; }" +
            "</style>";

        // Render the HTML to a PDF
        PdfDocument pdf = renderer.RenderHtmlAsPdf(dynamicHtml);

        // Save the PDF file
        pdf.SaveAs("speechBubble.pdf");
    }
}
using IronPdf;

class Program
{
    static void Main()
    {
        // Create a new PDF renderer instance
        ChromePdfRenderer renderer = new ChromePdfRenderer();

        // User input for the dynamic speech bubble content
        string userInput = "This is a custom speech bubble!";

        // HTML and CSS content for the speech bubble with dynamic text
        string dynamicHtml =
            $"<div class='bubble'>{userInput}</div>" +
            "<style>" +
            ".bubble {background: #ffcc00; color: #333; font-size: 16px; }" +
            "</style>";

        // Render the HTML to a PDF
        PdfDocument pdf = renderer.RenderHtmlAsPdf(dynamicHtml);

        // Save the PDF file
        pdf.SaveAs("speechBubble.pdf");
    }
}
Imports IronPdf

Friend Class Program
	Shared Sub Main()
		' Create a new PDF renderer instance
		Dim renderer As New ChromePdfRenderer()

		' User input for the dynamic speech bubble content
		Dim userInput As String = "This is a custom speech bubble!"

		' HTML and CSS content for the speech bubble with dynamic text
		Dim dynamicHtml As String = $"<div class='bubble'>{userInput}</div>" & "<style>" & ".bubble {background: #ffcc00; color: #333; font-size: 16px; }" & "</style>"

		' Render the HTML to a PDF
		Dim pdf As PdfDocument = renderer.RenderHtmlAsPdf(dynamicHtml)

		' Save the PDF file
		pdf.SaveAs("speechBubble.pdf")
	End Sub
End Class
$vbLabelText   $csharpLabel

PDF Output

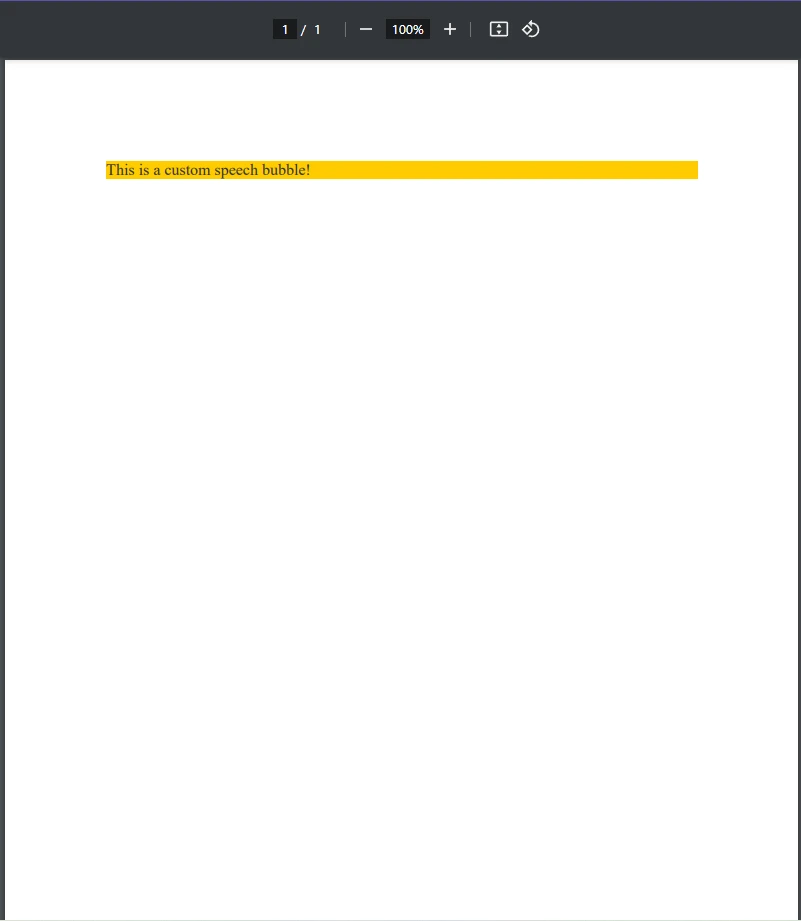

C# Convert String to Bubble (How it Works for Developers): Figure 4 - Customized PDF speech bubble output

Advanced Features

Overlaying the Bubble on an Existing PDF

Sometimes, you may want to add speech bubbles to an existing PDF instead of generating a new one. IronPDF allows you to overlay HTML elements onto existing PDFs in the form of watermarks.

using IronPdf;

class Program
{
    public static void Main()
    {
        // Load an existing PDF document
        PdfDocument pdf = PdfDocument.FromFile("existing.pdf");

        // HTML and CSS content for the new speech bubble
        string newBubble =
            "<div class='bubble'>New Comment</div>" +
            "<style>" +
            ".bubble { display: inline-block; background: #f0f0f0; border-radius: 10px; padding: 10px 15px; position: relative; font-family: Arial, sans-serif; }" +
            ".bubble::after { content: ''; position: absolute; bottom: -10px; left: 20px; border-width: 10px; border-style: solid; border-color: #f0f0f0 transparent transparent transparent; }" +
            "</style>";

        // Apply the speech bubble as a watermark on the existing PDF
        pdf.ApplyWatermark(newBubble);

        // Save the updated PDF file
        pdf.SaveAs("updated.pdf");
    }
}
using IronPdf;

class Program
{
    public static void Main()
    {
        // Load an existing PDF document
        PdfDocument pdf = PdfDocument.FromFile("existing.pdf");

        // HTML and CSS content for the new speech bubble
        string newBubble =
            "<div class='bubble'>New Comment</div>" +
            "<style>" +
            ".bubble { display: inline-block; background: #f0f0f0; border-radius: 10px; padding: 10px 15px; position: relative; font-family: Arial, sans-serif; }" +
            ".bubble::after { content: ''; position: absolute; bottom: -10px; left: 20px; border-width: 10px; border-style: solid; border-color: #f0f0f0 transparent transparent transparent; }" +
            "</style>";

        // Apply the speech bubble as a watermark on the existing PDF
        pdf.ApplyWatermark(newBubble);

        // Save the updated PDF file
        pdf.SaveAs("updated.pdf");
    }
}
Imports IronPdf

Friend Class Program
	Public Shared Sub Main()
		' Load an existing PDF document
		Dim pdf As PdfDocument = PdfDocument.FromFile("existing.pdf")

		' HTML and CSS content for the new speech bubble
		Dim newBubble As String = "<div class='bubble'>New Comment</div>" & "<style>" & ".bubble { display: inline-block; background: #f0f0f0; border-radius: 10px; padding: 10px 15px; position: relative; font-family: Arial, sans-serif; }" & ".bubble::after { content: ''; position: absolute; bottom: -10px; left: 20px; border-width: 10px; border-style: solid; border-color: #f0f0f0 transparent transparent transparent; }" & "</style>"

		' Apply the speech bubble as a watermark on the existing PDF
		pdf.ApplyWatermark(newBubble)

		' Save the updated PDF file
		pdf.SaveAs("updated.pdf")
	End Sub
End Class
$vbLabelText   $csharpLabel

PDF Output

C# Convert String to Bubble (How it Works for Developers): Figure 5 - Output for adding a speech bubble to an existing PDF

As you can see in the above code example, we start by loading in an existing PDF document using PdfDocument.FromFile(), to which we plan to add the new speech bubble. Then, using simple HTML and CSS, we created the speech bubble in our newBubble string representation of the HTML content. Finally, all we needed to do to apply this new bubble to the PDF was utilize the ApplyWatermark method.

Using tools such as IronPDF's watermarking tool allows developers to apply HTML content to existing PDF documents with ease.

Generating Speech Bubbles from Data

If you need to create speech bubbles dynamically based on user input, a database, or an API, you can loop through your data and generate multiple speech bubbles.

using IronPdf;

class Program
{
    static void Main()
    {
        // Create a new PDF renderer instance
        ChromePdfRenderer renderer = new ChromePdfRenderer();

        // List of messages to convert into speech bubbles
        List<string> messages = new List<string> { "Hello!", "How are you?", "This is IronPDF!" };
        string htmlBubbles = "";

        // Generate HTML for each message
        foreach (var msg in messages)
        {
            htmlBubbles += $"<div class='bubble'>{msg}</div>";
        }

        // Render the HTML to a PDF
        var pdf = renderer.RenderHtmlAsPdf(htmlBubbles);

        // Save the PDF file
        pdf.SaveAs("updated.pdf");
    }
}
using IronPdf;

class Program
{
    static void Main()
    {
        // Create a new PDF renderer instance
        ChromePdfRenderer renderer = new ChromePdfRenderer();

        // List of messages to convert into speech bubbles
        List<string> messages = new List<string> { "Hello!", "How are you?", "This is IronPDF!" };
        string htmlBubbles = "";

        // Generate HTML for each message
        foreach (var msg in messages)
        {
            htmlBubbles += $"<div class='bubble'>{msg}</div>";
        }

        // Render the HTML to a PDF
        var pdf = renderer.RenderHtmlAsPdf(htmlBubbles);

        // Save the PDF file
        pdf.SaveAs("updated.pdf");
    }
}
Imports IronPdf

Friend Class Program
	Shared Sub Main()
		' Create a new PDF renderer instance
		Dim renderer As New ChromePdfRenderer()

		' List of messages to convert into speech bubbles
		Dim messages As New List(Of String) From {"Hello!", "How are you?", "This is IronPDF!"}
		Dim htmlBubbles As String = ""

		' Generate HTML for each message
		For Each msg In messages
			htmlBubbles &= $"<div class='bubble'>{msg}</div>"
		Next msg

		' Render the HTML to a PDF
		Dim pdf = renderer.RenderHtmlAsPdf(htmlBubbles)

		' Save the PDF file
		pdf.SaveAs("updated.pdf")
	End Sub
End Class
$vbLabelText   $csharpLabel

PDF Output

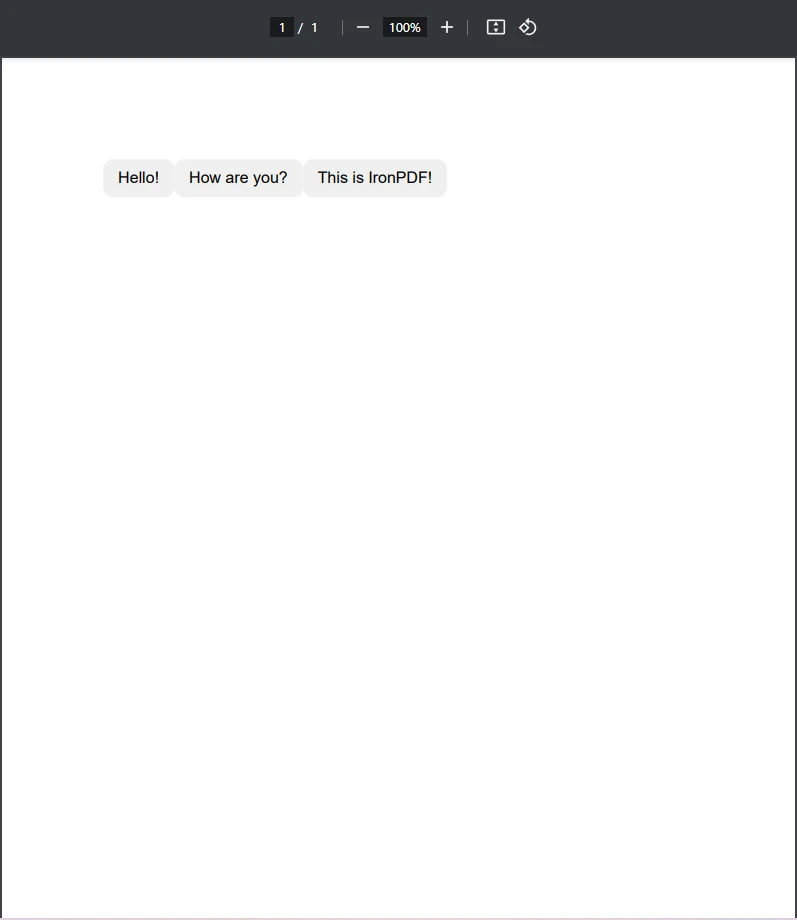

C# Convert String to Bubble (How it Works for Developers): Figure 6 - Output PDF file for generating speech bubbles from data

This code converts strings from a List into speech bubbles through the use of a foreach loop. By using methods such as this to convert strings into speech bubbles on PDF documents, you can easily turn data such as chat logs, notifications, or even automated reports into easily displayed speech bubbles.

Handling Culture-Specific Formatting Information

When parsing user input, we may need to consider culture-specific formatting information, especially for numeric values.

using System.Globalization;

string value = "1,234.56";
double number = double.Parse(value, CultureInfo.InvariantCulture);
using System.Globalization;

string value = "1,234.56";
double number = double.Parse(value, CultureInfo.InvariantCulture);
Imports System.Globalization

Private value As String = "1,234.56"
Private number As Double = Double.Parse(value, CultureInfo.InvariantCulture)
$vbLabelText   $csharpLabel

This ensures consistent number formatting regardless of regional settings.

Using Integer Values in Speech Bubble Handling

Assigning an Integer Variable

We can declare an int variable to store a counter for speech bubbles:

int i = 0;
for (i = 0; i < 5; i++)
{
    Console.WriteLine($"Generating speech bubble {i + 1}");
}
int i = 0;
for (i = 0; i < 5; i++)
{
    Console.WriteLine($"Generating speech bubble {i + 1}");
}
Dim i As Integer = 0
For i = 0 To 4
	Console.WriteLine($"Generating speech bubble {i + 1}")
Next i
$vbLabelText   $csharpLabel

Parsing Strings to Integer Values

If we need to parse a string input into an int result, we can use the parse method:

string input = "42";
int result = int.Parse(input);
string input = "42";
int result = int.Parse(input);
Dim input As String = "42"
Dim result As Integer = Integer.Parse(input)
$vbLabelText   $csharpLabel

This ensures the text input is converted into a valid format, in the form of a usable numeric format variable.

Creating a Speech Bubble Generator Class

To keep our code structured, we can define a public class for speech bubble generation:

public class SpeechBubbleGenerator
{
    // Method to generate HTML for a speech bubble
    public string GenerateBubble(string text)
    {
        return $"<div class='bubble'>{text}</div>";
    }
}
public class SpeechBubbleGenerator
{
    // Method to generate HTML for a speech bubble
    public string GenerateBubble(string text)
    {
        return $"<div class='bubble'>{text}</div>";
    }
}
Public Class SpeechBubbleGenerator
	' Method to generate HTML for a speech bubble
	Public Function GenerateBubble(ByVal text As String) As String
		Return $"<div class='bubble'>{text}</div>"
	End Function
End Class
$vbLabelText   $csharpLabel

Using this class, we can create multiple speech bubbles efficiently.

Conclusion

Speech bubbles add clarity and style to PDFs, making them ideal for annotations, comments, and interactive documents. By using IronPDF, you can easily generate these bubbles with HTML and CSS while leveraging C# for customization and automation. Whether you're overlaying them onto existing PDFs or creating dynamic documents, IronPDF offers a flexible and efficient approach, making it easy to convert strings into readable speech bubbles for your PDF documents.

If you’re looking for a powerful PDF solution in .NET, try IronPDF and start enhancing your PDFs with dynamic, visually appealing content!

Frequently Asked Questions

What is the purpose of using speech bubbles in PDFs?

Speech bubbles are used to highlight text, annotate documents, or create comic-style effects in PDFs, enhancing readability and visual appeal.

Why should developers use a .NET library for generating speech bubbles in C#?

Using a powerful .NET library simplifies the conversion of HTML and CSS into PDFs, enabling developers to dynamically create styled speech bubbles from C# strings.

How can I install a library in a .NET project?

You can install a .NET library via the NuGet Package Manager in Visual Studio by running 'Install-Package IronPdf' in the Package Manager Console or by searching for the library in the NuGet Package Manager GUI.

What HTML and CSS elements are used to create speech bubbles?

Speech bubbles are typically created using a text container with rounded edges and a tail, styled using HTML and CSS to achieve the desired appearance.

Can I customize speech bubbles in a .NET PDF library?

Yes, you can customize speech bubbles using CSS to modify properties such as color, size, and position, allowing for personalized appearance.

How can I overlay speech bubbles on an existing PDF?

A .NET PDF library allows you to overlay HTML elements, like speech bubbles, onto existing PDFs using methods such as ApplyWatermark.

Is it possible to generate speech bubbles dynamically from user input or data?

Yes, you can loop through data sources like user input, databases, or APIs to generate speech bubbles dynamically using a .NET PDF library.

How can culture-specific formatting be handled when parsing numeric values for speech bubbles?

You can handle culture-specific formatting by using the CultureInfo.InvariantCulture option when parsing numeric values, ensuring consistent formatting.

What is a SpeechBubbleGenerator class?

A SpeechBubbleGenerator class is a custom C# class that can be used to structure and encapsulate the generation of speech bubbles, making the code more organized and reusable.

What are the benefits of using a .NET PDF library for PDF generation?

A .NET PDF library offers a flexible and efficient approach for generating PDFs, allowing for dynamic and visually appealing content creation, such as speech bubbles, directly from C# code.

Chipego
Software Engineer
Chipego has a natural skill for listening that helps him to comprehend customer issues, and offer intelligent solutions. He joined the Iron Software team in 2023, after studying a Bachelor of Science in Information Technology. IronPDF and IronOCR are the two products Chipego has been focusing on, but his knowledge of all products is growing daily, as he finds new ways to support customers. He enjoys how collaborative life is at Iron Software, with team members from across the company bringing their varied experience to contribute to effective, innovative solutions. When Chipego is away from his desk, he can often be found enjoying a good book or playing football.
