C# BackgroundWorker (How it Works for Developers)
Generating PDFs with IronPDF is a common task for .NET developers—especially when building dynamic reports, invoices, or document automation systems. But if you’ve ever triggered PDF generation on the main UI thread in a Windows Forms or WPF app, you’ve likely seen your user interface freeze or become unresponsive. This is especially true when rendering large HTML content or processing complex PDF layouts.
That’s where the C# BackgroundWorker class comes in. This article walks through how to integrate IronPDF with BackgroundWorker to handle asynchronous operations in a desktop app without locking up the UI.
Why Use BackgroundWorker with IronPDF?
Keep Your UI Responsive
When you run CPU-heavy or IO-bound tasks like PDF generation on the main thread, it locks up the UI. Users can’t click, drag, or interact with the application while it’s busy. By using a BackgroundWorker object, you can move the work to a separate thread, keeping your interface snappy and usable during background processing.
Perfect for Report Generation and Long-Running Tasks
If your app involves exporting data, converting HTML to PDF, or rendering detailed reports—offloading that to a background worker makes your application more professional and performant.
Compatible with Legacy WinForms Apps
Although modern apps often use async/await, many older projects still benefit from BackgroundWorker for its simplicity and design-time support in Visual Studio.
What is IronPDF?
IronPDF is a powerful .NET library designed for generating, editing, and working with PDF documents in C#. It uses a headless Chromium browser under the hood, allowing developers to convert HTML, CSS, JavaScript, and even complex web pages into accurate, print-quality PDFs. Unlike traditional PDF generators, IronPDF renders documents exactly as they would appear in a browser—matching layout, fonts, images, and styles pixel-for-pixel.
Key Features
- HTML to PDF Conversion – Render HTML strings, URLs, or full web pages into PDFs.
- Image and Text Rendering – Add headers, footers, watermarks, and images programmatically.
- Merging and Splitting PDFs – Combine multiple documents or extract specific pages.
- Form Filling and Annotations – Work with interactive PDF forms.
- No External Dependencies – Works without needing Adobe Acrobat or Microsoft Office installed.
IronPDF supports .NET Framework, .NET Core, and .NET 6/7+, making it ideal for both desktop and web-based .NET applications.
Installing IronPDF via NuGet
To get started, install IronPDF into your project using NuGet Package Manager:
Install-Package IronPdf
Install-Package IronPdf
'INSTANT VB TODO TASK: The following line uses invalid syntax:
'Install-Package IronPdf
This will add all necessary references so you can begin using IronPDF’s ChromePdfRenderer, HtmlToPdf, and other powerful features.
For this example, we’ll use a Windows Forms application created with Visual Studio, with a button that triggers PDF generation and a label to indicate when the process is complete.
Implementing BackgroundWorker for IronPDF
Now, we'll use the following code examples to break down the process of using BackgroundWorker in a structured and safe way:
Step 1 – Define the BackgroundWorker
You can create and configure a BackgroundWorker either in the designer or in code. Here’s the code approach:
private void SetupBackgroundWorker()
{
// new backgroundworker worker instance
worker = new BackgroundWorker(); // dowork event handler
worker.DoWork += PdfWorker_DoWork;
worker.RunWorkerCompleted += PdfWorker_RunWorkerCompleted; // final result handler
}
private void SetupBackgroundWorker()
{
// new backgroundworker worker instance
worker = new BackgroundWorker(); // dowork event handler
worker.DoWork += PdfWorker_DoWork;
worker.RunWorkerCompleted += PdfWorker_RunWorkerCompleted; // final result handler
}
Private Sub SetupBackgroundWorker()
' new backgroundworker worker instance
worker = New BackgroundWorker() ' dowork event handler
worker.DoWork += PdfWorker_DoWork
worker.RunWorkerCompleted += PdfWorker_RunWorkerCompleted ' final result handler
End Sub
This initializes the worker and wires up the necessary events for background execution and completion.
Step 2 – Handle the DoWork Event
The DoWork method runs on a different thread, performing the background operation (generating the PDF):
private void PdfWorker_DoWork(object sender, DoWorkEventArgs e)
{
var Renderer = new ChromePdfRenderer();
// Simulate input from UI or parameters
string htmlContent = "<h1>Monthly Report</h1><p>Generated with IronPDF.</p>";
string outputPath = Path.Combine(Environment.CurrentDirectory, "Report.pdf");
// Generate PDF
var pdf = Renderer.RenderHtmlAsPdf(htmlContent);
pdf.SaveAs(outputPath);
// Optionally pass result info
e.Result = outputPath; // pass value to RunWorkerCompleted
}
private void PdfWorker_DoWork(object sender, DoWorkEventArgs e)
{
var Renderer = new ChromePdfRenderer();
// Simulate input from UI or parameters
string htmlContent = "<h1>Monthly Report</h1><p>Generated with IronPDF.</p>";
string outputPath = Path.Combine(Environment.CurrentDirectory, "Report.pdf");
// Generate PDF
var pdf = Renderer.RenderHtmlAsPdf(htmlContent);
pdf.SaveAs(outputPath);
// Optionally pass result info
e.Result = outputPath; // pass value to RunWorkerCompleted
}
Private Sub PdfWorker_DoWork(ByVal sender As Object, ByVal e As DoWorkEventArgs)
Dim Renderer = New ChromePdfRenderer()
' Simulate input from UI or parameters
Dim htmlContent As String = "<h1>Monthly Report</h1><p>Generated with IronPDF.</p>"
Dim outputPath As String = Path.Combine(Environment.CurrentDirectory, "Report.pdf")
' Generate PDF
Dim pdf = Renderer.RenderHtmlAsPdf(htmlContent)
pdf.SaveAs(outputPath)
' Optionally pass result info
e.Result = outputPath ' pass value to RunWorkerCompleted
End Sub
Note: You cannot interact with UI controls here since it runs on a worker thread.
Step 3 – Use RunWorkerCompleted to Notify Completion
Once the background thread completes, you can safely update the UI with the results.
private void PdfWorker_RunWorkerCompleted(object sender, RunWorkerCompletedEventArgs e)
{
if (e.Error != null)
{
MessageBox.Show("Error: " + e.Error.Message);
}
else
{
string savedPath = e.Result.ToString();
MessageBox.Show("PDF created at:\n" + savedPath);
}
}
private void PdfWorker_RunWorkerCompleted(object sender, RunWorkerCompletedEventArgs e)
{
if (e.Error != null)
{
MessageBox.Show("Error: " + e.Error.Message);
}
else
{
string savedPath = e.Result.ToString();
MessageBox.Show("PDF created at:\n" + savedPath);
}
}
Imports Microsoft.VisualBasic
Private Sub PdfWorker_RunWorkerCompleted(ByVal sender As Object, ByVal e As RunWorkerCompletedEventArgs)
If e.Error IsNot Nothing Then
MessageBox.Show("Error: " & e.Error.Message)
Else
Dim savedPath As String = e.Result.ToString()
MessageBox.Show("PDF created at:" & vbLf & savedPath)
End If
End Sub
Step 4 – Triggering BackgroundWorker from UI
Add a Start button to execute the background task when clicked:
private void btnGeneratePDF_Click(object sender, EventArgs e)
{
if (pdfWorker == null)
SetupBackgroundWorker();
if (!pdfWorker.IsBusy)
{
btnGeneratePDF.Enabled = false;
pdfWorker.RunWorkerAsync(); // execute method in background
}
}
private void btnGeneratePDF_Click(object sender, EventArgs e)
{
if (pdfWorker == null)
SetupBackgroundWorker();
if (!pdfWorker.IsBusy)
{
btnGeneratePDF.Enabled = false;
pdfWorker.RunWorkerAsync(); // execute method in background
}
}
Private Sub btnGeneratePDF_Click(ByVal sender As Object, ByVal e As EventArgs)
If pdfWorker Is Nothing Then
SetupBackgroundWorker()
End If
If Not pdfWorker.IsBusy Then
btnGeneratePDF.Enabled = False
pdfWorker.RunWorkerAsync() ' execute method in background
End If
End Sub
Full Code Example
Here’s everything tied together in a single working Windows Forms snippet:
using System;
using System.ComponentModel;
using IronPdf;
using System.IO;
using System.Windows.Forms;
namespace TestApp
{
public partial class Form1 : Form
{
private BackgroundWorker worker;
public Form1()
{
InitializeComponent();
SetupBackgroundWorker(); }
private void SetupBackgroundWorker()
{
worker = new BackgroundWorker();
worker.DoWork += PdfWorker_DoWork;
worker.RunWorkerCompleted += PdfWorker_RunWorkerCompleted;
}
private void btnGeneratePDF_Click(object sender, EventArgs e)
{
if (!worker.IsBusy)
{
btnGeneratePDF.Enabled = false;
worker.RunWorkerAsync();
}
}
private void PdfWorker_DoWork(object sender, DoWorkEventArgs e)
{
var Renderer = new ChromePdfRenderer();
string htmlContent = "<h1>Report</h1><p>This PDF was generated in the background.</p>";
string outputPath = Path.Combine(Environment.CurrentDirectory, "Report.pdf");
var pdf = Renderer.RenderHtmlAsPdf(htmlContent);
pdf.SaveAs(outputPath);
e.Result = outputPath;
}
private void PdfWorker_RunWorkerCompleted(object sender, RunWorkerCompletedEventArgs e)
{
btnGeneratePDF.Enabled = true;
if (e.Error != null)
{
MessageBox.Show("Failed: " + e.Error.Message);
}
else
{
MessageBox.Show("PDF created: " + e.Result.ToString());
}
}
private void btnGeneratePDF_Click_1(object sender, EventArgs e)
{
if (!worker.IsBusy)
{
btnGeneratePDF.Enabled = false;
worker.RunWorkerAsync();
}
}
}
}
using System;
using System.ComponentModel;
using IronPdf;
using System.IO;
using System.Windows.Forms;
namespace TestApp
{
public partial class Form1 : Form
{
private BackgroundWorker worker;
public Form1()
{
InitializeComponent();
SetupBackgroundWorker(); }
private void SetupBackgroundWorker()
{
worker = new BackgroundWorker();
worker.DoWork += PdfWorker_DoWork;
worker.RunWorkerCompleted += PdfWorker_RunWorkerCompleted;
}
private void btnGeneratePDF_Click(object sender, EventArgs e)
{
if (!worker.IsBusy)
{
btnGeneratePDF.Enabled = false;
worker.RunWorkerAsync();
}
}
private void PdfWorker_DoWork(object sender, DoWorkEventArgs e)
{
var Renderer = new ChromePdfRenderer();
string htmlContent = "<h1>Report</h1><p>This PDF was generated in the background.</p>";
string outputPath = Path.Combine(Environment.CurrentDirectory, "Report.pdf");
var pdf = Renderer.RenderHtmlAsPdf(htmlContent);
pdf.SaveAs(outputPath);
e.Result = outputPath;
}
private void PdfWorker_RunWorkerCompleted(object sender, RunWorkerCompletedEventArgs e)
{
btnGeneratePDF.Enabled = true;
if (e.Error != null)
{
MessageBox.Show("Failed: " + e.Error.Message);
}
else
{
MessageBox.Show("PDF created: " + e.Result.ToString());
}
}
private void btnGeneratePDF_Click_1(object sender, EventArgs e)
{
if (!worker.IsBusy)
{
btnGeneratePDF.Enabled = false;
worker.RunWorkerAsync();
}
}
}
}
Imports System
Imports System.ComponentModel
Imports IronPdf
Imports System.IO
Imports System.Windows.Forms
Namespace TestApp
Partial Public Class Form1
Inherits Form
Private worker As BackgroundWorker
Public Sub New()
InitializeComponent()
SetupBackgroundWorker()
End Sub
Private Sub SetupBackgroundWorker()
worker = New BackgroundWorker()
AddHandler worker.DoWork, AddressOf PdfWorker_DoWork
AddHandler worker.RunWorkerCompleted, AddressOf PdfWorker_RunWorkerCompleted
End Sub
Private Sub btnGeneratePDF_Click(ByVal sender As Object, ByVal e As EventArgs)
If Not worker.IsBusy Then
btnGeneratePDF.Enabled = False
worker.RunWorkerAsync()
End If
End Sub
Private Sub PdfWorker_DoWork(ByVal sender As Object, ByVal e As DoWorkEventArgs)
Dim Renderer = New ChromePdfRenderer()
Dim htmlContent As String = "<h1>Report</h1><p>This PDF was generated in the background.</p>"
Dim outputPath As String = Path.Combine(Environment.CurrentDirectory, "Report.pdf")
Dim pdf = Renderer.RenderHtmlAsPdf(htmlContent)
pdf.SaveAs(outputPath)
e.Result = outputPath
End Sub
Private Sub PdfWorker_RunWorkerCompleted(ByVal sender As Object, ByVal e As RunWorkerCompletedEventArgs)
btnGeneratePDF.Enabled = True
If e.Error IsNot Nothing Then
MessageBox.Show("Failed: " & e.Error.Message)
Else
MessageBox.Show("PDF created: " & e.Result.ToString())
End If
End Sub
Private Sub btnGeneratePDF_Click_1(ByVal sender As Object, ByVal e As EventArgs)
If Not worker.IsBusy Then
btnGeneratePDF.Enabled = False
worker.RunWorkerAsync()
End If
End Sub
End Class
End Namespace

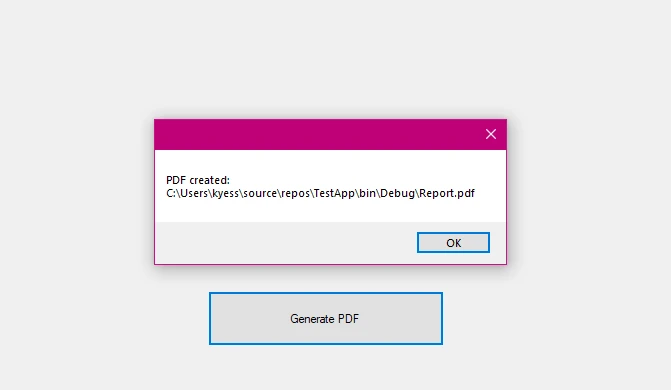

Form output

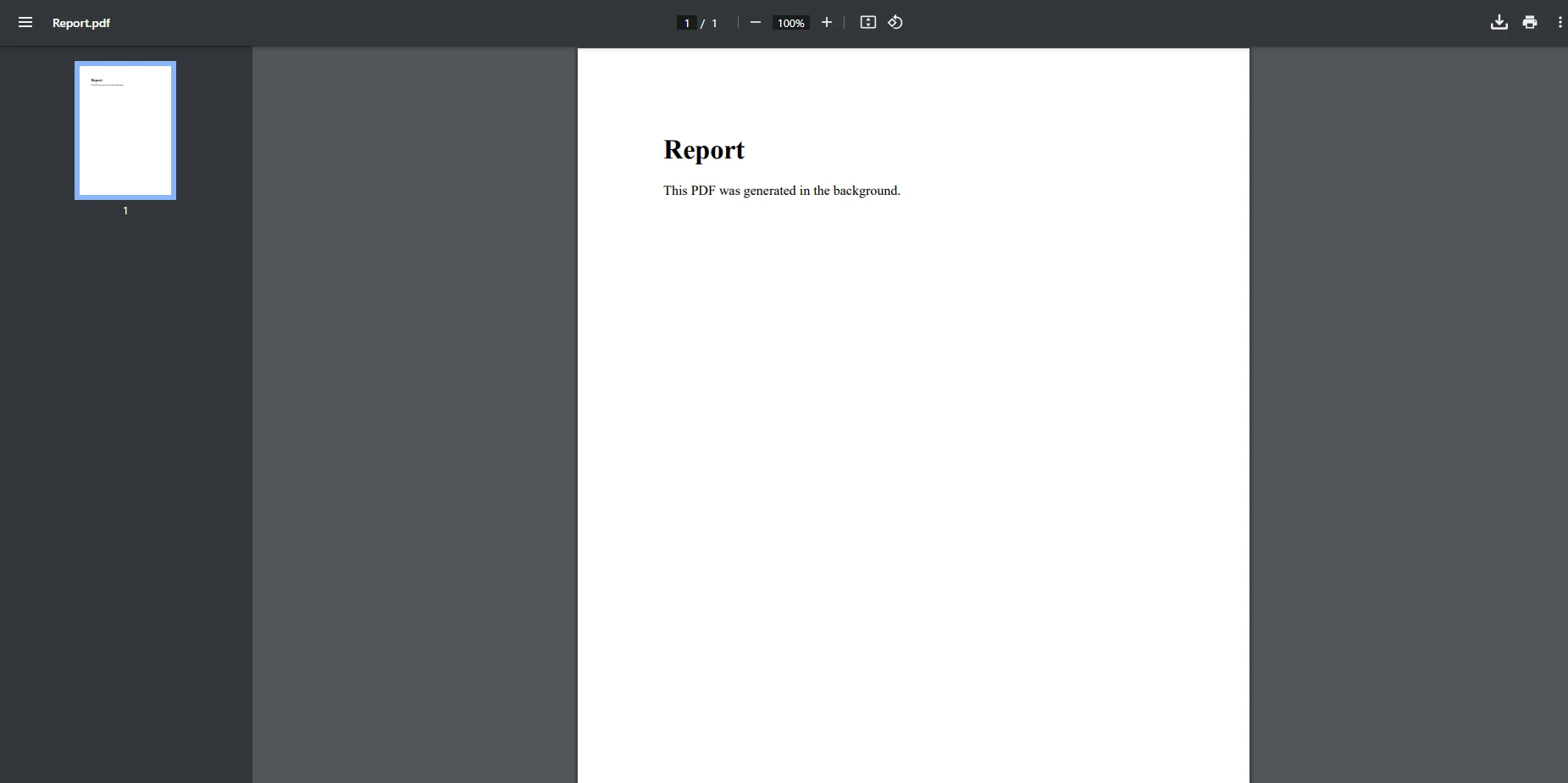

PDF Output
Best Practices
Avoid UI Access in DoWork
The DoWork event handler runs on a different thread, so you can’t access UI elements directly. Use RunWorkerCompleted or control Invoke() calls for safe UI updates.
Support Asynchronous Cancellation
If your task is long, enable WorkerSupportsCancellation = true and monitor CancellationPending inside DoWork to support requested cancellation.
Use Report Progress Updates (Optional)
You can enable WorkerReportsProgress = true and use the ProgressChanged event to show a progress bar or messages.
Validate the Input Argument
When using RunWorkerAsync(argument), validate the argument in DoWork and return any method results through e.Result.
Conclusion
Using BackgroundWorker with IronPDF enables you to perform heavy PDF rendering tasks on a background thread, keeping your application responsive. This is especially valuable when working with WinForms or WPF apps that require responsive UI updates during long-running tasks like PDF generation.
By handling the dowork event handler, monitoring the final result, and safely updating your user interface in the runworkercompleted event, you ensure your background operations run smoothly.
While async/await is often the go-to for new applications, BackgroundWorker remains a reliable tool for legacy or WinForms projects. Whether you're exporting reports or generating documents on-the-fly, this approach will help you get the most out of IronPDF while keeping your app smooth and user-friendly.
Ready to try it yourself?
Download the free IronPDF trial and start building powerful PDF solutions in C# today. The trial gives you full access to the features showcased in this article—no credit card required.
Frequently Asked Questions
How can I perform PDF generation in a C# Windows Forms application without freezing the UI?
You can utilize the C# BackgroundWorker class in conjunction with IronPDF to perform PDF generation on a separate thread. This ensures that the main UI thread remains responsive during the process.
What is the role of the DoWork event handler in BackgroundWorker?
The DoWork event handler is where you execute the long-running task, such as PDF generation using IronPDF. It runs on a separate thread from the UI, preventing the interface from freezing.
How can I update the UI with results from a background PDF generation task?
Use the RunWorkerCompleted event to update the UI with the results of your PDF generation. This event is triggered once the background task is complete, allowing safe interaction with UI elements.
What are the benefits of using BackgroundWorker for PDF processing in older .NET applications?
BackgroundWorker offers a straightforward way to implement asynchronous operations in legacy WinForms applications, providing a simple model for handling tasks like PDF processing with IronPDF while keeping the UI responsive.
Can I cancel a PDF generation task using BackgroundWorker?
Yes, BackgroundWorker supports cancellation of tasks. You can implement cancellation by checking the CancellationPending
property in your DoWork event handler and terminating the task gracefully.
How can I track the progress of PDF generation using BackgroundWorker?
You can report progress from the DoWork method using the ReportProgress
method of the BackgroundWorker. This allows you to update the UI with progress information during PDF generation.
Why should UI updates be avoided in the DoWork event handler?
UI updates should be avoided in the DoWork event handler because it runs on a separate thread. Direct UI manipulation could lead to threading issues. Instead, use the RunWorkerCompleted or ProgressChanged events for UI updates.
What steps are involved in setting up a BackgroundWorker for PDF generation in C#?
Setting up a BackgroundWorker involves initializing the worker, handling the DoWork and RunWorkerCompleted events, and starting the task using RunWorkerAsync
. This setup is used to perform tasks like PDF generation with IronPDF.
Is it necessary to use modern async/await patterns for PDF generation in .NET applications?
While modern async/await patterns are recommended for new applications, BackgroundWorker remains useful in older WinForms applications for handling asynchronous tasks like PDF generation with IronPDF, due to its simplicity and ease of use.
