There are 7 main ways to convert HTML to PDF in C#, and not all methods produce identical results. In benchmarking 7 engines with a 2-page invoice, only 3 rendered it correctly. Of the other 4, 3 printed an amount due of 0.00 where the computed total belonged and the fourth dropped the totals block altogether, none of them raising an error or a warning. These engines vary in their support for modern CSS, JavaScript execution, performance under load, and container size. These differences become apparent only after reviewing the output, rather than assuming a successful render means correct content. This guide offers working code for all 7 approaches and benchmark data for each, all measured on a single machine.
The libraries fall into 2 main categories, which largely explains the results below. Browser-grade renderers use a full Chromium engine. IronPDF (2026.8.1) includes Chromium within the package, while PuppeteerSharp (25.8.0) and Playwright .NET (1.62.0) control an external browser via the DevTools protocol. These 3 replicate Chrome's output, including CSS Grid, web fonts, and canvas-based charts, but require more memory and larger containers. Layout-engine libraries, such as iText 9 with pdfHTML (6.3.3 on iText Core 9.7.0), HtmlRenderer with PdfSharp (1.6.1), and Aspose.HTML (25.7.0), use their own layout engines, are far smaller and often faster, but do not support modern JavaScript. wkhtmltopdf (0.12.6) is an intermediate case, using an older Qt (4.8.5) WebKit engine that supports ES5 but not ES6. All benchmarks in this guide are based on processing the same 2-page invoice at 4 concurrency levels, with each PDF reviewed for accuracy.
The Short Version: Where IronPDF LeadsMeasured on 3 September 2026, 5 passes, 8,960 timed renders, on an idle 24-core Windows 11 desktop running .NET 10. Full method and raw data are below, and the harness is downloadable.
| What you are choosing on | Winner | Measured | What the alternatives cost |
|---|---|---|---|
| A correct document | IronPDF | Totals computed, chart drawn, grid intact | 4 of the 7 returned a document that was wrong and raised no error |
| Throughput on a correct render | IronPDF | 44.02 renders/s at 8 concurrent | 2.1x Playwright, 2.8x PuppeteerSharp on the same machine |
| Work per megabyte | IronPDF | 27.0 MB per sustained render/s | 54.3 MB for Playwright, 82.9 MB for PuppeteerSharp |
| Cold start on a correct render | IronPDF | 486 ms to first PDF | 639 ms PuppeteerSharp, 720 ms Playwright, 1,096 ms Aspose.HTML |
| What you operate | IronPDF | Chromium ships inside the NuGet package | The browser engines add an image, a build-time download, a process pool and a patch cadence |
| What you integrate next | IronPDF | Merge, forms, signatures, PDF/A, encryption in the same package | The browser engines render and stop, so the next step is a second dependency |
The speed figures above it in the table belong to engines that got the document wrong. iText 9 posted 54.30 renders per second and HtmlRenderer 327.09, and both did it by never running the page's JavaScript. A throughput figure means little without the document it produced, so every table here carries an accuracy column.
IronPDF leads on throughput per correct render: Among the engines that reproduced the document, IronPDF sustained 44.02 renders per second against 20.68 and 15.60, on the same machine, the same document and the same wait condition, while returning the most work per megabyte of the 3 and reaching a first PDF the quickest.

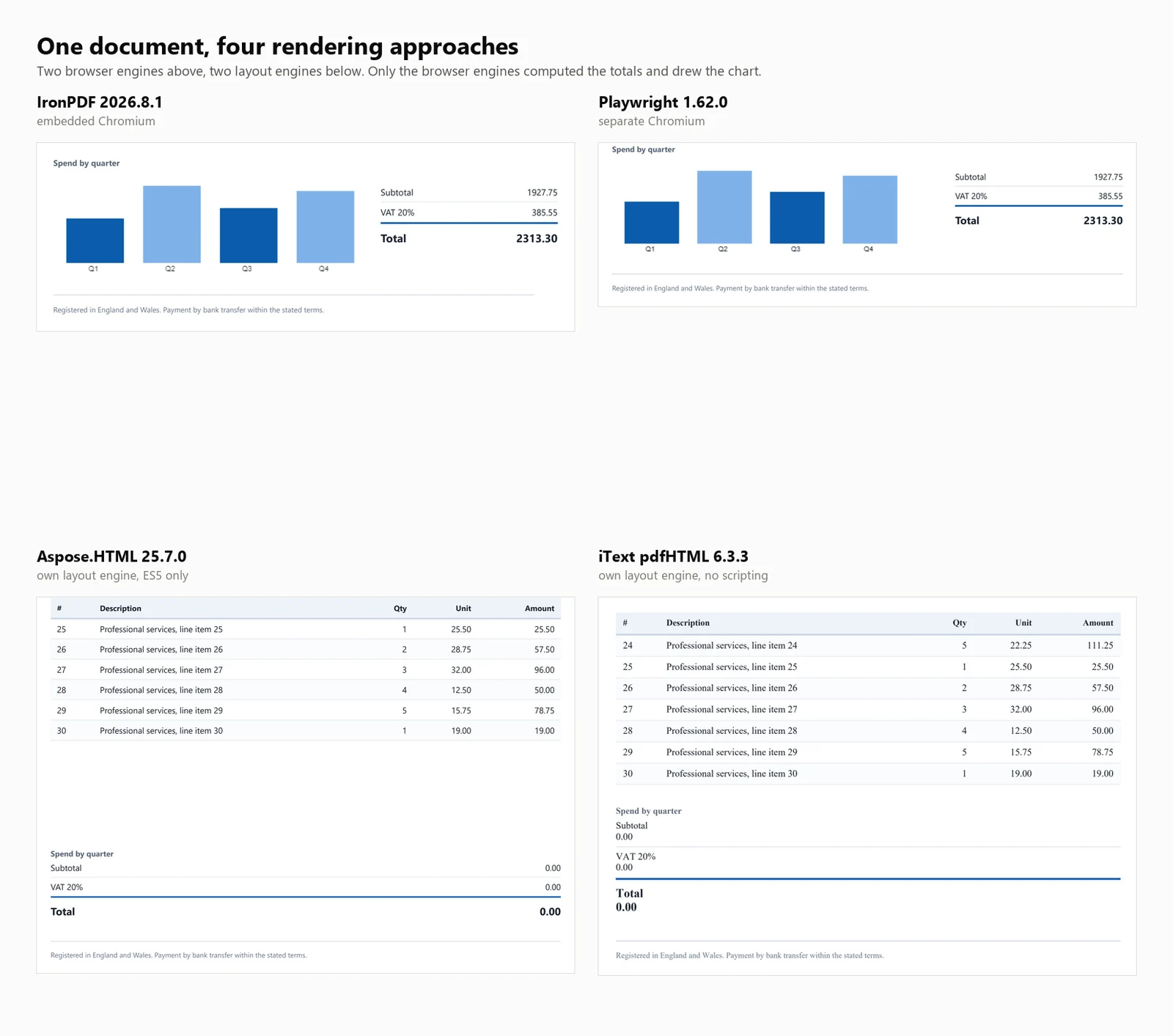

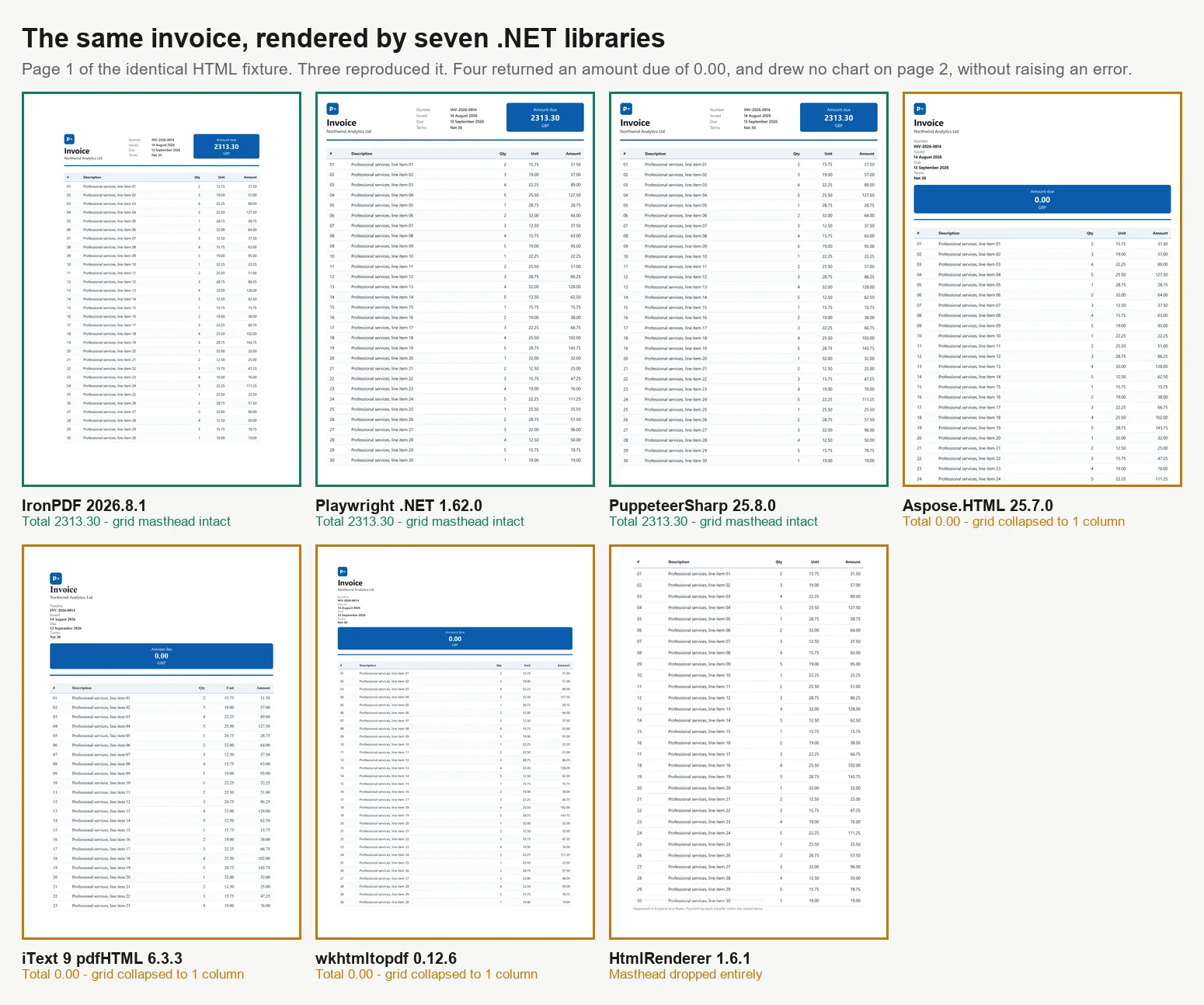

The finding that matters more than any of the above: 4 of the 7 libraries produced a PDF that looked finished and was wrong. In 3 of them the invoice total read 0.00 instead of 2313.30. The fourth, HtmlRenderer, silently dropped the amount due, the totals and the chart. No exception was raised in any case, and nothing in the output said so.
This guide presents 7 methods to convert HTML to PDF in .NET, providing code samples and quantitative benchmarks for each.
To use it, install the package, provide an HTML string to the renderer, and save the resulting PDF.
using IronPdf;
License.LicenseKey = "YOUR-TRIAL-KEY";
var pdf = new ChromePdfRenderer().RenderHtmlAsPdf("<h1>Invoice INV-2026-0814</h1>");
pdf.SaveAs("invoice.pdf");
After purchasing or registering for a 30-day IronPDF trial, enter your license key at the beginning of your application.
IronPdf.License.LicenseKey = "KEY";Imports IronPdf
IronPdf.License.LicenseKey = "KEY"Start using IronPDF in your project today with a free trial.
Install with NuGetThe quickstart above produces the following output from the test invoice used throughout this guide.
The test document includes a CSS Grid masthead, a 30-row table with zebra striping, an inline SVG, a bar chart rendered on a canvas element, and totals calculated in JavaScript at load time. The computed totals are important for testing, as engines without JavaScript support generate invoices that appear complete but display an amount due of 0.00. This behavior appears in 3 of the libraries below, and a fourth drops the totals block entirely.
Common failure scenarios are covered in the sections below.
IronPDF is a Chromium renderer that operates within your application via NuGet, eliminating the need for a separately installed browser. This distinction primarily affects deployment, which is discussed later in the guide.
Install:
From an HTML string:
// IronPDF 2026.8.1
using IronPdf;
License.LicenseKey = "YOUR-TRIAL-KEY"; // trial keys are free
string html = @"<h1>Invoice INV-2026-0814</h1>
<p>Northwind Analytics Ltd — Net 30</p>
<table><tr><th>Item</th><th>Amount</th></tr>
<tr><td>Professional services</td><td>2313.30</td></tr></table>";
var renderer = new ChromePdfRenderer();
renderer.RenderingOptions.PaperSize = IronPdf.Rendering.PdfPaperSize.A4;
renderer.RenderingOptions.PrintHtmlBackgrounds = true;
using PdfDocument pdf = renderer.RenderHtmlAsPdf(html);
pdf.SaveAs("invoice.pdf");From a live URL:
// IronPDF 2026.8.1 - only the render call changes.
using IronPdf;
License.LicenseKey = "YOUR-TRIAL-KEY";
var renderer = new ChromePdfRenderer();
using PdfDocument pdf = renderer.RenderUrlAsPdf("https://ironpdf.com/");
pdf.SaveAs("page.pdf");Recommended use: Choose IronPDF when you require browser-accurate PDF rendering without managing the infrastructure of a headless browser, such as process lifecycle, crash recovery, or container configuration.
Trade-off: It ships Chromium inside the package, so peak memory reaches 342 MB for a single cold render and 1,187 MB for 8 concurrent ones. It also starts at $999, where 4 of the other 6 are free. For a side project or a low-volume internal tool, that cost is difficult to justify.
Performance: 486 ms cold start, 161 ms median latency at 8 concurrent renders, 44.02 sustained renders per second, and 1,187 MB peak memory usage across the process tree. The test invoice was rendered accurately, including the chart and totals.
PuppeteerSharp is the .NET port of Puppeteer. It downloads a Chromium build, controls it via the DevTools protocol, and generates PDFs. It is free, MIT-licensed, actively maintained, and measured here at PuppeteerSharp (25.8.0).
Install:
From an HTML string:
// PuppeteerSharp 25.8.0
using PuppeteerSharp;
using PuppeteerSharp.Media;
string html = @"<h1>Invoice INV-2026-0814</h1>
<p>Northwind Analytics Ltd — Net 30</p>
<table><tr><th>Item</th><th>Amount</th></tr>
<tr><td>Professional services</td><td>2313.30</td></tr></table>";
// First run downloads roughly 150 MB of Chromium. Pre-fetch this at build time.
await new BrowserFetcher().DownloadAsync();
await using IBrowser browser = await Puppeteer.LaunchAsync(new LaunchOptions { Headless = true });
await using IPage page = await browser.NewPageAsync();
await page.SetContentAsync(html, new SetContentOptions
{
WaitUntil = new[] { WaitUntilNavigation.Load }
});
await page.PdfAsync("invoice.pdf", new PdfOptions
{
Format = PaperFormat.A4,
PrintBackground = true
});From a live URL:
// PuppeteerSharp 25.8.0 - GoToAsync replaces SetContentAsync.
await using IPage page = await browser.NewPageAsync();
await page.GoToAsync("https://ironpdf.com/", new NavigationOptions
{
WaitUntil = new[] { WaitUntilNavigation.Networkidle0 }
});
await page.PdfAsync("page.pdf", new PdfOptions { Format = PaperFormat.A4, PrintBackground = true });Recommended use: Select PuppeteerSharp when budget constraints are a priority and you are comfortable managing browser processes. It delivers output identical to Chrome, as it uses the same engine.
Trade-off: You are responsible for browser process management, including lifecycle, handling orphaned processes after crashes, and configuring the sandbox. The initial run downloads approximately 150 MB of Chromium, which can fail in containers without outbound network access, so pre-fetch the browser at build time. Under load, PuppeteerSharp spawns the most processes among the measured options, reaching 40 at 16 concurrent renders.
Performance: 639 ms cold start, 507 ms median latency at 8 concurrent renders, 15.60 sustained renders per second, and 1,293 MB peak memory usage across the process tree. The test invoice was rendered correctly.
Playwright for .NET is Microsoft's browser automation library. It uses a similar approach to Puppeteer but offers a different API, more efficient page isolation, and similar deployment considerations.
Install:
A second command installs the browser binaries.
Omitting it is the most common cause of a failed first Playwright build in CI.
From an HTML string:
// Microsoft.Playwright 1.62.0
using Microsoft.Playwright;
string html = @"<h1>Invoice INV-2026-0814</h1>
<p>Northwind Analytics Ltd — Net 30</p>
<table><tr><th>Item</th><th>Amount</th></tr>
<tr><td>Professional services</td><td>2313.30</td></tr></table>";
// Run "playwright install chromium" first, or call the installer in code.
Microsoft.Playwright.Program.Main(new[] { "install", "chromium" });
using IPlaywright playwright = await Playwright.CreateAsync();
await using IBrowser browser = await playwright.Chromium.LaunchAsync();
IPage page = await browser.NewPageAsync();
await page.SetContentAsync(html, new PageSetContentOptions { WaitUntil = WaitUntilState.Load });
await page.PdfAsync(new PagePdfOptions
{
Path = "invoice.pdf",
Format = "A4",
PrintBackground = true
});From a live URL:
// Microsoft.Playwright 1.62.0 - GotoAsync replaces SetContentAsync.
IPage page = await browser.NewPageAsync();
await page.GotoAsync("https://ironpdf.com/", new PageGotoOptions
{
WaitUntil = WaitUntilState.NetworkIdle
});
await page.PdfAsync(new PagePdfOptions { Path = "page.pdf", Format = "A4", PrintBackground = true });Recommended use: Choose Playwright for .NET if you require browser-quality rendering at no cost and prefer its API, or if you already use Playwright for testing and want to avoid additional dependencies.
Trade-off: Playwright shares the same considerations as Puppeteer, including browser binaries in your image, process supervision, and an installation step in your Dockerfile. It is the steadiest engine measured here, but delivers a little over half the throughput of the embedded engine.
Performance: 720 ms cold start, 381 ms median latency at 8 concurrent renders, 20.68 sustained renders per second, and 1,122 MB peak memory usage across the process tree. The test invoice was rendered correctly.

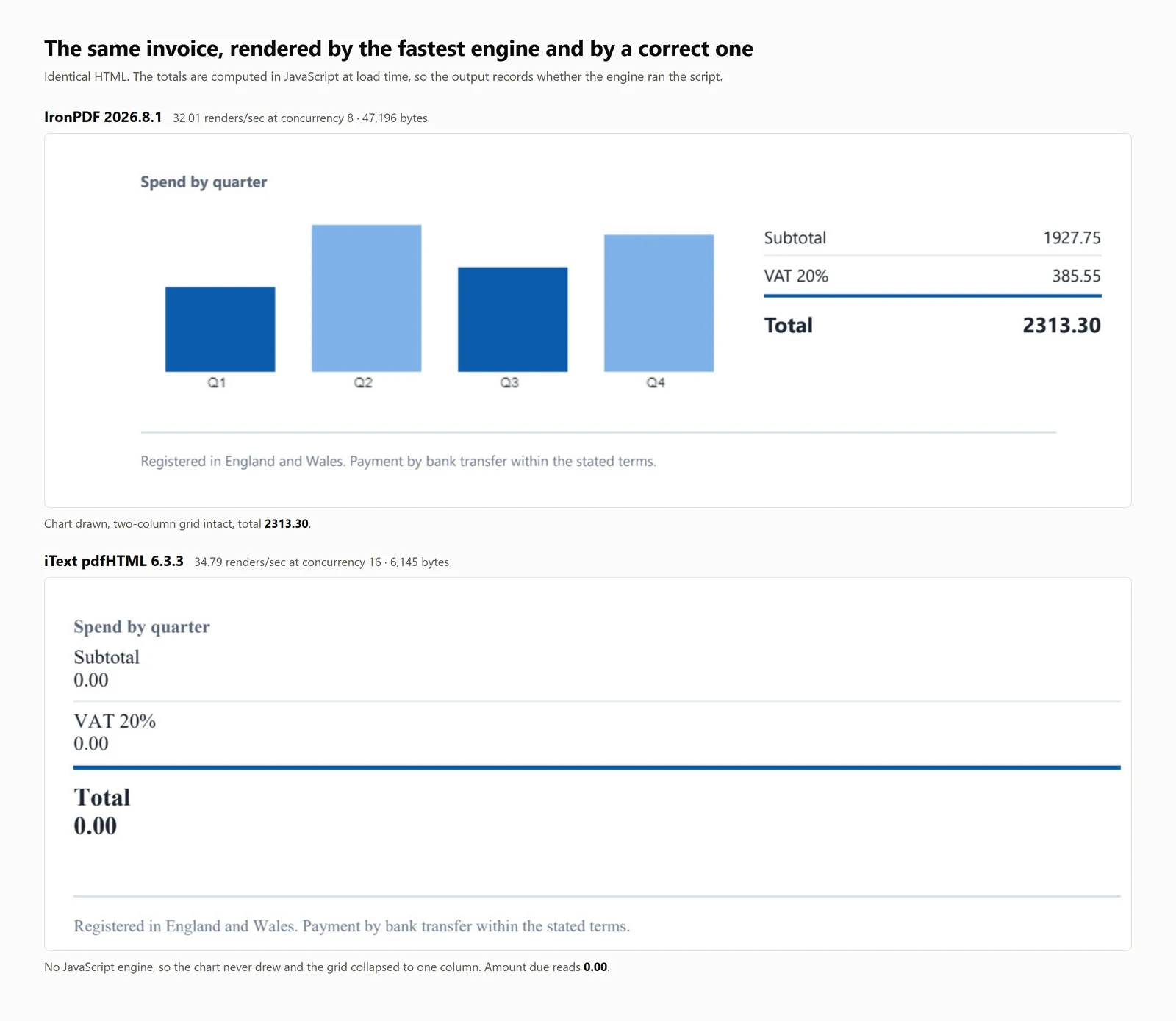

iText 9 with pdfHTML is a PDF library with an HTML conversion add-on. It uses its own layout engine instead of a browser, offering fast and predictable results within its supported features, and silent about anything outside them. The 2 packages version separately. pdfHTML (6.3.3) is the add-on that runs on iText Core (9.7.0), and that is the pairing measured here.
Install:
Note: The itext7.* package is deprecated and has been renamed to itext.*, a detail the top-ranking tutorials still get wrong. Install itext.pdfhtml, not itext7.pdfhtml. The package name carries no version number, so itext.pdfhtml resolves to the current pdfHTML release on iText 9.
From an HTML string:
// itext.pdfhtml 6.3.3 - AGPL or commercial licence.
// Note the package rename: itext7.pdfhtml is deprecated in favour of itext.pdfhtml.
using iText.Html2pdf;
string html = @"<h1>Invoice INV-2026-0814</h1>
<p>Northwind Analytics Ltd — Net 30</p>
<table><tr><th>Item</th><th>Amount</th></tr>
<tr><td>Professional services</td><td>2313.30</td></tr></table>";
using var output = new FileStream("invoice.pdf", FileMode.Create);
HtmlConverter.ConvertToPdf(html, output);
// No JavaScript engine and no canvas, so anything the page computes or draws
// at load time will be missing from the result.From a live URL: iText does not accept URLs directly. Fetch the HTML manually and set the base URI to ensure relative assets resolve correctly.
// itext.pdfhtml 6.3.3 - there is no URL method, so fetch the HTML yourself.
using iText.Html2pdf;
using var client = new HttpClient();
string html = await client.GetStringAsync("https://ironpdf.com/");
// The base URI is what lets relative images, CSS and links resolve.
var properties = new ConverterProperties();
properties.SetBaseUri("https://ironpdf.com/");
using var output = new FileStream("page.pdf", FileMode.Create);
HtmlConverter.ConvertToPdf(html, output, properties);Recommended use: Select iText if you already use it for other PDF tasks or require advanced PDF manipulation alongside HTML conversion, and prefer to avoid multiple libraries.
Trade-off: iText is available under AGPL or a paid licence only. AGPL requires open-sourcing your entire application, which makes the paid option necessary for most teams shipping closed software. Technically, iText does not execute JavaScript and offers more limited CSS support compared to browsers, as shown in the fidelity benchmarks below.
Performance: 489 ms cold start, 144 ms median latency at 8 concurrent renders, 54.30 sustained renders per second, and 332 MB peak memory usage in a single process. The invoice total was 0.00 and the chart was not rendered.
HtmlRenderer with PdfSharp is implemented in pure managed C#, with no native binaries or browser dependencies, and requires no additional container installation. It is by a wide margin the smallest and fastest option presented, but its CSS support is limited to approximately 2011 standards.
Install:
From an HTML string:
// HtmlRenderer.PdfSharp 1.6.1 - pure managed, no native binaries at all.
using TheArtOfDev.HtmlRenderer.PdfSharp;
string html = @"<h1>Invoice INV-2026-0814</h1>
<p>Northwind Analytics Ltd — Net 30</p>
<table><tr><th>Item</th><th>Amount</th></tr>
<tr><td>Professional services</td><td>2313.30</td></tr></table>";
PdfSharp.Pdf.PdfDocument pdf = PdfGenerator.GeneratePdf(html, PdfSharp.PageSize.A4);
pdf.Save("invoice.pdf");
// There is no URL method. Fetch the markup with HttpClient and pass the string.
// CSS support stops well short of Flexbox and Grid, and there is no JavaScript.From a live URL: there is no method for direct URL input. Retrieve the HTML manually and pass it as a string.
Recommended use: Choose HtmlRenderer with PdfSharp only where native binaries are strictly prohibited, such as regulated or air-gapped environments, and only for a template that computes nothing at load time. It is 1 of 3 options here that ship no native binaries, alongside iText 9 and Aspose.HTML, and on this invoice it dropped the masthead, the totals block and the chart.
Trade-off: HtmlRenderer does not support JavaScript, Flexbox, or CSS Grid. For fixed, simple templates, it may be sufficient, and its 23 ms median latency is unmatched, in a single process. However, HTML designed for modern browsers will not render correctly. In testing, it omitted the CSS Grid masthead, totals block, and chart, and compressed 2 pages onto 1, causing content overlap.
HtmlRenderer is the fastest engine measured but cannot render modern CSS. Both factors should be considered in your decision.
Performance: 157 ms cold start, 23 ms median latency at 8 concurrent renders, 327.09 sustained renders per second, 166 MB peak memory usage, and a single process. The output was a single page missing the masthead, totals, and chart.

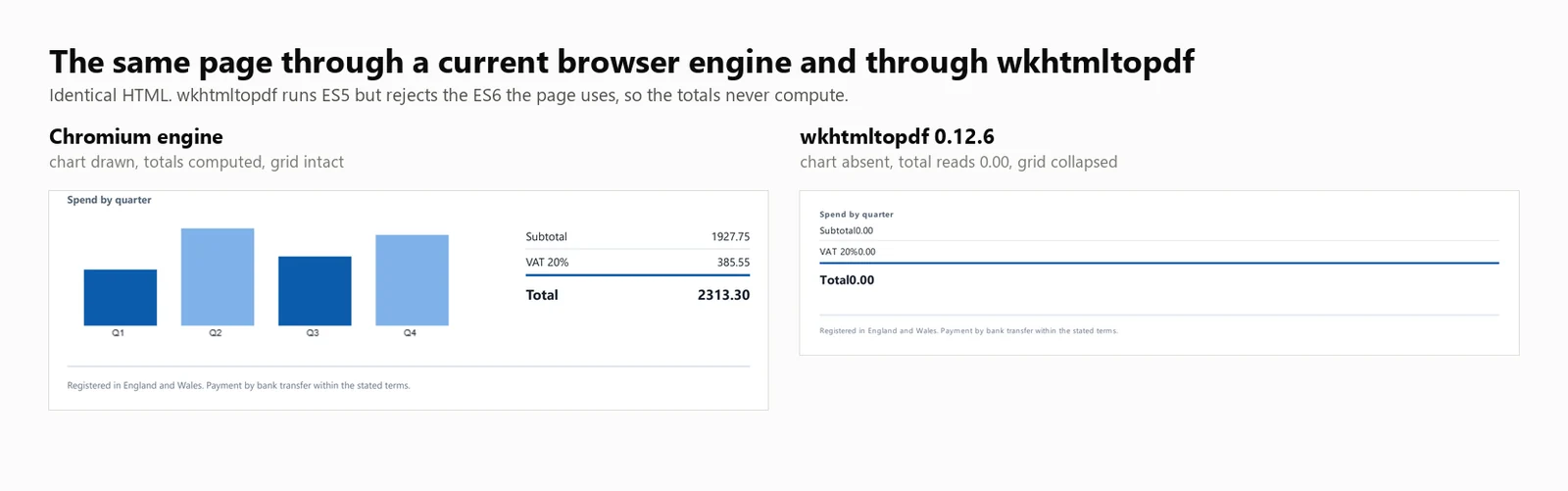

wkhtmltopdf is a command-line tool based on an older Qt WebKit engine, commonly integrated with .NET via DinkToPdf. There is no NuGet installation for the engine itself, so it must be shipped as a binary with your application. DinkToPdf serves as the wrapper, though alternatives exist.
From an HTML string:
// wkhtmltopdf 0.12.6 via DinkToPdf. The engine is archived; the native
// libwkhtmltox binaries must be shipped alongside your application.
using DinkToPdf;
using DinkToPdf.Contracts;
string html = @"<h1>Invoice INV-2026-0814</h1>
<p>Northwind Analytics Ltd — Net 30</p>
<table><tr><th>Item</th><th>Amount</th></tr>
<tr><td>Professional services</td><td>2313.30</td></tr></table>";
IConverter converter = new SynchronizedConverter(new PdfTools());
var document = new HtmlToPdfDocument
{
GlobalSettings = { PaperSize = PaperKind.A4, Out = "invoice.pdf" },
Objects = { new ObjectSettings { HtmlContent = html } }
};
converter.Convert(document);From a live URL:
// wkhtmltopdf 0.12.6 via DinkToPdf - swap HtmlContent for Page.
var document = new HtmlToPdfDocument
{
GlobalSettings = { PaperSize = PaperKind.A4, Out = "page.pdf" },
Objects = { new ObjectSettings { Page = "https://ironpdf.com/" } }
};
converter.Convert(document);Project status: The wkhtmltopdf repository was archived in January 2023, with the last stable release (0.12.6) in June 2020, built on Qt (4.8.5). Its rendering is fixed at approximately 2013 web standards and it no longer receives security updates.
Recommended use: Continue using wkhtmltopdf if it is already in production, renders your documents correctly, and your templates are static. Migration is unnecessary without a functional requirement.
Trade-off: wkhtmltopdf cannot render layouts that rely on Flexbox or newer CSS features, and it does not receive security patches.
JavaScript support: wkhtmltopdf executes ES5 JavaScript but does not support ES6. A direct test on this build executed ES5 successfully and threw on ES6, because document.querySelectorAll(...).forEach is not supported by the Qt (4.8.5) engine. As a result, the test invoice, which uses this call, displayed a placeholder total of 0.00 without any visible error. Templates written to an ES5 baseline compute correctly, and those using modern JavaScript do not.
Performance: 424 ms cold start, 486 ms median latency at 8 concurrent renders, 16.03 sustained renders per second, and 482 MB peak memory usage across the process tree. The invoice total was 0.00 and the chart was not rendered.
The above figures are based on running wkhtmltopdf.exe as a command-line tool, with 1 process per render. The DinkToPdf wrapper uses the same engine in-process but serializes all calls through SynchronizedConverter, limiting concurrency scalability.
Aspose.HTML for .NET has its own rendering engine rather than a browser, and it sits inside a document suite that also covers Word, Excel, and PowerPoint. For teams that already buy from 1 vendor, that means 1 support contract and 1 purchase order instead of integrating several libraries and tracking separate renewals.
Install:
From an HTML string:
// Aspose.HTML for .NET 25.7.0 - commercial licence, applied from a .lic file.
using Aspose.Html;
using Aspose.Html.Converters;
using Aspose.Html.Saving;
new License().SetLicense("Aspose.HTMLProductFamily.lic");
string html = @"<h1>Invoice INV-2026-0814</h1>
<p>Northwind Analytics Ltd — Net 30</p>
<table><tr><th>Item</th><th>Amount</th></tr>
<tr><td>Professional services</td><td>2313.30</td></tr></table>";
// The second argument is the base URL relative assets resolve against.
using var doc = new HTMLDocument(html, ".");
Converter.ConvertHTML(doc, new PdfSaveOptions(), "invoice.pdf");
// Its own rendering stack, not a browser: ES5 runs, ES6 throws, so anything the
// page computes with modern syntax is left at its initial value.From a live URL:
// Aspose.HTML 25.7.0 - only the HTMLDocument constructor changes.
using Aspose.Html;
using Aspose.Html.Converters;
using Aspose.Html.Saving;
new License().SetLicense("Aspose.HTMLProductFamily.lic");
using var doc = new HTMLDocument("https://ironpdf.com/");
Converter.ConvertHTML(doc, new PdfSaveOptions(), "page.pdf");Recommended use: Choose Aspose.HTML when you are already standardized on Aspose for other formats and want HTML conversion under the same contract, on templates that do not depend on modern JavaScript.
Trade-off: It is a paid library with no free tier, and its rendering belongs with the layout engines rather than the browsers. Aspose.HTML was benchmarked under a Professional license and its figures appear in every table below.
Performance: 1,096 ms cold start, 227 ms median latency at 8 concurrent renders, 33.98 sustained renders per second, and 334 MB peak memory usage in a single process. The invoice total was 0.00 and the chart was not rendered.
Every figure below came from 1 machine, 1 document and 1 campaign of 5 passes on a single date. All 3 are stated here so the numbers can be reproduced or dismissed on their merits.
The version column is what the harness read back out of the loaded assembly at run time, not what the article was written against, so a package resolving to something other than the pinned version would show here.
| Library | Package | Version tested | Assembly reported at run time | Engine |
|---|---|---|---|---|
| IronPDF | IronPdf | 2026.8.1 | 2026.8.0.1 | Embedded Chromium |
| Playwright .NET | Microsoft.Playwright | 1.62.0 | 1.62.0.0 | External Chromium |
| PuppeteerSharp | PuppeteerSharp | 25.8.0 | 25.8.0.0 | External Chromium |
| iText 9 with pdfHTML | itext.pdfhtml | 6.3.3 | 6.3.3.0 on iText Core 9.7.0 | Own layout engine |
| HtmlRenderer + PdfSharp | HtmlRenderer.PdfSharp | 1.6.1 | 1.6.1.0 | Own layout engine |
| wkhtmltopdf | Command-line binary | 0.12.6 | 0.12.6 | QtWebKit 5.212 on Qt 4.8.5 |
| Aspose.HTML | Aspose.HTML | 25.7.0 | 25.7.0.0 | Own layout engine |
| Item | Value |
|---|---|
| CPU | 24-core / 32-thread x64 desktop, 3.2 GHz |
| Memory | 64 GB |
| Operating system | Windows 11 x64, build 10.0.26200 |
| Runtime | .NET 10.0.11, Release build |
| Machine state | Idle, no other applications running |
| Test date | 3 September 2026 |
| Sample size | 8,960 timed renders: 7 engines x 4 concurrency levels x 64 renders x 5 passes |
| Cold-start launches | 105: 7 engines x 3 launches x 5 passes |
| Reported figure | Median of the 5 passes, never a best case |
Every engine was handed the identical 10,260-character HTML document, in memory, as a string. No engine received a file path, a URL or a warmed cache the others did not get. The document is in the download below, so it can be diffed rather than taken on trust.
Load, not network idle. PuppeteerSharp has deprecated the network-idle conditions for SetContent, so Load is the only condition all 3 support identically.MemoryStream so it pays no disk cost the others avoid.Timing boundary: The stopwatch starts when the render call is made and stops when the engine returns PDF bytes. It excludes engine construction and browser launch, which are measured separately as cold start, and it excludes writing to disk, which none of the engines were asked to do. Throughput is successful renders divided by wall-clock seconds for the whole batch, not the sum of individual render times, because only the first describes what a service delivers under load.
Memory definition: Peak working set summed across the whole process tree, sampled every 100 ms, where the tree is every process descended from the benchmark process by real parent and child ancestry. It is a peak rather than an average because the peak is what decides whether a container survives its busiest second. A browser engine keeps most of its memory in spawned children, so measuring only the .NET process would flatter whichever engine spawns the most.
What counts as a failure: Any render returning fewer than 500 bytes. Failures are removed from the throughput numerator and reported separately, so an engine cannot post a high rate by returning nothing. Across the 35 invocations behind these tables, no engine recorded a single failure at any level.
All speed and memory values in the following tables are based on actual measurements. Where a library was not measured, the table indicates this explicitly.
| Library | Cold start | Warm p50 at 8 | Throughput at 8 | Peak memory at 8 | Renders the test invoice | License |
|---|---|---|---|---|---|---|
| IronPDF (2026.8.1) | 486 ms | 161 ms | 44.02/s | 1,187 MB | Correct | From $999 |
| Playwright .NET (1.62.0) | 720 ms | 381 ms | 20.68/s | 1,122 MB | Correct | MIT |
| PuppeteerSharp (25.8.0) | 639 ms | 507 ms | 15.60/s | 1,293 MB | Correct | MIT |
| iText 9 pdfHTML (6.3.3) | 489 ms | 144 ms | 54.30/s | 332 MB | Total 0.00, no chart | AGPL or paid |
| HtmlRenderer + PdfSharp (1.6.1) | 157 ms | 23 ms | 327.09/s | 166 MB | No masthead, no totals, no chart | Free, BSD |
| wkhtmltopdf (0.12.6) | 424 ms | 486 ms | 16.03/s | 482 MB | Total 0.00, no chart | LGPL, archived |
| Aspose.HTML (25.7.0) | 1,096 ms | 227 ms | 33.98/s | 334 MB | Total 0.00, no chart | Paid |
Tested on: 24-core / 32-thread x64 desktop CPU · 3.2 GHz · 64 GB RAM · Windows 11 x64 · .NET 10 · IronPDF (2026.8.1) · last verified September 2026
Interpret throughput figures alongside rendering accuracy. Of the 7 measured engines, 4 omitted significant rendering work, and the 2 fastest results in the table, iText 9 at 54.30/s and HtmlRenderer at 327.09/s, are both from that group.
The following sections provide detailed figures for each summary table entry.
Every engine rendered the same 2-page invoice, described above. What makes it a measuring instrument rather than a sample is the totals. They ship in the markup as placeholder 0.00 values and are computed in JavaScript at load time, so an engine that ran the script writes 2313.30 into the text layer and an engine that did not leaves the placeholder where a regular expression finds it.
using System.Text;
// The benchmark document. Two pages, a CSS Grid masthead, a 30-row table,
// an inline SVG mark, and a bar chart drawn on a canvas element.
//
// The totals ship as placeholder zeroes and are computed in JavaScript at load
// time, so the output itself records whether the engine ran the script. An
// engine with no script engine produces a clean invoice whose total reads 0.00.
static class TestDocument
{
public static string Invoice()
{
var rows = new StringBuilder();
for (int i = 1; i <= 30; i++)
{
decimal unit = 12.50m + (i % 7) * 3.25m;
int qty = 1 + (i % 5);
rows.Append($@"
<tr>
<td>{i:00}</td>
<td>Professional services, line item {i:00}</td>
<td class=""num"">{qty}</td>
<td class=""num"">{unit:0.00}</td>
<td class=""num"">{unit * qty:0.00}</td>
</tr>");
}
return $@"<!DOCTYPE html>
<html lang=""en"">
<head>
<meta charset=""utf-8"">
<title>Invoice INV-2026-0814</title>
<style>
body {{ font-family: 'Segoe UI', 'Helvetica Neue', Arial, sans-serif; color:#1c2430; padding:32px; font-size:12px; }}
.masthead {{ display:grid; grid-template-columns: 1fr 1fr 220px; gap:20px;
border-bottom:3px solid #0b5cab; padding-bottom:16px; margin-bottom:22px; }}
.badge {{ background:#0b5cab; color:#fff; padding:10px 14px; border-radius:6px; text-align:center; }}
table {{ width:100%; border-collapse:collapse; }}
th {{ background:#eef3f9; text-align:left; padding:7px 9px; border-bottom:2px solid #c6d4e5; }}
td {{ padding:6px 9px; border-bottom:1px solid #e7ecf3; }}
tr:nth-child(even) td {{ background:#fafbfd; }}
td.num, th.num {{ text-align:right; font-variant-numeric:tabular-nums; }}
.chartwrap {{ margin-top:26px; display:grid; grid-template-columns:1fr 240px; gap:24px; }}
.totals {{ list-style:none; padding:0; }}
.totals li {{ display:flex; justify-content:space-between; padding:5px 0; border-bottom:1px solid #e7ecf3; }}
.totals li.grand {{ font-weight:700; font-size:15px; border-top:2px solid #0b5cab; }}
</style>
</head>
<body>
<header class=""masthead"">
<div>
<svg width=""34"" height=""34"" viewBox=""0 0 34 34"">
<rect width=""34"" height=""34"" rx=""7"" fill=""#0b5cab""/>
<circle cx=""24"" cy=""17"" r=""3.2"" fill=""#7fb2e8""/>
</svg>
<h1>Invoice</h1>
</div>
<dl><dt>Number</dt><dd>INV-2026-0814</dd><dt>Terms</dt><dd>Net 30</dd></dl>
<div class=""badge"">Amount due<span id=""badge-total"">0.00</span>GBP</div>
</header>
<table>
<thead>
<tr><th>#</th><th>Description</th><th class=""num"">Qty</th><th class=""num"">Unit</th><th class=""num"">Amount</th></tr>
</thead>
<tbody>{rows}
</tbody>
</table>
<section class=""chartwrap"">
<div>
<strong>Spend by quarter</strong>
<canvas id=""chart"" width=""420"" height=""140""></canvas>
</div>
<ul class=""totals"">
<li><span>Subtotal</span><span id=""sub"">0.00</span></li>
<li><span>VAT 20%</span><span id=""vat"">0.00</span></li>
<li class=""grand""><span>Total</span><span id=""tot"">0.00</span></li>
</ul>
</section>
<script>
// Totals are computed here, not in the markup. An engine that skips
// JavaScript leaves the placeholder zeroes in the output.
var sub = 0;
document.querySelectorAll('tbody tr').forEach(function (tr) {{
sub += parseFloat(tr.lastElementChild.textContent);
}});
var vat = sub * 0.2, tot = sub + vat;
var f = function (n) {{ return n.toFixed(2); }};
document.getElementById('sub').textContent = f(sub);
document.getElementById('vat').textContent = f(vat);
document.getElementById('tot').textContent = f(tot);
document.getElementById('badge-total').textContent = f(tot);
// A canvas chart, the way a dashboard library would draw one.
var data = [sub * 0.18, sub * 0.31, sub * 0.22, sub * 0.29];
var c = document.getElementById('chart').getContext('2d');
var max = Math.max.apply(null, data), bw = 78, gap = 26, base = 128;
data.forEach(function (v, i) {{
var h = Math.round((v / max) * 104);
c.fillStyle = i % 2 ? '#7fb2e8' : '#0b5cab';
c.fillRect(18 + i * (bw + gap), base - h, bw, h);
c.fillStyle = '#1c2430';
c.font = '10px sans-serif';
c.fillText('Q' + (i + 1), 18 + i * (bw + gap) + 30, base + 11);
}});
</script>
</body>
</html>";
}
}WorkingSet64 summed across the process tree, sampled every 100 ms. It is a peak rather than an average because the peak is what decides whether a container survives its busiest second.using System;
using System.Collections.Generic;
using System.Diagnostics;
using System.Linq;
using System.Threading;
using System.Threading.Tasks;
const int TotalRenders = 64;
int[] levels = { 1, 4, 8, 16 };
string html = TestDocument.Invoice();
IEngine engine = Engines.Create("ironpdf");
await engine.InitAsync();
// Warm the engine so the sweep measures steady state rather than a cold start
// smeared across the first few results.
for (int i = 0; i < 5; i++) await engine.RenderAsync(html);
foreach (int concurrency in levels)
{
var sampler = new TreeMemorySampler();
var latencies = new List<double>(TotalRenders);
int failures = 0;
object gate = new();
GC.Collect();
GC.WaitForPendingFinalizers();
sampler.Start();
var wall = Stopwatch.StartNew();
using (var semaphore = new SemaphoreSlim(concurrency))
{
IEnumerable<Task> work = Enumerable.Range(0, TotalRenders).Select(async _ =>
{
await semaphore.WaitAsync();
var perRender = Stopwatch.StartNew();
try
{
byte[] pdf = await engine.RenderAsync(html);
perRender.Stop();
// An engine that returns quickly by returning nothing must not
// be rewarded with a throughput number.
if (pdf == null || pdf.Length < 500) lock (gate) failures++;
else lock (gate) latencies.Add(perRender.Elapsed.TotalMilliseconds);
}
catch
{
lock (gate) failures++;
}
finally { semaphore.Release(); }
});
await Task.WhenAll(work);
}
wall.Stop();
sampler.Stop();
latencies.Sort();
double throughput = (TotalRenders - failures) / wall.Elapsed.TotalSeconds;
Console.WriteLine(
$"C={concurrency,-2} {throughput,6:0.00} rend/s " +
$"p50 {Percentile(latencies, 50),6:0} ms " +
$"p95 {Percentile(latencies, 95),6:0} ms " +
$"peak {sampler.PeakBytes / 1024.0 / 1024.0,6:0} MB " +
$"procs {sampler.PeakProcessCount,2} fail {failures}");
}
await engine.DisposeAsync();
// Report percentiles rather than means. A mean hides the tail, and the tail is
// what your users experience.
static double Percentile(List<double> sorted, int p)
{
if (sorted.Count == 0) return -1;
double rank = (p / 100.0) * (sorted.Count - 1);
int low = (int)Math.Floor(rank);
int high = (int)Math.Ceiling(rank);
return low == high
? sorted[low]
: sorted[low] + (rank - low) * (sorted[high] - sorted[low]);
}using System;
using System.Diagnostics;
using System.Globalization;
using System.Threading.Tasks;
// Cold start cannot be measured inside a process that has already rendered.
// The parent spawns this same binary with --cold, so every reading is a real
// process start rather than a first call inside an already-warm runtime.
// --- child mode: initialise one engine, render once, print, exit ------------
if (args.Length == 2 && args[0] == "--cold")
{
var sampler = new TreeMemorySampler();
sampler.Start();
var sw = Stopwatch.StartNew();
IEngine engine = Engines.Create(args[1]);
await engine.InitAsync();
byte[] first = await engine.RenderAsync(TestDocument.Invoice());
sw.Stop();
sampler.Stop();
Console.WriteLine($"COLD_MS={sw.Elapsed.TotalMilliseconds:0.0}");
Console.WriteLine($"COLD_PEAK_MB={sampler.PeakBytes / 1024.0 / 1024.0:0.0}");
Console.WriteLine($"BYTES={first.Length}");
try { await engine.DisposeAsync(); } catch { }
Environment.Exit(0);
}
// --- parent mode: run three fresh children and take the minimum -------------
static (double ms, double peakMb) RunColdChild(string engineId)
{
var psi = new ProcessStartInfo
{
FileName = Environment.ProcessPath,
RedirectStandardOutput = true,
RedirectStandardError = true,
UseShellExecute = false
};
psi.ArgumentList.Add("--cold");
psi.ArgumentList.Add(engineId);
using Process p = Process.Start(psi);
string output = p.StandardOutput.ReadToEnd();
p.WaitForExit(180_000);
double ms = -1, mb = 0;
foreach (string line in output.Split('\n'))
{
if (line.StartsWith("COLD_MS="))
double.TryParse(line.Substring(8).Trim(), NumberStyles.Float, CultureInfo.InvariantCulture, out ms);
if (line.StartsWith("COLD_PEAK_MB="))
double.TryParse(line.Substring(13).Trim(), NumberStyles.Float, CultureInfo.InvariantCulture, out mb);
}
return (ms, mb);
}
// Take the minimum of three, not the mean. The first run of any engine absorbs
// one-time costs - assembly loading, a browser download, a native extraction -
// which are real deployment costs but are not per-start costs, and averaging
// them in blurs two different numbers together.
var readings = new List<double>();
double peak = 0;
for (int i = 0; i < 3; i++)
{
var (ms, mb) = RunColdChild("ironpdf");
if (ms > 0) { readings.Add(ms); peak = Math.Max(peak, mb); }
}
Console.WriteLine($"cold start (best of {readings.Count}): {readings.Min():0} ms, peak {peak:0} MB");The harness applies these controls to every measurement.
GC.Collect and WaitForPendingFinalizers run before each level.Per-engine configuration is set in the adapters. Each decision below avoids giving any engine a configuration advantage.
Load, the same A4 paper size and printed backgrounds.MemoryStream through the library's own stream provider, so it pays no disk I/O the others avoid.using System;
using System.Collections.Generic;
using System.Diagnostics;
using System.Runtime.InteropServices;
using System.Threading;
using System.Threading.Tasks;
// Samples the whole process tree, not just the .NET process.
//
// Several rendering libraries keep most of their memory in spawned browser
// processes, so measuring only the managed side flatters whichever engine
// spawns the most children. Two things have to be right for the reading to be
// fair, and both are easy to get wrong.
//
// First, attribution is by real ancestry rather than by process name. Matching
// a list of renderer names and counting anything that started after the
// benchmark did over-counts on any machine with a browser or an Electron
// application open: a library that spawns nothing reports several processes and
// a few hundred spare MB.
//
// Second, the tree and its memory are read from one system-wide snapshot.
// Asking the operating system about each process in turn cannot keep up with an
// engine that starts and exits renderers faster than the sample interval: the
// child is in the process list, and gone by the time its working set is read.
// NtQuerySystemInformation returns process id, parent id, creation time and
// working set for every process in a single call, so the shape of the tree and
// the memory in it come from the same instant.
sealed class TreeMemorySampler
{
// pid -> the creation time it had when it was claimed. Windows recycles
// process ids quickly and these engines churn through short-lived children,
// so a pid on its own is not an identity.
readonly Dictionary<int, long> _ours = new Dictionary<int, long>();
long _ourCreateTime = -1;
CancellationTokenSource _cts;
Task _loop;
public long PeakBytes { get; private set; }
public int PeakProcessCount { get; private set; }
public void Start()
{
PeakBytes = 0;
PeakProcessCount = 0;
_cts = new CancellationTokenSource();
CancellationToken token = _cts.Token;
_loop = Task.Run(async () =>
{
while (!token.IsCancellationRequested)
{
Sample();
try { await Task.Delay(100, token); }
catch (TaskCanceledException) { return; }
}
}, token);
}
public void Stop()
{
Sample(); // one final reading, in case the peak landed late
_cts?.Cancel();
try { _loop?.Wait(2000); } catch { }
}
void Sample()
{
List<Entry> all = Snapshot();
if (all.Count == 0) return;
int self = Environment.ProcessId;
foreach (Entry e in all)
if (e.Pid == self) { _ourCreateTime = e.CreateTime; break; }
if (_ourCreateTime < 0) return;
_ours[self] = _ourCreateTime;
// Drop any claim whose pid now carries a different creation time: that
// pid was recycled and the process wearing it belongs to someone else.
var live = new Dictionary<int, long>(all.Count);
foreach (Entry e in all) live[e.Pid] = e.CreateTime;
var recycled = new List<int>();
foreach (KeyValuePair<int, long> claim in _ours)
{
long now;
if (live.TryGetValue(claim.Key, out now) && now != claim.Value)
recycled.Add(claim.Key);
}
foreach (int pid in recycled) _ours.Remove(pid);
// Grow the owned set until it stops growing: a child seen in this
// snapshot may itself be the parent of another process in it. Claims
// survive the process exiting, so a grandchild still counts once the
// child that launched it is gone.
bool added = true;
while (added)
{
added = false;
foreach (Entry e in all)
{
if (_ours.ContainsKey(e.Pid)) continue;
long parentClaim;
if (!_ours.TryGetValue(e.Ppid, out parentClaim)) continue;
// A parent only vouches for children started after it.
if (e.CreateTime < parentClaim) continue;
_ours[e.Pid] = e.CreateTime;
added = true;
}
}
long total = 0;
int count = 0;
foreach (Entry e in all)
{
long claim;
if (!_ours.TryGetValue(e.Pid, out claim) || claim != e.CreateTime) continue;
total += e.WorkingSet;
count++;
}
// Track the peak, not the average. The peak is what decides whether
// the container survives its busiest second.
if (total > PeakBytes) PeakBytes = total;
if (count > PeakProcessCount) PeakProcessCount = count;
}
readonly struct Entry
{
public readonly int Pid, Ppid;
public readonly long CreateTime, WorkingSet;
public Entry(int pid, int ppid, long create, long ws)
{
Pid = pid; Ppid = ppid; CreateTime = create; WorkingSet = ws;
}
}
// ---- one atomic system-wide process snapshot ---------------------------
// SYSTEM_PROCESS_INFORMATION, x64 field offsets: CreateTime 32,
// UniqueProcessId 80, InheritedFromUniqueProcessId 88, WorkingSetSize 144.
const int SystemProcessInformation = 5;
const uint STATUS_INFO_LENGTH_MISMATCH = 0xC0000004;
[DllImport("ntdll.dll")]
static extern uint NtQuerySystemInformation(int systemInformationClass,
IntPtr systemInformation, int systemInformationLength, out int returnLength);
static int _bufferSize = 1 << 20;
static List<Entry> Snapshot()
{
var list = new List<Entry>(400);
IntPtr buffer = IntPtr.Zero;
try
{
for (int attempt = 0; attempt < 8; attempt++)
{
if (buffer != IntPtr.Zero) Marshal.FreeHGlobal(buffer);
buffer = Marshal.AllocHGlobal(_bufferSize);
int needed;
uint status = NtQuerySystemInformation(
SystemProcessInformation, buffer, _bufferSize, out needed);
if (status == 0)
{
long offset = 0;
while (true)
{
IntPtr entry = buffer + (int)offset;
int next = Marshal.ReadInt32(entry, 0);
long create = Marshal.ReadInt64(entry, 32);
int pid = (int)Marshal.ReadIntPtr(entry, 80);
int ppid = (int)Marshal.ReadIntPtr(entry, 88);
long ws = (long)Marshal.ReadIntPtr(entry, 144);
if (pid != 0) list.Add(new Entry(pid, ppid, create, ws));
if (next == 0) break;
offset += next;
}
return list;
}
if (status != STATUS_INFO_LENGTH_MISMATCH) return list;
_bufferSize = Math.Max(needed + (64 * 1024), _bufferSize * 2);
}
}
catch { }
finally { if (buffer != IntPtr.Zero) Marshal.FreeHGlobal(buffer); }
return list;
}
}using System;
using System.IO;
using System.Threading.Tasks;
using IronPdf;
using PuppeteerSharp.Media;
using PW = Microsoft.Playwright;
using PS = PuppeteerSharp;
using iText.Html2pdf;
// One interface so a single sweep loop drives every engine. Anyone reading your
// results will check these adapters, so the fairness decisions belong here and
// should be stated alongside the numbers.
interface IEngine
{
string Version { get; }
Task InitAsync();
Task<byte[]> RenderAsync(string html);
Task DisposeAsync();
}
static class Engines
{
public static readonly string[] All =
{ "ironpdf", "puppeteersharp", "playwright", "itext-pdfhtml" };
public static IEngine Create(string id) => id switch
{
"ironpdf" => new IronPdfEngine(),
"puppeteersharp" => new PuppeteerEngine(),
"playwright" => new PlaywrightEngine(),
"itext-pdfhtml" => new ITextEngine(),
_ => throw new ArgumentException("unknown engine: " + id)
};
}
// One renderer instance, reused across every render. ChromePdfRenderer is
// thread-safe and stateless per render, so this is both the documented pattern
// and what a real service would do.
sealed class IronPdfEngine : IEngine
{
ChromePdfRenderer _renderer;
public string Version => typeof(ChromePdfRenderer).Assembly.GetName().Version?.ToString();
public Task InitAsync()
{
_renderer = new ChromePdfRenderer();
_renderer.RenderingOptions.PaperSize = IronPdf.Rendering.PdfPaperSize.A4;
_renderer.RenderingOptions.PrintHtmlBackgrounds = true;
_renderer.RenderingOptions.CssMediaType = IronPdf.Rendering.PdfCssMediaType.Print;
return Task.CompletedTask;
}
public async Task<byte[]> RenderAsync(string html)
{
using PdfDocument pdf = await _renderer.RenderHtmlAsPdfAsync(html);
return pdf.BinaryData;
}
public Task DisposeAsync() => Task.CompletedTask;
}
// One browser, a fresh page per render. Page-per-render is what the Puppeteer
// documentation recommends and it is the cheaper of the two options, so it is
// the favourable choice here rather than the convenient one.
sealed class PuppeteerEngine : IEngine
{
PS.IBrowser _browser;
public string Version => typeof(PS.Puppeteer).Assembly.GetName().Version?.ToString();
public async Task InitAsync()
{
await new PS.BrowserFetcher().DownloadAsync();
_browser = await PS.Puppeteer.LaunchAsync(new PS.LaunchOptions { Headless = true });
}
public async Task<byte[]> RenderAsync(string html)
{
await using PS.IPage page = await _browser.NewPageAsync();
// Load, not networkidle. PuppeteerSharp deprecated the networkidle
// conditions for SetContent, and every engine here is given the same
// wait condition so the comparison stays like for like.
await page.SetContentAsync(html, new PS.SetContentOptions
{
WaitUntil = new[] { PS.WaitUntilNavigation.Load }
});
return await page.PdfDataAsync(new PS.PdfOptions
{
Format = PaperFormat.A4,
PrintBackground = true
});
}
public async Task DisposeAsync()
{
if (_browser != null) await _browser.CloseAsync();
}
}
sealed class PlaywrightEngine : IEngine
{
PW.IPlaywright _playwright;
PW.IBrowser _browser;
public string Version => typeof(PW.Playwright).Assembly.GetName().Version?.ToString();
public async Task InitAsync()
{
Microsoft.Playwright.Program.Main(new[] { "install", "chromium" });
_playwright = await PW.Playwright.CreateAsync();
_browser = await _playwright.Chromium.LaunchAsync(
new PW.BrowserTypeLaunchOptions { Headless = true });
}
public async Task<byte[]> RenderAsync(string html)
{
PW.IPage page = await _browser.NewPageAsync();
try
{
await page.SetContentAsync(html, new PW.PageSetContentOptions
{
WaitUntil = PW.WaitUntilState.Load
});
return await page.PdfAsync(new PW.PagePdfOptions
{
Format = "A4",
PrintBackground = true
});
}
finally { await page.CloseAsync(); }
}
public async Task DisposeAsync()
{
if (_browser != null) await _browser.CloseAsync();
_playwright?.Dispose();
}
}
// No browser and no JavaScript engine. It is in the benchmark as the control
// that shows what the browser engines are paying for - and what they buy.
sealed class ITextEngine : IEngine
{
// pdfHTML and iText Core ship as separate packages on independent version
// lines, so report both: pdfHTML 6.x is the add-on that runs on Core 9.x.
public string Version =>
typeof(HtmlConverter).Assembly.GetName().Version?.ToString() + "+core" +
typeof(iText.Kernel.Pdf.PdfDocument).Assembly.GetName().Version?.ToString();
public Task InitAsync() => Task.CompletedTask;
public Task<byte[]> RenderAsync(string html) => Task.Run(() =>
{
using var stream = new MemoryStream();
HtmlConverter.ConvertToPdf(html, stream);
return stream.ToArray();
});
public Task DisposeAsync() => Task.CompletedTask;
}The table rests on 8,960 timed renders, 7 engines across 4 concurrency levels at 64 renders each, repeated over 5 complete passes, alongside 105 cold-start process launches. Every published figure is the median of those 5 passes.
| Library | Slowest pass | Median | Fastest pass | Spread |
|---|---|---|---|---|
| wkhtmltopdf | 15.98/s | 16.03/s | 16.85/s | 5.5% |
| IronPDF | 40.71/s | 44.02/s | 44.31/s | 8.8% |
| iText 9 pdfHTML | 51.93/s | 54.30/s | 56.87/s | 9.5% |
| PuppeteerSharp | 14.74/s | 15.60/s | 16.21/s | 10.0% |
| Aspose.HTML | 32.31/s | 33.98/s | 35.71/s | 10.5% |
| Playwright .NET | 20.23/s | 20.68/s | 22.38/s | 10.6% |
| HtmlRenderer + PdfSharp | 290.68/s | 327.09/s | 429.45/s | 47.7% |
Tested on: 24-core / 32-thread x64 desktop CPU · 3.2 GHz · 64 GB RAM · Windows 11 x64 · .NET 10 · IronPDF (2026.8.1) · last verified September 2026
Throughput at 8 concurrent renders varied by 5.5% to 47.7% across the 5 passes. The spread is widest on the engines that finish fastest, where a few milliseconds of scheduling noise is a larger share of a short render, and tightest on the slowest, where it is not. HtmlRenderer completes a render in 23 ms and varies by 47.7%. wkhtmltopdf takes 486 ms and varies by 5.5%. Every engine that rendered the document correctly held inside 11%.
The passes ran on an otherwise idle machine, with no other applications competing for the cores. That matters more than it sounds. An earlier campaign of the same 5 passes, taken on the same desktop while ordinary applications were running, returned lower throughput on 6 of the 7 engines, by between 3% and 21%, with PuppeteerSharp and IronPDF losing the most. The exception was HtmlRenderer, which finishes a render in tens of milliseconds and came out 3% higher on the busy machine, which shows how little a single fast measurement establishes. The ordering of the engines was identical in both campaigns, and the ordering is what transfers to other hardware. The absolute rates are specific to this machine and will not.
This is the latency the first request after a deployment pays. It is rarely published, because most demonstrations use a warmed-up process.
| Library | First PDF, best of 3 | Peak during cold start |
|---|---|---|
| HtmlRenderer + PdfSharp | 157 ms | 128 MB |
| wkhtmltopdf | 424 ms | 116 MB |
| IronPDF | 486 ms | 342 MB |
| iText 9 pdfHTML | 489 ms | 130 MB |
| PuppeteerSharp | 639 ms | 539 MB |
| Playwright .NET | 720 ms | 411 MB |
| Aspose.HTML | 1,096 ms | 162 MB |
Tested on: 24-core / 32-thread x64 desktop CPU · 3.2 GHz · 64 GB RAM · Windows 11 x64 · .NET 10 · IronPDF (2026.8.1) · last verified September 2026
IronPDF is the quickest to a first PDF of everything here that reproduced the document, at 486 ms against 639 ms for PuppeteerSharp and 720 ms for Playwright, and well ahead of Aspose.HTML at 1,096 ms. That is an embedded Chromium reaching a first PDF in half a second, against 2 engines that must launch an external browser and connect to it first.
The 2 engines above it in the table are the ones with no modern browser to start. HtmlRenderer has no rendering engine of that kind at all and reaches a first PDF in 157 ms. wkhtmltopdf loads QtWebKit 5.212, far lighter than current Chromium, and takes 424 ms. both on around 120 MB against IronPDF's 342 MB, and iText 9 is 3 ms behind IronPDF at 489 ms, on 130 MB. That memory gap is the cost of carrying a browser, and it is bounded by what the browser delivers. The same half second produced an invoice with the total at 0.00 and no chart on all 3 of them, so the readings do not time the same operation.
Steady state, across the 4 concurrency levels.
| Library | Concurrency | Throughput | p50 | p95 | Peak process tree | Processes |
|---|---|---|---|---|---|---|
| IronPDF | 1 | 9.22/s | 96 ms | 181 ms | 750 MB | 6 |
| IronPDF | 4 | 31.49/s | 121 ms | 149 ms | 850 MB | 10 |
| IronPDF | 8 | 44.02/s | 161 ms | 269 ms | 1,187 MB | 15 |
| IronPDF | 16 | 40.16/s | 364 ms | 511 ms | 1,770 MB | 28 |
| Playwright .NET | 1 | 5.93/s | 167 ms | 179 ms | 511 MB | 8 |
| Playwright .NET | 4 | 16.91/s | 234 ms | 255 ms | 750 MB | 11 |
| Playwright .NET | 8 | 20.68/s | 381 ms | 426 ms | 1,122 MB | 15 |
| Playwright .NET | 16 | 21.31/s | 724 ms | 870 ms | 1,808 MB | 23 |
| PuppeteerSharp | 1 | 4.85/s | 204 ms | 224 ms | 584 MB | 11 |
| PuppeteerSharp | 4 | 11.85/s | 339 ms | 383 ms | 890 MB | 16 |
| PuppeteerSharp | 8 | 15.60/s | 507 ms | 597 ms | 1,293 MB | 24 |
| PuppeteerSharp | 16 | 15.68/s | 997 ms | 1,147 ms | 2,094 MB | 40 |
| iText 9 pdfHTML | 1 | 12.69/s | 53 ms | 220 ms | 174 MB | 1 |
| iText 9 pdfHTML | 4 | 45.69/s | 84 ms | 111 ms | 264 MB | 1 |
| iText 9 pdfHTML | 8 | 54.30/s | 144 ms | 178 ms | 332 MB | 1 |
| iText 9 pdfHTML | 16 | 58.53/s | 268 ms | 315 ms | 535 MB | 1 |
| HtmlRenderer + PdfSharp | 1 | 143.08/s | 7 ms | 8 ms | 153 MB | 1 |
| HtmlRenderer + PdfSharp | 4 | 366.96/s | 11 ms | 14 ms | 157 MB | 1 |
| HtmlRenderer + PdfSharp | 8 | 327.09/s | 23 ms | 35 ms | 166 MB | 1 |
| HtmlRenderer + PdfSharp | 16 | 309.92/s | 48 ms | 67 ms | 181 MB | 1 |
| wkhtmltopdf | 1 | 2.34/s | 422 ms | 478 ms | 147 MB | 3 |
| wkhtmltopdf | 4 | 8.97/s | 443 ms | 484 ms | 293 MB | 10 |
| wkhtmltopdf | 8 | 16.03/s | 486 ms | 526 ms | 482 MB | 18 |
| wkhtmltopdf | 16 | 24.09/s | 635 ms | 743 ms | 827 MB | 34 |
| Aspose.HTML | 1 | 10.37/s | 80 ms | 181 ms | 235 MB | 1 |
| Aspose.HTML | 4 | 33.48/s | 119 ms | 144 ms | 293 MB | 1 |
| Aspose.HTML | 8 | 33.98/s | 227 ms | 299 ms | 334 MB | 1 |
| Aspose.HTML | 16 | 33.37/s | 469 ms | 581 ms | 398 MB | 1 |
Tested on: 24-core / 32-thread x64 desktop CPU · 3.2 GHz · 64 GB RAM · Windows 11 x64 · .NET 10 · IronPDF (2026.8.1) · last verified September 2026
Among engines that rendered the document correctly, IronPDF led at all tested concurrency levels, with its advantage increasing under higher loads. At concurrency 1 the 3 correct renderers ranged from 4.85 to 9.22 renders per second, a 1.9x difference. At concurrency 8 they ranged from 15.60 to 44.02, a 2.8x difference. The gap widens with load, which is what separates an in-process engine from 2 that must move every page through a browser they do not host.
Most engines also have a knee, a level past which throughput stops rising and only latency grows. IronPDF's is at 8, where 44.02/s becomes 40.16/s at 16 while p50 rises from 161 ms to 364 ms, so a semaphore holding it at 8 keeps the throughput without paying the added latency. PuppeteerSharp is flat from 8 onward, 15.60/s to 15.68/s, while p50 climbs from 507 ms to 997 ms across 40 processes, which is latency bought with nothing. Aspose.HTML flattens even earlier, gaining nothing between 4 and 16. HtmlRenderer turns earliest of all, at 4, which is what a single-process library does once the work exceeds what one core can schedule. iText 9, Playwright and wkhtmltopdf were all still gaining at 16 and had not reached a knee inside the range tested, though Playwright's 21.31/s there is below what IronPDF sustained at 4.
Extrapolating single-render timings by concurrency consistently overestimates actual throughput, with the degree varying by engine. At concurrency 8, IronPDF achieves 60% of its extrapolated throughput, iText 53%, Playwright 44%, and PuppeteerSharp 40%.
The same peaks as the sweep table, arranged so one library reads down a column. These values set container size.
| Library | Peak at 1 | Peak at 4 | Peak at 8 | Peak at 16 | MB per sustained render/s at 8 | Rendered correctly |
|---|---|---|---|---|---|---|
| IronPDF | 750 MB | 850 MB | 1,187 MB | 1,770 MB | 27.0 | Yes |
| Playwright .NET | 511 MB | 750 MB | 1,122 MB | 1,808 MB | 54.3 | Yes |
| PuppeteerSharp | 584 MB | 890 MB | 1,293 MB | 2,094 MB | 82.9 | Yes |
| iText 9 pdfHTML | 174 MB | 264 MB | 332 MB | 535 MB | 6.1 | No |
| HtmlRenderer + PdfSharp | 153 MB | 157 MB | 166 MB | 181 MB | 0.5 | No |
| wkhtmltopdf | 147 MB | 293 MB | 482 MB | 827 MB | 30.1 | No |
| Aspose.HTML | 235 MB | 293 MB | 334 MB | 398 MB | 9.8 | No |
Tested on: 24-core / 32-thread x64 desktop CPU · 3.2 GHz · 64 GB RAM · Windows 11 x64 · .NET 10 · IronPDF (2026.8.1) · last verified September 2026
Peak memory alone can favor engines that perform less work, which is addressed by the final column. Dividing peak memory by sustained throughput yields the memory cost per render per second. Among engines that rendered the document correctly, IronPDF is the most efficient at 27.0 MB, compared to 54.3 MB for Playwright and 82.9 MB for PuppeteerSharp.
Absolute peak memory rankings differ. Playwright holds the lower peak at concurrency 1, 4 and 8, by 239 MB, 100 MB and 65 MB, and gives that lead back at 16, where IronPDF peaks at 1,770 MB against Playwright's 1,808 MB. At 8, where the lead is real, it delivers 20.68 renders per second against IronPDF's 44.02, so the 65 MB it saves costs more than half the throughput.
Layout-engine libraries have significantly lower memory usage due to the absence of a browser engine. While this is a real advantage, in this test it resulted in totals remaining at 0.00.
For the 3 Chromium-driving engines, peak memory increases by 49% to 62% between 8 and 16 concurrent renders, without a corresponding increase in throughput. IronPDF's throughput drops by 9%, while PuppeteerSharp is flat and Playwright gains 3%. Median latency (p50) rises by 1.9 to 2.3 times over the same step. Additional memory beyond 8 concurrent renders produces latency rather than throughput.
Every output was read back rather than trusted. The check extracts the text layer, matches the invoice total with a regular expression, and rasterises every page, because a canvas chart has no text layer and cannot be confirmed from text alone.
using System;
using System.IO;
using System.Linq;
using System.Text.RegularExpressions;
using IronPdf;
// Reads each engine's output back and reports what actually landed on the page.
// A render that finishes in 109 ms and gets the total wrong is not faster than
// one that finishes in 164 ms and gets it right - it is a different operation,
// so the timer alone cannot be trusted.
string resultsDir = "results";
Console.WriteLine($"{"Engine",-16} {"Pages",5} {"Bytes",8} {"Total",-12} Notes");
Console.WriteLine(new string('-', 62));
foreach (string path in Directory.GetFiles(resultsDir, "*-single.pdf").OrderBy(p => p))
{
string engine = Path.GetFileNameWithoutExtension(path).Replace("-single", "");
using PdfDocument document = PdfDocument.FromFile(path);
string flat = Regex.Replace(document.ExtractAllText() ?? "", @"\s+", " ");
// The document computes its totals in JavaScript. If the script never ran,
// the placeholder zero survives into the text layer of the PDF.
Match total = Regex.Match(flat, @"Total\s+([\d,]+\.\d{2})");
string reported = total.Success ? total.Groups[1].Value : "not found";
bool scriptRan = reported != "0.00" && total.Success;
// The canvas chart has no text layer, so rasterise page two as well and
// confirm it by eye. A missing chart cannot be detected from text alone.
document.RasterizeToImageFiles(Path.Combine(resultsDir, engine + "-page_*.png"), 1400, 1980);
long bytes = new FileInfo(path).Length;
string note = scriptRan ? "" : "JavaScript did not run";
if (!flat.Contains("Professional services")) note += " | table rows missing";
Console.WriteLine($"{engine,-16} {document.PageCount,5} {bytes,8} {reported,-12} {note}");
}
// Output size is a fast tell, but not a sufficient one. Identical HTML produced
// 46 to 104 KB from the engines that ran the script and drew the chart, so the
// 6 KB output is missing content rather than encoding it more cleverly. It cuts
// the other way too: one engine dropped the masthead, the totals and the chart
// and still produced 46 KB, so size narrows the question without answering it.| Library | Pages | Output size | Invoice total | Chart | Masthead and layout |
|---|---|---|---|---|---|
| IronPDF | 2 | 47,196 bytes | 2313.30 | Drawn | Grid intact |
| Playwright .NET | 2 | 46,248 bytes | 2313.30 | Drawn | Grid intact |
| PuppeteerSharp | 2 | 104,011 bytes | 2313.30 | Drawn | Grid intact |
| iText 9 pdfHTML | 2 | 6,145 bytes | 0.00 | Absent | Grid collapsed to 1 column |
| HtmlRenderer + PdfSharp | 1 | 46,419 bytes | Block absent | Absent | Masthead dropped, page break lost |
| wkhtmltopdf | 2 | 22,752 bytes | 0.00 | Absent | Grid collapsed to 1 column |
| Aspose.HTML | 2 | 38,780 bytes | 0.00 | Absent | Grid collapsed to 1 column |
Tested on: 24-core / 32-thread x64 desktop CPU · 3.2 GHz · 64 GB RAM · Windows 11 x64 · .NET 10 · IronPDF (2026.8.1) · last verified September 2026
The same page from all 7, at the same scale. The first 3 panels computed the total. The other 4 are the ones a reviewer would sign off on without noticing.
Output file size is a rough indicator of rendering completeness, and a fallible one. The 3 engines that executed the script and rendered the chart produced files between 46 and 104 KB, and iText 9's 6 KB output is missing content rather than better compressed. The heuristic fails in the other direction on HtmlRenderer, whose 46 KB file falls within the same range as the correct outputs while missing the masthead, the totals and the chart entirely, so file size is a useful check rather than a conclusive one. None of these failures raise exceptions or warnings, and every one of those PDFs is well-formed and wrong.
The 4 engines that failed to compute the total did so for different reasons. A targeted test page reporting separately on ES5 and ES6 support revealed 3 distinct categories.
| Engine | ES5 | ES6 | Effect on the test invoice |
|---|---|---|---|
| IronPDF, PuppeteerSharp, Playwright | Runs | Runs | Totals computed, chart drawn |
| wkhtmltopdf, Aspose.HTML | Runs | Throws | Totals left at zero, no chart |
| iText 9 pdfHTML, HtmlRenderer | No engine | No engine | iText left the placeholder zeros, HtmlRenderer dropped the block; no chart in either |
Tested on: 24-core / 32-thread x64 desktop CPU · 3.2 GHz · 64 GB RAM · Windows 11 x64 · .NET 10 · IronPDF (2026.8.1) · last verified September 2026
This distinction is important when selecting a library. wkhtmltopdf and Aspose.HTML execute scripts written to an ES5 baseline and compute correct results, but do not support document.querySelectorAll(...).forEach, as used in the test page. iText 9 and HtmlRenderer do not execute JavaScript at any language level.
Note: Chrome's rendering is used as the reference, which inherently favors Chromium-based libraries. While this is a known limitation, it remains appropriate for most scenarios, as matching browser output is typically required.
A benchmark you cannot re-run is an assertion. Everything behind the tables above is in 1 archive, including the parts that make the numbers checkable rather than quotable.
Download the benchmark bundle (282 KB)
| Folder | What it holds |
|---|---|
| harness/ | The complete runnable project: engine adapters, concurrency sweep, cold-start driver, memory sampler, fidelity check, and the scripts that run 5 passes and take the median |
| fixture/invoice.html | The exact input, 10,260 characters, byte for byte what all 7 engines were handed |
| raw-timings/ | 35 result files, 7 engines across 5 passes, with every per-level throughput, p50, p95, peak memory and process count, plus the computed medians |
| outputs/ | The PDF each engine produced from that fixture, so the accuracy claims can be opened rather than believed |
To reproduce: dotnet build -c Release, then ./run-isolated.sh 1 2 3 4 5, then python median-iso.py. Run a single engine with --engine <id> while you are iterating, because that is the only way the memory figures stay honest.
3 things are deliberately not in the archive. Licence keys, since IronPDF reads IRONPDF_LICENSE_KEY from the environment and Aspose.HTML expects its own .lic file, and both engines ran under commercial licences here. The wkhtmltopdf.exe binary, which is a third-party artifact from that project's archived releases. And the browsers, which PuppeteerSharp and Playwright each download on first run.
The benchmark considers a single question regarding the speed and accuracy with which 7 engines convert the same invoice. In practice, production pipelines have additional requirements. The next section provides answers to frequently asked follow-up questions.
All figures above were obtained on Windows 11 running on bare metal. Factors such as container CPU limits, cgroup memory accounting, and shared hosts can affect concurrency. IronPDF operates on Linux and in Docker using the same NuGet package, with Chromium included, so there is no need for a separate browser download or Playwright installation. Size your container based on peak usage at your intended concurrency, and add additional capacity for the runtime.
The benchmark provided each engine with an in-memory string to eliminate network latency from the results. In production, the input is often a URL, and converting a URL to PDF typically requires only a method change on the same renderer. The layout engines tested here do not support this directly. iText 9 and HtmlRenderer accept only markup, so you must fetch the page and set a base URL to resolve relative paths.
The test invoice uses a web-safe Latin font stack to exclude font coverage from the timing results. Renderers differ most with non-Latin scripts, but the solution is consistent. Specify fonts explicitly rather than relying on inheritance. Embed fonts using @font-face or install the required font package in your image, and consult the font handling guide for embedding rules. Chromium-based engines provide the same shaping and fallback behavior as browsers.
These results reflect peak readings from processing a batch of 2-page invoices, not larger documents or long-duration tests. Longer or image-heavy documents will require more memory. For sustained workloads, use bounded concurrency. Limit in-flight renders with a semaphore, reuse a single renderer instance instead of creating one per request, and render asynchronously so throughput is limited only by the concurrency cap. The batch processing tutorial provides a complete guide.
This is the stage at which the disparity between solutions increases rather than diminishes. The benchmark evaluated a single operation, specifically rendering, which represents the primary function of the free engines. However, the majority of document processing pipelines require additional capabilities beyond this point.
The 2 engines with the highest throughput achieved this by not including a browser, but the resulting documents reflected this limitation. iText 9 returned an amount due of 0.00, and HtmlRenderer omitted the totals block entirely. Aspose.HTML reached the same result with its own layout engine, and wkhtmltopdf with a QtWebKit build too old to execute the page. This approach works only when the markup is static and does not require dynamic computation, charts, calculated totals, or modern layouts. When these features are present, the benchmark results demonstrate the limitations.
The default, for anything that has to come out right: IronPDF. It rendered the document correctly at 44.02 renders per second, 2.1 times Playwright and 2.8 times PuppeteerSharp on identical hardware, reached a first PDF in 486 ms, and returned the most work per megabyte of the 3 engines that reproduced the invoice at all. Chromium ships inside the package, so there is no browser to install, supervise or patch, and merging, forms, signatures, PDF/A and encryption are in the same library rather than the next one.
Each of the other 6 has a specific limitation, set out below.
Playwright .NET produces Chrome-grade output and costs nothing to licence, at 20.68 renders per second against 44.02. The licence is not the only cost. You maintain the browser binaries in your image, the playwright install chromium step in your build, a process pool that reaches 23 processes under load, and Chromium patching for the life of the service.
PuppeteerSharp reproduced the document too, at 15.60 renders per second, and spawns the most processes of anything measured here, 40 at 16 concurrent. Its p50 doubles from 507 ms to 997 ms over that same step while throughput stays flat, so those additional processes add latency rather than capacity.
iText 9 with pdfHTML is quick, at 54.30 renders per second, and the invoice it returned reads 0.00 where the total belongs. It has no JavaScript engine at any language level, so that result is not a configuration problem to solve. It is AGPL or commercial, so for most teams it is a paid library that still cannot run the page.
HtmlRenderer with PdfSharp is the fastest thing in the benchmark, at 327.09 renders per second, and the fastest to a first PDF at 157 ms. Its output dropped the masthead, the totals block and the chart, and compressed 2 pages onto 1. Its CSS support stops around 2011, so the speed is what you get for not laying out the page.
wkhtmltopdf runs an engine archived in January 2023, last released in June 2020, on Qt 4.8.5. It executes ES5 and throws on ES6, which is why the total read 0.00, and it receives no security patches. If it renders your current templates correctly it will keep doing that until the templates change.
Aspose.HTML is a paid library with no free tier that produced the same 0.00 total and missing chart as the other layout engines, and took 1,096 ms to a first PDF, the slowest measured. Its case is procurement, not rendering.
For dashboards, charts, or anything computed at load time: a browser-grade engine is the only category that worked, and IronPDF is the one in that category you do not have to operate.
The PDF is captured before the JavaScript has finished drawing. The fault reproduces reliably in development and intermittently under production load, which makes it difficult to diagnose.
Wait on a condition rather than a fixed duration. Every browser-based library can hold the render until a condition is met, whether that condition is network inactivity, a named element appearing, or a JavaScript expression returning true. Prefer the element, because a charting library finishes downloading well before it finishes drawing.
// IronPDF 2026.8.1 - waiting for the page to finish drawing itself.
using IronPdf;
var renderer = new ChromePdfRenderer();
// Waiting for a specific element beats waiting for the network, because a chart
// library can finish downloading well before it finishes rendering.
renderer.RenderingOptions.WaitFor.HtmlElementById("chart-ready", maxWaitTimeInMilliseconds: 10000);
// A JavaScript condition works too when there is no element to key on.
// renderer.RenderingOptions.WaitFor.JavaScript(5000);
using PdfDocument pdf = renderer.RenderHtmlAsPdf(html);
pdf.SaveAs("dashboard.pdf");The majority of CSS rendering issues can be attributed to 4 principal causes.
A common oversight is the @media print block in the stylesheet, which only applies during print rendering and does not appear in the browser. Set the CSS media type explicitly using RenderingOptions.CssMediaType to ensure the correct stylesheet is applied, rather than relying on the default.
The second issue is backgrounds and colors not appearing, as browsers often omit them during printing to conserve ink. Enable RenderingOptions.PrintHtmlBackgrounds = true to restore them, and use print-color-adjust: exact in the CSS for elements that remain unaffected.
The remaining 2 causes relate to timing. Images may still be lazy-loading when the snapshot is taken, or web fonts may not have loaded, causing text to fall back to a system font and altering the layout. Address these issues by ensuring all resources have loaded before rendering.
When rendering from a string, there is no base location, so the renderer cannot resolve relative paths such as /images/logo.png. This is the most common issue with string input and can be resolved with a single configuration.
Set a base URL or base path before rendering. For IronPDF, use RenderingOptions.BaseUrlOrPath. For iText, use ConverterProperties.SetBaseUri. Alternatively, use absolute URLs throughout the document. Refer to the base URLs guide for information on asset encoding, which may be necessary once relative paths are resolved.
There are 3 main causes to check. First, required fonts may not be installed in the image. Second, a native dependency may be missing. Third, the browser may not have been downloaded during the image build and cannot be fetched at runtime.
Missing fonts are difficult to diagnose because no error is reported. The PDF renders, but text appears as empty boxes. Install the necessary font packages instead of troubleshooting the rendering code. For browser downloads, embedded engines such as IronPDF's Chromium include the browser in the package, eliminating the need for a first-run download that could fail due to network restrictions.
This issue shares the same root cause as above, but presents as a specific symptom. The required font for a particular script is missing from the container. Languages such as Thai, Arabic, and CJK are most affected, as minimal base images often lack coverage for these scripts.
Embed the faces in the document with @font-face and the font files, or install the packages in the image. Do not rely on the base image's default set, which changes between versions. The font handling guide has the embedding details.
The common failure is a configuration that works locally and fails in the container. Most cases are covered by 3 fixes.
Download the browser at build time, not first run: If your image does not include Chromium, the first request after deployment triggers a 150 MB download, or fails outright if egress is blocked.
Install the fonts and native dependencies you need: Slim base images ship a minimal font set. Any document beyond Latin script requires additional font packages.
Do not disable the sandbox: Passing --no-sandbox resolves the error by running Chrome as root with sandboxing off. Instead, configure a non-root user with a seccomp profile.
# IronPDF on Linux. The engine ships in the NuGet package, so there is no
# browser download at first run and no Chromium to supervise.
FROM mcr.microsoft.com/dotnet/aspnet:10.0 AS base
WORKDIR /app
# Chromium's Linux dependencies plus fonts. Slim base images carry neither, and
# a missing font produces empty boxes rather than an error.
RUN apt-get update && apt-get install -y --no-install-recommends \
libnss3 libatk-bridge2.0-0 libgbm1 libasound2 libxshmfence1 \
fonts-liberation fonts-noto-core fonts-noto-cjk \
&& rm -rf /var/lib/apt/lists/*
FROM mcr.microsoft.com/dotnet/sdk:10.0 AS build
WORKDIR /src
COPY ["InvoiceService.csproj", "./"]
RUN dotnet restore "InvoiceService.csproj"
COPY . .
RUN dotnet publish "InvoiceService.csproj" -c Release -o /app/publish
FROM base AS final
WORKDIR /app
COPY --from=build /app/publish .
# Run as a non-root user rather than reaching for --no-sandbox.
RUN useradd --create-home --shell /usr/sbin/nologin renderer \
&& chown -R renderer:renderer /app
USER renderer
ENV IRONPDF_LICENSE_KEY=""
ENTRYPOINT ["dotnet", "InvoiceService.dll"]Resource allocation should be determined based on the peak memory usage observed at the intended concurrency level. Additional capacity should be included to accommodate runtime overhead and application requirements. It is advisable to select an instance size that exceeds these combined estimates to ensure reliable performance.
| Library | Peak tree at 8 concurrent | Realistic container | Renders/sec sustained | Rendered correctly |
|---|---|---|---|---|
| IronPDF | 1,187 MB | 2 GB | 44.02 | Yes |
| Playwright .NET | 1,122 MB | 2 GB | 20.68 | Yes |
| PuppeteerSharp | 1,293 MB | 2 GB | 15.60 | Yes |
| iText 9 pdfHTML | 332 MB | 1 GB | 54.30 | No |
| HtmlRenderer + PdfSharp | 166 MB | 512 MB | 327.09 | No |
| wkhtmltopdf | 482 MB | 1 GB | 16.03 | No |
| Aspose.HTML | 334 MB | 1 GB | 33.98 | No |
Tested on: 24-core / 32-thread x64 desktop CPU · 3.2 GHz · 64 GB RAM · Windows 11 x64 · .NET 10 · IronPDF (2026.8.1) · last verified September 2026
The comparative memory figures presented in the final column provide clarity on resource requirements. All 3 correct rendering engines operated within a 2 GB container, which positions throughput as the critical differentiator rather than memory consumption. Their throughput ranged from 16 to 44 renders per second, meaning that selecting PuppeteerSharp over IronPDF would require nearly 3 times the infrastructure for equivalent output. Marginal differences in peak memory, such as the 65 MB gap between Playwright and IronPDF, do not materially affect instance selection, whereas throughput disparities have a significant effect on operational cost.
2 things change these figures for your own environment. Document shape is one. A 200-page statement, or a document carrying many high-resolution images, raises peak memory well above what a 2-page invoice needs. Where you measure is the other. Run the test inside the container you will deploy to, because a multi-core workstation and a virtualised instance schedule concurrent work differently.
What is the best HTML to PDF library for C#? Based on these measurements, IronPDF was the quickest engine to render the document correctly, at 44.02 renders per second versus 20.68 for Playwright and 15.60 for PuppeteerSharp, and it returned the most work per megabyte of the 3.
How do I convert a URL to PDF in C#?
Every browser-based library here takes a URL directly. Pass it instead of an HTML string and the rest of your code is unchanged. The layout-engine libraries, iText 9 and HtmlRenderer, do not. Fetch the HTML with HttpClient, pass the string, and set a base URL so relative assets resolve.
Which libraries support JavaScript? There are 3 levels of support. IronPDF, PuppeteerSharp and Playwright run modern JavaScript in full. wkhtmltopdf and Aspose.HTML run ES5 but throw on ES6, so a modern script fails silently and leaves placeholder values in the output. iText 9 and HtmlRenderer have no JavaScript engine at all.
Can I convert HTML to PDF without a headless browser? Yes. iText 9, Aspose.HTML, and HtmlRenderer with PdfSharp all have their own layout engines and need no browser. The trade-off is JavaScript execution and modern CSS support.
How do I convert a Razor view to PDF in ASP.NET Core?
Render the view to a string first, then pass that string to any library here. The common failure is relative asset paths, because once the HTML is a string, /css/site.css has nothing to resolve against, so set a base URL or use absolute paths. The Razor-to-PDF guide covers the MVC and Blazor variants.
Is wkhtmltopdf still usable in 2026? It works, but it is archived. The last stable release is wkhtmltopdf (0.12.6) from June 2020 on Qt (4.8.5), and the repository was archived in January 2023. It will not render modern CSS and it receives no security patches.
Why does my PDF look different from the browser?
Usually a @media print block, backgrounds not printing without print-color-adjust, images still lazy-loading, or a web font that had not arrived when the snapshot was taken.
Which library is fastest? HtmlRenderer with PdfSharp at 327 renders per second, on output that was a single page with no masthead, no totals and no chart. Among engines that rendered the document correctly, IronPDF was fastest at 44.02 renders per second.
How much memory does HTML to PDF conversion need? Between 166 MB and 1,293 MB at 8 concurrent renders. Browser-based options are heavier, and much of that memory sits in child processes, so size a container from the whole process tree rather than the .NET process alone.
No single approach excels in every area. Browser-based libraries reproduce modern pages accurately but require more memory and larger containers. Layout-engine libraries are faster and smaller but do not execute JavaScript, which left 4 of the 7 measured outputs without a computed total for this invoice. The best choice depends on your primary constraints.
If accurate rendering without managing a browser process is your primary requirement, IronPDF was the fastest correct renderer measured here. Its API also supports HTML string conversion, Razor views, responsive CSS, custom margins and paper sizes, asynchronous rendering, PDF/A archiving, and digital signatures without requiring an additional library. For high-volume use, refer to the batch processing tutorial for concurrency patterns, and consult the C# HTML to PDF library comparison for broader library selection.
Where to go next, in the order most people need it. Start with the HTML to PDF tutorial for the full walkthrough, then the runnable HTML to PDF examples for code you can paste. The free 30-day trial runs the templates above against your own documents, and the licence terms cover what you can ship against the AGPL and MIT terms measured here.
Download IronPDF to start. If your numbers differ from these, or you want a second opinion on sizing for your workload, reach out to our engineering support team. IronPDF is built by Iron Software, whose .NET libraries also cover OCR, barcodes, Word, and Excel.
Curtis Chau holds a Bachelor’s degree in Computer Science (Carleton University) and specializes in front-end development with expertise in Node.js, TypeScript, JavaScript, and React. Passionate about crafting intuitive and aesthetically pleasing user interfaces, Curtis enjoys working with modern frameworks and creating well-structured, visually appealing manuals.
IronPDF is a part of IRONSUITE
10 .NET API products for your office documents
When you need your PDF to look like HTML, fast.
