How to Merge PDF Byte Arrays in C#

Why Can't You Just Concatenate PDF Byte Arrays?

Simply concatenating two PDF byte arrays will not work. Unlike plain text files, PDF files have complex internal structures with headers, cross-reference tables, and specific formatting conventions. The ISO 32000 PDF specification defines intricate rules about document structure, including metadata, font embedding, and encryption layers. Joining the bytes directly produces a corrupt file. You need a proper PDF library to parse those byte arrays and combine them correctly while preserving all structural integrity.

IronPDF handles all this complexity internally. You can merge PDF documents with just a few lines of code while preserving fonts, images, and formatting exactly as they appeared in the source files.

When Should You Use Byte Array Merging?

This approach works well when:

• Documents are stored in a SQL Server or PostgreSQL database as binary columns
• Your application receives PDF data from an external API or microservice
• You are processing file uploads in ASP.NET without saving them to disk
• You are running in a cloud environment like Azure Functions or AWS Lambda where temporary file storage is restricted

When working with Azure Blob Storage or similar cloud services, byte array manipulation becomes essential because you download the raw bytes, process them, and upload the result -- all without touching the file system.

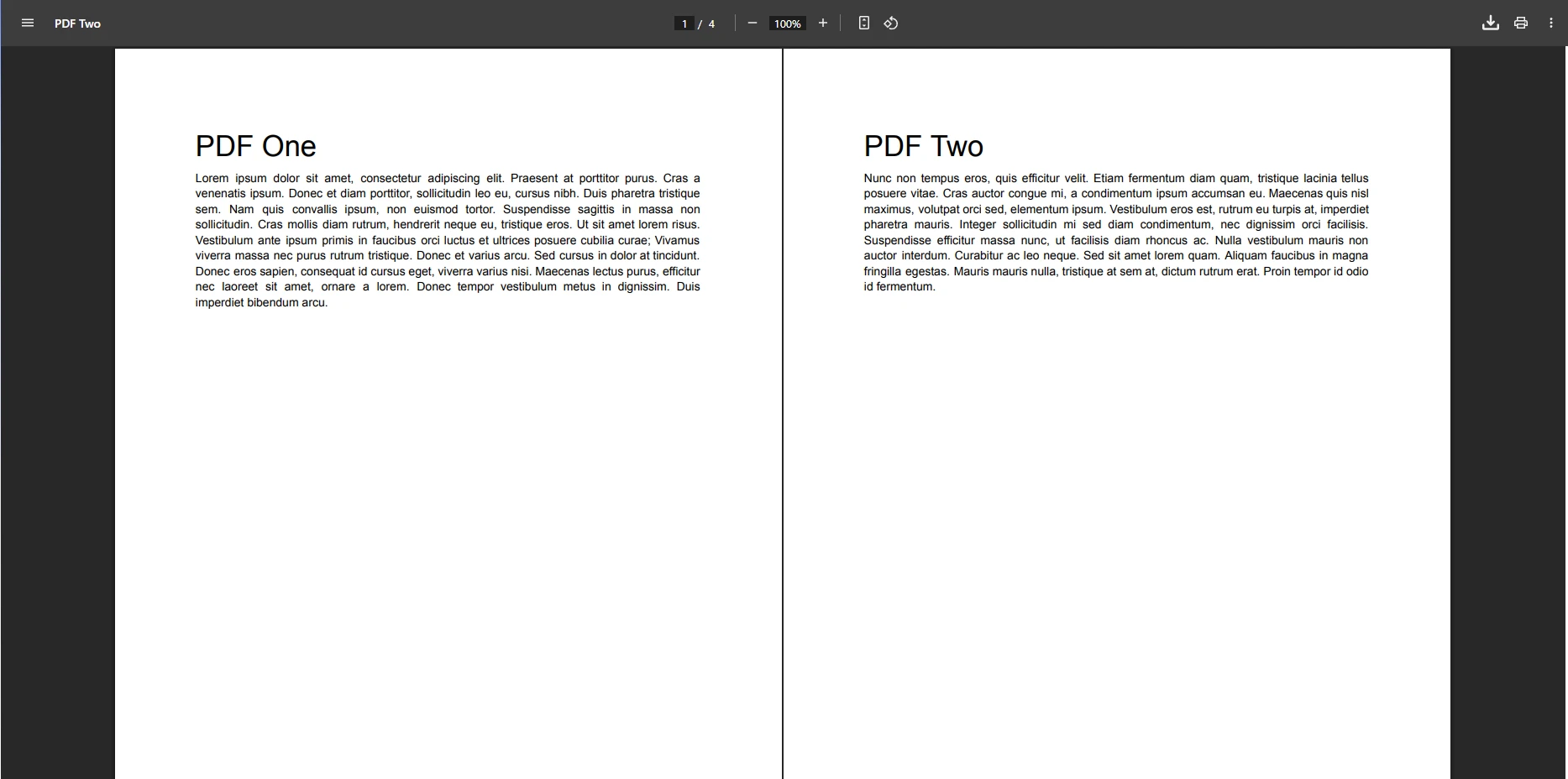

What Does the Merged Output Look Like?

The output is a single PDF containing all pages from both source documents in the order they were passed to Merge(). Page numbering, fonts, images, and embedded content are all preserved. The merged document behaves identically to any other PDF -- you can paginate, annotate, sign, or compress it using the same IronPDF methods you would apply to any document.

How Does the Merge Process Work Internally?

When you pass a byte array to the PdfDocument constructor, IronPDF parses the binary data and builds an in-memory representation of the PDF structure. The PdfDocument.Merge() method then combines multiple documents by appending pages from each source in sequence, rebuilding the cross-reference table, and resolving any font or resource name conflicts between documents.

This is why you cannot simply concatenate byte arrays -- the cross-reference table in the first PDF points to offsets within that file. After concatenation, those offsets are invalid because the second file has shifted them. IronPDF rebuilds the entire structure correctly, resulting in a valid, well-formed PDF.

When Should You Use MemoryStream for PDF Merging?

The MemoryStream approach gives you more control when integrating with other .NET libraries that work with streams rather than byte arrays. It is also useful when you already have a stream available (for example, from an HTTP response or a blob storage SDK):

using (var stream1 = new MemoryStream(pdfBytes1))
using (var stream2 = new MemoryStream(pdfBytes2))
{
    var pdf1 = new PdfDocument(stream1);
    var pdf2 = new PdfDocument(stream2);

    var merged = PdfDocument.Merge(pdf1, pdf2);

    // Add metadata to the merged document
    merged.MetaData.Author = "Your Application";
    merged.MetaData.Title = "Merged Document";
    merged.MetaData.CreationDate = DateTime.Now;

    byte[] result = merged.BinaryData;
}

using (var stream1 = new MemoryStream(pdfBytes1))
using (var stream2 = new MemoryStream(pdfBytes2))
{
    var pdf1 = new PdfDocument(stream1);
    var pdf2 = new PdfDocument(stream2);

    var merged = PdfDocument.Merge(pdf1, pdf2);

    // Add metadata to the merged document
    merged.MetaData.Author = "Your Application";
    merged.MetaData.Title = "Merged Document";
    merged.MetaData.CreationDate = DateTime.Now;

    byte[] result = merged.BinaryData;
}

You can enrich the merged document by setting metadata, adding watermarks, or applying digital signatures before extracting the final bytes. For compliance scenarios, consider PDF/A conversion for long-term archival or PDF/UA compliance for accessibility requirements.

Stream-based processing provides better memory management for larger PDF files and integrates cleanly with cloud storage SDKs. This approach is especially practical for async patterns in high-throughput services.

What Makes the Database Pattern Effective?

The pattern above works for invoices, reports, contracts, or any documents stored as binary columns. Key advantages:

• No temporary files: The entire workflow happens in memory, which avoids file system access and reduces attack surface.
• Graceful skipping: Invalid or missing records do not abort the entire merge -- they are logged and skipped.
• Enrichment before saving: Adding footers or metadata to the merged document happens before the final byte array is extracted, so the result is complete and ready to use.
• Single database write: The merged result is written once, keeping database transactions simple.

What Are the Most Common Error Scenarios?

When building PDF merge workflows, several failure modes are worth guarding against:

1. Null or empty byte arrays: The most common issue. Always check pdfData != null && pdfData.Length > 0 before constructing a PdfDocument.
2. Corrupt or invalid PDF data: If the byte array was truncated during database storage or API transmission, the constructor will throw. Wrap in a try-catch and log the document ID.
3. Encrypted PDFs without passwords: Attempting to merge a password-protected PDF without supplying the password throws an exception. Use IronPDF's password-protected PDF handling to supply credentials.
4. Memory pressure with many large files: Loading dozens of large PDFs simultaneously can strain available memory. Process them in batches and dispose of PdfDocument objects after merging.

Here is a reliable pattern with input validation:

public bool TryMergePdfByteArrays(byte[] pdfBytes1, byte[] pdfBytes2, out byte[] mergedBytes)
{
    mergedBytes = null;

    try
    {
        if (pdfBytes1 == null || pdfBytes1.Length == 0)
            throw new ArgumentException("First PDF byte array is null or empty");

        if (pdfBytes2 == null || pdfBytes2.Length == 0)
            throw new ArgumentException("Second PDF byte array is null or empty");

        using var pdf1 = new PdfDocument(pdfBytes1);
        using var pdf2 = new PdfDocument(pdfBytes2);

        if (pdf1.PageCount == 0)
            throw new InvalidOperationException("First PDF has no pages");

        if (pdf2.PageCount == 0)
            throw new InvalidOperationException("Second PDF has no pages");

        var mergedPdf = PdfDocument.Merge(pdf1, pdf2);
        mergedBytes = mergedPdf.BinaryData;

        return true;
    }
    catch (Exception ex)
    {
        Console.WriteLine($"PDF merge failed: {ex.Message}");
        return false;
    }
}

public bool TryMergePdfByteArrays(byte[] pdfBytes1, byte[] pdfBytes2, out byte[] mergedBytes)
{
    mergedBytes = null;

    try
    {
        if (pdfBytes1 == null || pdfBytes1.Length == 0)
            throw new ArgumentException("First PDF byte array is null or empty");

        if (pdfBytes2 == null || pdfBytes2.Length == 0)
            throw new ArgumentException("Second PDF byte array is null or empty");

        using var pdf1 = new PdfDocument(pdfBytes1);
        using var pdf2 = new PdfDocument(pdfBytes2);

        if (pdf1.PageCount == 0)
            throw new InvalidOperationException("First PDF has no pages");

        if (pdf2.PageCount == 0)
            throw new InvalidOperationException("Second PDF has no pages");

        var mergedPdf = PdfDocument.Merge(pdf1, pdf2);
        mergedBytes = mergedPdf.BinaryData;

        return true;
    }
    catch (Exception ex)
    {
        Console.WriteLine($"PDF merge failed: {ex.Message}");
        return false;
    }
}

The using statements ensure that PdfDocument objects are disposed correctly, releasing unmanaged resources even if an exception occurs. The TryXxx pattern returns a boolean success indicator rather than throwing, making it easy to call from higher-level code that handles multiple documents.

How Can You Prevent Common Mistakes?

Several habits reduce the risk of production failures:

• Validate before loading: Check that byte arrays are non-null and have a minimum plausible length (PDF headers are at least a few hundred bytes).
• Use using for disposal: IronPDF documents hold native resources. Always dispose them, either with using statements or explicit Dispose() calls.
• Enable custom logging: Log the document ID, byte array length, and page count whenever merging documents from a database. This makes debugging production issues far easier.
• Handle encrypted PDFs explicitly: Check whether a document requires a password before merging. Attempting to read an encrypted document without credentials throws an exception rather than returning empty pages.
• Set timeouts for complex documents: Very large or complex PDFs can take time to process. Consider async operations and appropriate timeout values for high-volume scenarios.
